News

Filter by year

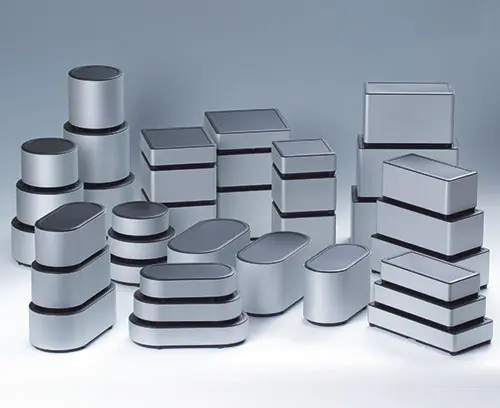

Synergy extruded aluminium enclosures
July 2014

SYNERGY - ADVANCED EXTRUDED ALUMINIUM ENCLOSURES

For the first time ever, OKW has combined aluminium with plastic to produce a harmonious blend of materials in its advanced new range of enclosures. Synergy is available in 36 different models from launch. These beautiful new housings feature an extruded aluminium case profile, which has a very high quality surface finish. The plastic top and base parts are assembled by internal fixing pillars. The top is recessed for a keypad and the base includes a battery compartment lid. Separate battery cradles for 2, 3, or 5 AA cells are available. The base is inset for fitting cables up to ø3mm through the underside. Four case shapes are offered; round, square, rectangular and oval. The plastic parts are flame retardant (UL 94 V-0) and UV stable. A wall mounting kit is also offered. Synergy enclosures can be supplied fully customised. Different heights can also be accommodated.

View SYNERGY range >>

Datec-Compact IP65 handheld enclosures
May 2014

DATEC-COMPACT - OUTDOOR IP65 HANDHELD ENCLOSURES

DATEC-COMPACT is our latest range of modern and ergonomic handheld enclosures which have been designed for tough outdoor applications. The material is ASA + PC-FR (UL 94 V-0) which is strong, flame retardent and resistant to ultraviolet radiation when frequently used outdoors. DATEC-COMPACT cases are available in two standard colours: off-white, RAL 9002 and lava grey. All models are a supplied with a pre-moulded IP 65 sealing gasket in the lid. Options include a 3 x 1.5V AA battery compartment, desk charging station, pre-fitted contacts for the station and wall holders. The launch model is size M (172 x 92 x 39 mm), sizes S and L will be available later in 2014.

View DATEC-COMPACT range >>

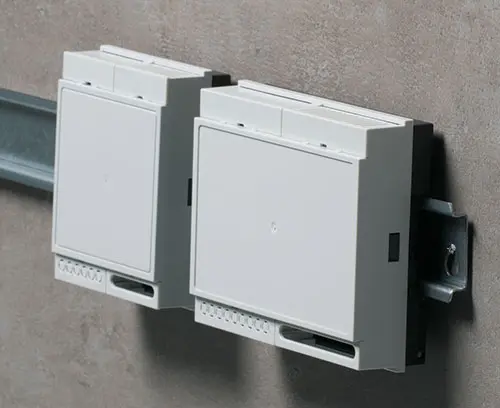

Low profile RAILTEC B din rail enclosures
April 2014

RAILTEC B - LOW PROFILE DIN RAIL ENCLOSURES

The new RAILTEC B low profile DIN rail enclosures have a flat full size top sections which is ideal for mounting controls and displays. The top section is recessed for fitting membrane keypads or product labels. Internal mounting pillars are provided inside the for mounting displays and PCBs. PCB terminal blocks and headers can be accomodated in the ends, and a range of terminal guards is available to suit different pitch sizes and arrangements. These new low profile models are available in standard widths of 2, 4, 6 and 9 modules. The DIN rail clip on the rear conforms to DIN EN 60715 TH35. The enclosures are moulded in flame retardant UL 94 V-0 rated PC and PPO.

View RAILTEC B range >>

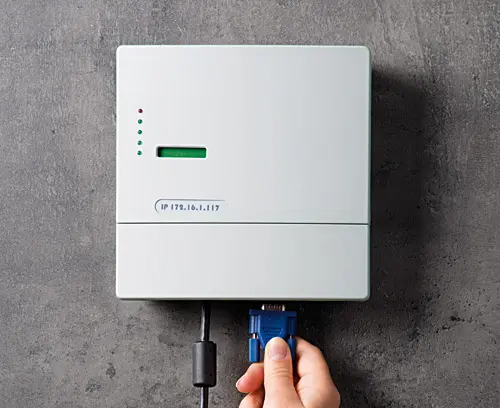

Netbox wall mount enclosures
January 2014

NET-BOX - SLEEK WALL MOUNT ENCLOSURES

Very modern and elegant housings for wall mounted control units, network nodes, medical devices, access control terminals and much more. Stylish curved top section which can be fitted with LEDs, displays and switches. Inset panel on the underside provides discreet mounting for all the connections i.e. RJ45, RS232, HDMI, USB, power inlets etc. The connectors and cables are hidden under the front lid.

View NETBOX range >>
