Accessories for enclosures
B5111307

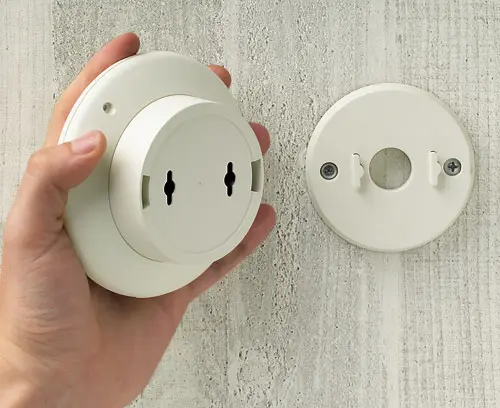

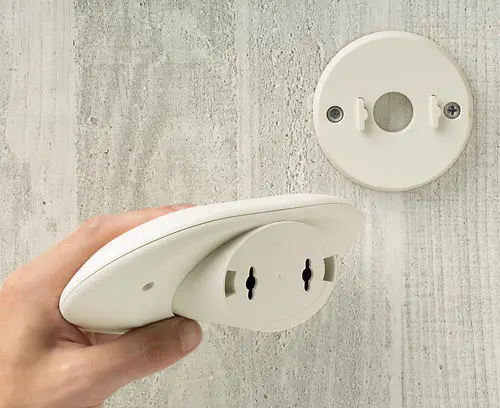

Wall mounting set
Suitable for all versions (except Euro Plug version), for secure wall mounting of the enclosures (machining lid/bases necessary).
SupplyWall mounting set, incl. safety screw
Generate Your PDF Datasheet for B5111307
Please select the product details you would like to include in the PDF.
Add to my basket
B5010007
Bottom and top part R110 F
Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.
Version Bottom part "level"
Supply 1 top and bottom part R110 F, assembly kit
B5010007
Bottom and top part R110 Fproduct added to your list
off-white RAL 9002
⌀110x30mm
B5010107
Bottom and top part R110 H
Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.
Version Bottom part "level"
Supply 1 top and bottom part R110 H, assembly kit
B5010107
Bottom and top part R110 Hproduct added to your list
off-white RAL 9002
⌀110x38mm
B5010207
Bottom and top part R110 F
Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.
Version Bottom part "inclined"
Supply 1 top and bottom part R110 F, assembly kit
B5010207
Bottom and top part R110 Fproduct added to your list
off-white RAL 9002
⌀110x38mm
B5010307
Bottom and top part R110 H
Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.
Version Bottom part "inclined"
Supply 1 top and bottom part R110 H, assembly kit
B5010307
Bottom and top part R110 Hproduct added to your list
off-white RAL 9002
⌀110x41mm
B5011117
Base
Assembly unit: suitable for all bottom parts. Spacer for ceiling / wall mounting. Easy to mount with bayonet lock. If required it can be additionally secured using the anti-rotation device (acc.). Locators for 2 x AA and strain relief (acc.) in the base.
Supply 1 base
B5011117
Baseproduct added to your list
off-white RAL 9002
B5011217
Base 30°
Assembly unit: suitable for all "inclined" bottom parts for ergonomically installation and assembly angles. Easy to mount with bayonet lock. If required it can be additionally secured using the anti-rotation device (acc.).
Supply 1 base 30°
B5011217
Base 30°product added to your list
off-white RAL 9002
B5011317
Base 55°
Assembly unit: suitable for all "inclined" bottom parts for ergonomically installation and assembly angles. Easy to mount with bayonet lock. If required it can be additionally secured using the anti-rotation device (acc.).
Supply 1 base 55°
B5011317
Base 55°product added to your list
off-white RAL 9002
B5011847
Lid
Assembly unit: suitable for all bottom parts, screw-down (not suitable for use with battery compartment).
Supply 1 lid, assembly kit
B5011847
Lidproduct added to your list
off-white RAL 9002
B5011857
Battery compartment lid
Assembly unit: suitable for all bottom parts when using battery compartment 2 x AAA (acc.), screw-down.
Supply 1 battery compartment lid, assembly kit
B5011857
Battery compartment lidproduct added to your list
off-white RAL 9002
B5012207
Bottom and top part S110F
Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30°or base 55°) required for bottom part - see separate article.
Version Bottom part "inclinded"
Supply 1 top and bottom part S110 F, assembly kit
B5012207
Bottom and top part S110Fproduct added to your list
off-white RAL 9002
110x110x38mm
B5015007
Bottom and top part O160 F
Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.
Version Bottom part "level"
Supply 1 top and bottom part O160 F, assembly kit
B5015007
Bottom and top part O160 Fproduct added to your list
off-white RAL 9002
160x110x30mm
B5015107
Bottom and top part O160 H
Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.
Version Bottom part "level"
Supply 1 top and bottom part O160 H, assembly kit
B5015107
Bottom and top part O160 Hproduct added to your list
off-white RAL 9002
160x110x38mm
B5015207
Bottom and top part O160 F
Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.
Version Bottom part "inclined"
Supply 1 top and bottom part O160 F, assembly kit
B5015207
Bottom and top part O160 Fproduct added to your list
off-white RAL 9002
160x110x38mm
B5015307
Bottom and top part O160 H
Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.
Version Bottom part "inclined"
Supply 1 top and bottom part O160 H, assembly kit
B5015307
Bottom and top part O160 Hproduct added to your list
off-white RAL 9002
160x110x41mm
B5017207
Bottom and top part E160 F
Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.
Version Bottom part "inclined"
Supply 1 top and bottom part E160 F, assembly kit
B5017207
Bottom and top part E160 Fproduct added to your list
off-white RAL 9002
160x110x38mm
Customising options for B5111307
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
18 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for B5111307 and don't forget to request a quotation!
