Accessories for enclosures

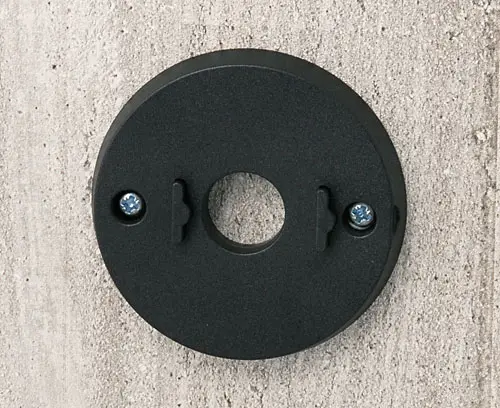

B5111309

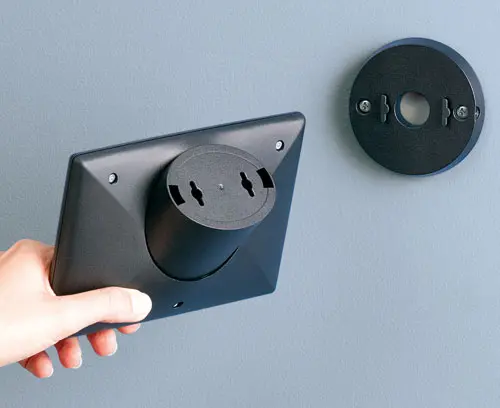

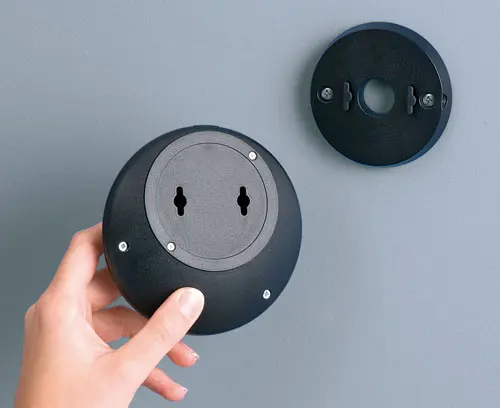

Wall mounting set
Suitable for all versions (except Euro Plug versions), for secure wall mounting of the enclosures (machining lid/bases necessary).
SupplyWall mounting set, incl. safety screws
Generate Your PDF Datasheet for B5111309
Please select the product details you would like to include in the PDF.
Add to my basket
B5010009

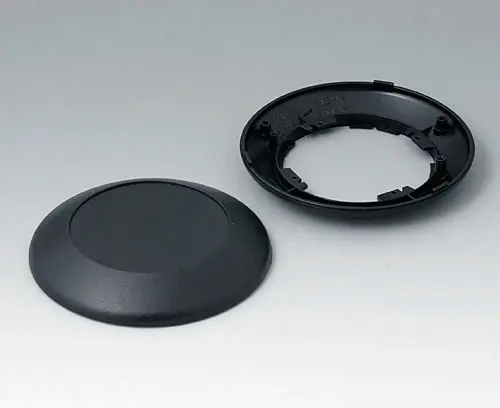

Bottom and top part R110F
Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.
Version Bottom part "level"
Supply 1 top and bottom part R110 F, assembly kit
B5010009
Bottom and top part R110Fproduct added to your list
black RAL 9005
⌀110x30mm
B5010109

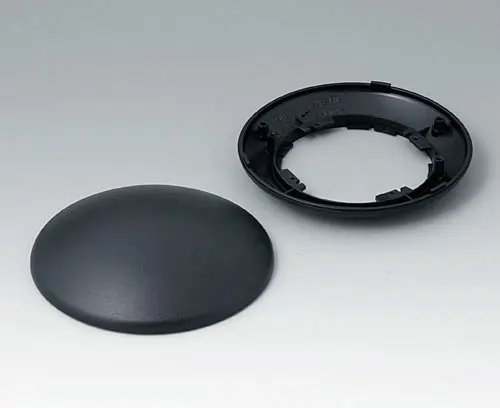

Bottom and top part R110 H
Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.
Version Bottom part "level"
Supply 1 top and bottom part R110 H, assembly kit
B5010109
Bottom and top part R110 Hproduct added to your list
black RAL 9005
⌀110x38mm
B5010209

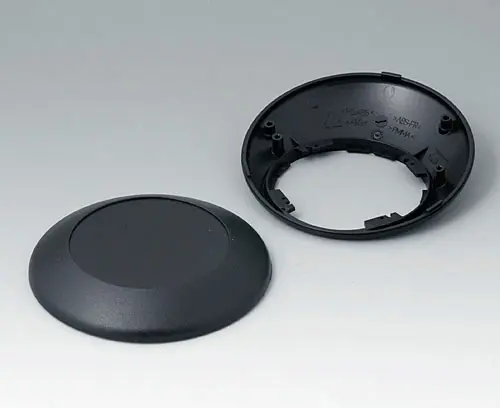

Bottom and top part R110 F
Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.
Version Bottom part "inclined"
Supply 1 top and bottom part R110 F, assembly kit
B5010209
Bottom and top part R110 Fproduct added to your list
black RAL 9005
⌀110x38mm
B5010309
Bottom and top part R110 H
Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.
Version Bottom part "inclined"
Supply 1 top and bottom part R110 H, assembly kit
B5010309
Bottom and top part R110 Hproduct added to your list
black RAL 9005
⌀110x41mm

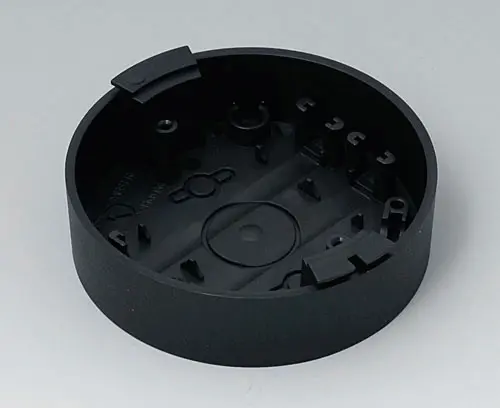

B5011119
Base
Assembly unit: suitable for all bottom parts. Spacer for ceiling / wall mounting. Easy to mount with bayonet lock. If required it can be additionally secured using the anti-rotation device (acc.). Locators for 2 x AA and strain relief (acc.) in the base.
Supply 1 base
B5011119
Baseproduct added to your list
black RAL 9005
B5011219

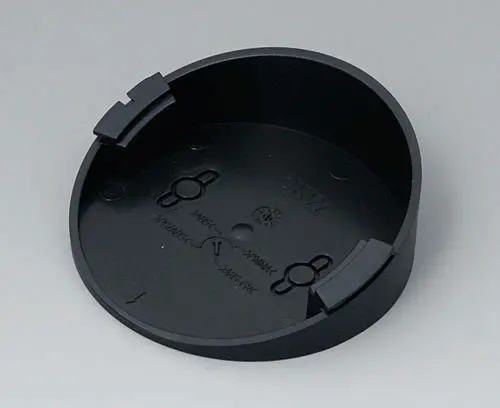

Base 30°
Assembly unit: suitable for all "inclined" bottom parts for ergonomically installation and assembly angles. Easy to mount with bayonet lock. If required it can be additionally secured using the anti-rotation device (acc.).
Supply 1 base 30°
B5011219
Base 30°product added to your list
black RAL 9005

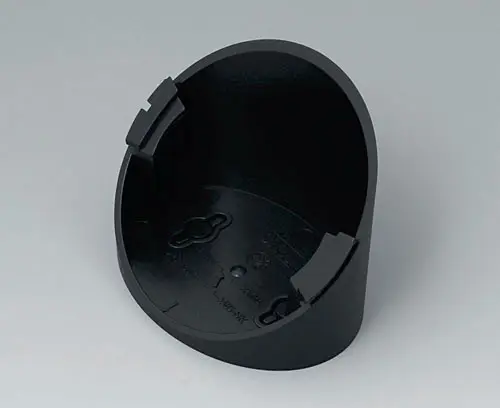

B5011319
Base 55°
Assembly unit: suitable for all "inclined" bottom parts for ergonomically installation and assembly angles. Easy to mount with bayonet lock. If required it can be additionally secured using the anti-rotation device (acc.).
Supply 1 base 55°
B5011319
Base 55°product added to your list
black RAL 9005

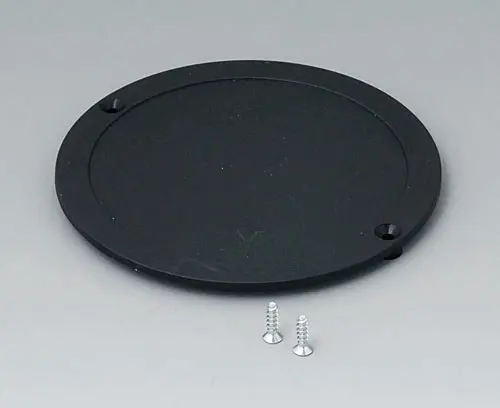

B5011849
Lid
Assembly unit: suitable for all bottom parts, screw-down (not suitable for use with battery compartment).
Supply 1 lid, assembly kit
B5011849
Lidproduct added to your list
black RAL 9005
B5011859

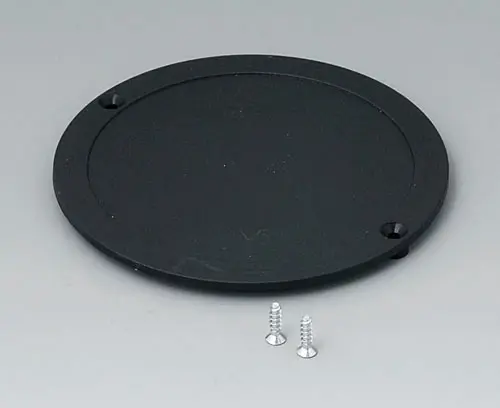

Battery compartment lid
Assembly unit: suitable for all bottom parts when using battery compartment 2 x AAA (acc.), screw-down.
Supply 1 battery compartment lid, assembly kit
B5011859
Battery compartment lidproduct added to your list
black RAL 9005

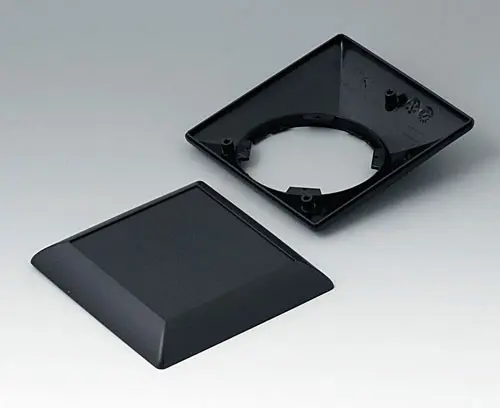

B5012209
Bottom and top part S110 F
Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30°or base 55°) required for bottom part - see separate article.
Version Bottom part "inclinded"
Supply 1 top and bottom part S110 F, assembly kit
B5012209
Bottom and top part S110 Fproduct added to your list
black RAL 9005
110x110x38mm

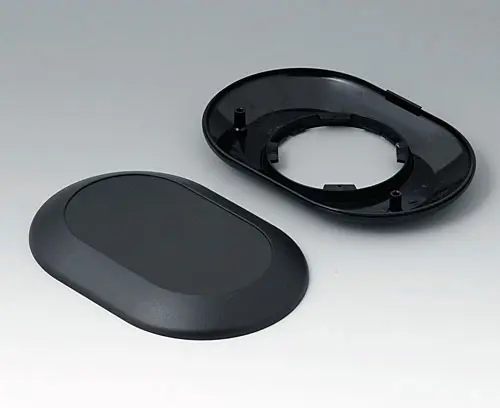

B5015009
Bottom and top part O160 F
Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.
Version Bottom part "level"
Supply 1 top and bottom part O160 F, assembly kit
B5015009
Bottom and top part O160 Fproduct added to your list
black RAL 9005
160x110x30mm
B5015109
Bottom and top part O160 H
Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.
Version Bottom part "level"
Supply 1 top and bottom part O160 H, assembly kit
B5015109
Bottom and top part O160 Hproduct added to your list
black RAL 9005
160x110x38mm
B5015209

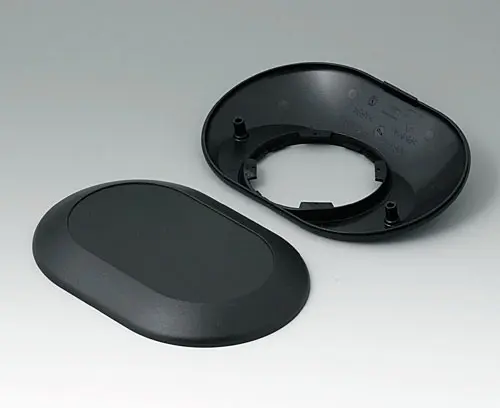

Bottom and top part O160 F
Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.
Version Bottom part "inclined"
Supply 1 top and bottom part O160 F, assembly kit
B5015209
Bottom and top part O160 Fproduct added to your list
black RAL 9005
160x110x38mm
B5015309
Bottom and top part O160 H
Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.
Version Bottom part "inclined"
Supply 1 top and bottom part O160 H, assembly kit
B5015309
Bottom and top part O160 Hproduct added to your list
black RAL 9005
160x110x41mm

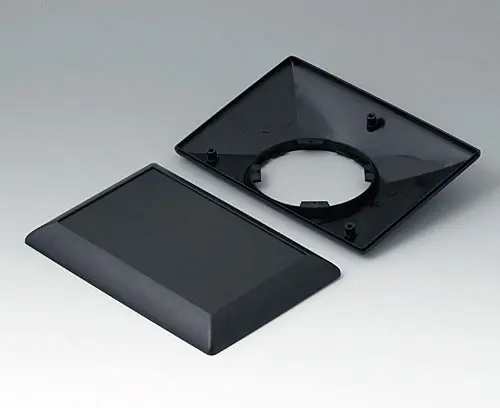

B5017209
Bottom and top part E160 F
Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.
Version Bottom part "inclined"
Supply 1 top and bottom part E160 F, assembly kit
B5017209
Bottom and top part E160 Fproduct added to your list
black RAL 9005
160x110x38mm
Customising options for B5111309
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
18 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for B5111309 and don't forget to request a quotation!
