Accessories for enclosures
C2316147

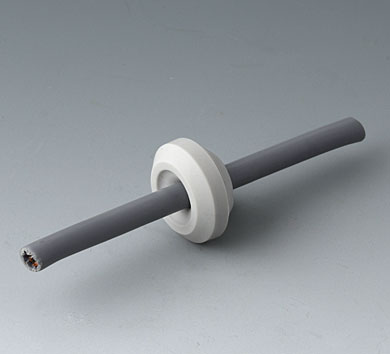

Cable grommet
Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 0.5 - 3 mm and for cable diameters from 5 - 10 mm. Operating temperatures from -40°C to +100°C. Borehole ø 16.5 mm.
Supply1 cable grommet
2D PDF Drawing
3D/2D download
3D/2D download
Generate Your PDF Datasheet for C2316147
Please select the product details you would like to include in the PDF.
Add to my basket
C3006101
SNAPTEC 60 x 100
Top and base parts are fitted together using a unique snap-in machanism. Fixing towers in top and base part. Recessed area for membrane keyboards. Simple, invisible wall-mounting in pre-moulded shafts within the base part.
Supply 1 top and base part with sealing, covers for the locking openings, dismantling key
C3006101
SNAPTEC 60 x 100product added to your list
light grey RAL 7035
60x100x40mm
C3010101
SNAPTEC 100 x 100
Top and base parts are fitted together using a unique snap-in machanism. Fixing towers in top and base part. Recessed area for membrane keyboards. Simple, invisible wall-mounting in pre-moulded shafts within the base part.
Supply 1 top and base part with sealing, covers for the locking openings, dismantling key
C3010101
SNAPTEC 100 x 100product added to your list
light grey RAL 7035
100x100x80mm
C6009121
SMART-BOX WIDTH 90
Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.
Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention
C6009121
SMART-BOX WIDTH 90product added to your list
light grey RAL 7035
120x90x50mm
C6009161
SMART-BOX WIDTH 90
Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.
Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention
C6009161
SMART-BOX WIDTH 90product added to your list
light grey RAL 7035
160x90x50mm
C6011141
SMART-BOX WIDTH 110
Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.
Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention
C6011141
SMART-BOX WIDTH 110product added to your list
light grey RAL 7035
140x110x60mm
C6011201
SMART-BOX WIDTH 110
Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.
Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention
C6011201
SMART-BOX WIDTH 110product added to your list
light grey RAL 7035
200x110x60mm
C6013161
SMART-BOX WIDTH 130
Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.
Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention
C6013161
SMART-BOX WIDTH 130product added to your list
light grey RAL 7035
160x130x60mm
C6013221
SMART-BOX WIDTH 130
Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.
Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention
C6013221
SMART-BOX WIDTH 130product added to your list
light grey RAL 7035
220x130x60mm
C6015181
SMART-BOX WIDTH 150
Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Recessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.
Supply 1 base and top part with sealing, 2 trims (hinged), assembly kit incl. cover retention
C6015181
SMART-BOX WIDTH 150product added to your list
light grey RAL 7035
180x150x60mm
C6017281
SMART-BOX WIDTH 170
Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.
Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention
C6017281
SMART-BOX WIDTH 170product added to your list
light grey RAL 7035
280x170x60mm
- Technical Data
-
3D-Models & Drawings / Info
- Purchasing Data
Material
Protection class
Colour
light grey RAL 7035
Standards
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 89 KB
- AutoCAD DWG-File 140 KB
- AutoCAD DXF-File 464 KB
Weight/1 part
2 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Other country
