Accessories for enclosures
A2440068
SPINDLE-SHAPED KNOB 40, with line
Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. Black marking.
Max. torque: assembly = 2,5 Nm, function = 1,6 Nm.
1 spindle-shaped knob
2D PDF Drawing
3D PDF View
3D/2D download
3D/2D download
Generate Your PDF Datasheet for A2440068
Please select the product details you would like to include in the PDF.
Add to my basket
System components to complete

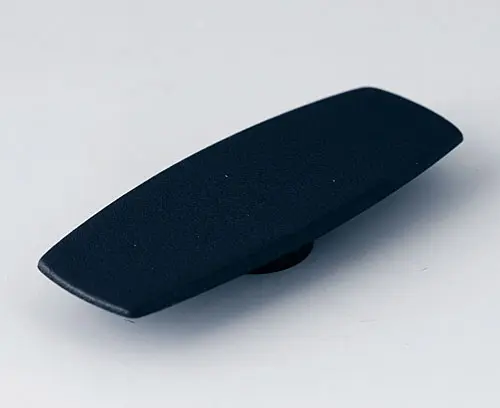

A5040000
Cover 40, without line
Suitable for spindle-shaped knob 40. Cover simply to pin up.
Supply 1 cover
A5040000
Cover 40, without lineproduct added to your list
black RAL 9005

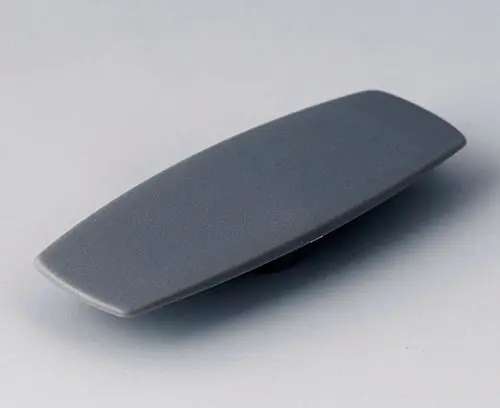

A5040008
Cover 40, without line
Suitable for spindle-shaped knob 40. Cover simply to pin up.
Supply 1 cover
A5040008
Cover 40, without lineproduct added to your list
dusty grey RAL 7037
A5040100
Cover 40, with line
Suitable for spindle-shaped knob 40. Cover simply to pin up. White marking.
Supply 1 cover
A5040100
Cover 40, with lineproduct added to your list
black RAL 9005

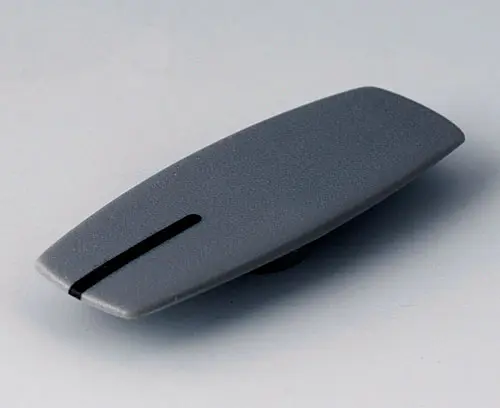

A5040108
Cover 40, with line
Suitable for spindle-shaped knob 40. Cover simply to pin up. Black marking.
Supply 1 cover
A5040108
Cover 40, with lineproduct added to your list
dusty grey RAL 7037
Accessory "screws"

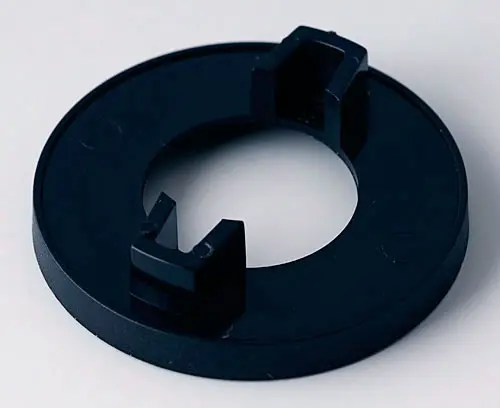

A5140000
Nut cover 40, without line
Suitable for spindle-shaped knob 40. Nut cover simply to pin up.
Supply 1 nut cover
A5140000
Nut cover 40, without lineproduct added to your list
black RAL 9005
A6207009
Round nut M7 x 0.75
For fixing the potentiometers at front panels.
Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.
Supply 1 round nut
A6207009
Round nut M7 x 0.75product added to your list
A6210009
Round nut M10 x 0.75
For fixing the potentiometers at front panels.
Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.
Supply 1 round nut
A6210009
Round nut M10 x 0.75product added to your list
A6295009
Round nut 3/8"-32G
For fixing the potentiometers at front panels.
Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.
Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.
Supply 1 round nut
A6295009
Round nut 3/8"-32Gproduct added to your list
A6300000
Spanner
For tightening the round nut. Suitable for round nuts M7 x 0.75, M10 x 0.75 and 3/8"-32G.
Supply 1 spanner
A6300000
Spannerproduct added to your list
Customising options for A2440068
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Technical Data
-
3D-Models & Drawings / Info
- Purchasing Data
Diameter
40 mm
Height
16 mm
Bore hole
6 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 112 KB
- AutoCAD DWG-File 181 KB
- AutoCAD DXF-File 625 KB
- 3D PDF View (Acrobat Reader) (turn the product 360°, blind components out for inside view, view accessories...) 431 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00027213.x_t 348 KB
- 00027213.step 821 KB
- 00027213.sat 703 KB
Weight/1 part
14 g
Customs tariff number
(OKW product)
(OKW product)
84879090
Country of manufacture
Germany
