A2650060

ROUND KNOB 50, with line

Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole. White marking.
Max. torque: assembly = 3,0 Nm, function = 1,8 Nm.

Supply

1 round knob

2D PDF Drawing
3D PDF View
3D/2D download

Generate Your PDF Datasheet for A2650060

Please select the product details you would like to include in the PDF.

Add to my basket Add to my basket Add to my basket
product added to your list
continue or open your product list

System components to complete

A4150000 Cover 50, without line

A4150000

Cover 50, without line Suitable for round knobs 50. Cover simply to pin up.

Supply 1 cover

A4150000

Cover 50, without line
product added to your list

black RAL 9005

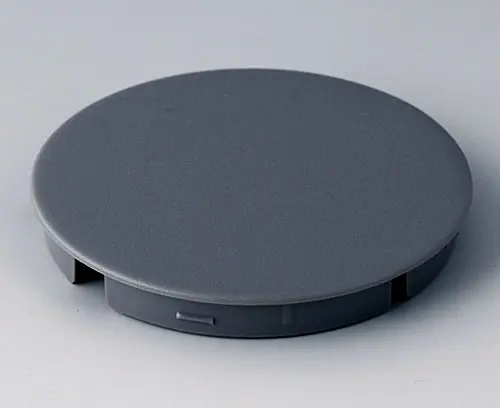

A4150008 Cover 50, without line

A4150008

Cover 50, without line Suitable for round knobs 50. Cover simply to pin up.

Supply 1 cover

A4150008

Cover 50, without line
product added to your list

dusty grey RAL 7037

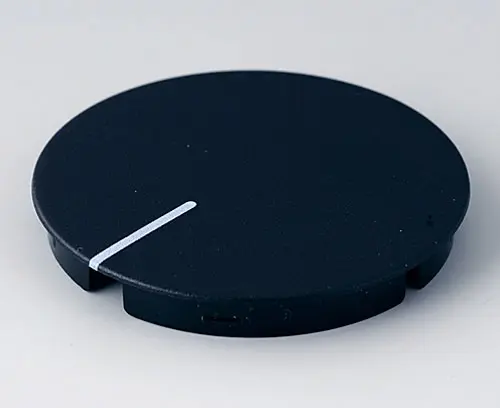

A4150100 Cover 50, with line

A4150100

Cover 50, with line Suitable for round knobs 50. Cover simply to pin up. White marking.

Supply 1 cover

A4150100

Cover 50, with line
product added to your list

black RAL 9005

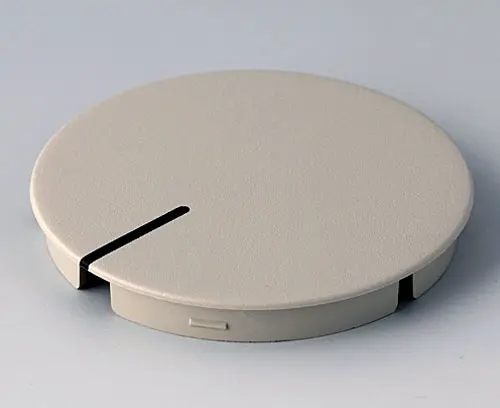

A4150107 Cover 50, with line

A4150107

Cover 50, with line Suitable for round knobs 50. Cover simply to pin up. Black marking.

Supply 1 cover

A4150107

Cover 50, with line
product added to your list

pebble grey RAL 7032

Accessory "screws"

A6207009 Round nut M7 x 0.75

A6207009

Round nut M7 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

A6207009

Round nut M7 x 0.75
product added to your list
A6210009 Round nut M10 x 0.75

A6210009

Round nut M10 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

A6210009

Round nut M10 x 0.75
product added to your list
A6295009 Round nut 3/8"-32G

A6295009

Round nut 3/8"-32G For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

A6295009

Round nut 3/8"-32G
product added to your list
A6300000 Spanner

A6300000

Spanner For tightening the round nut. Suitable for round nuts M7 x 0.75, M10 x 0.75 and 3/8"-32G.

Supply 1 spanner

A6300000

Spanner
product added to your list

Accessory

A6600064 Torsion protection 6/4.6

A6600064

Torsion protection 6/4.6 Makes torsion-free knob assembly onto profile axles 6/4.6mm possible. Suitable for round knob sizes 20 to 50.

Supply 1 torsion protection

A6600064

Torsion protection 6/4.6
product added to your list

Customising options for A2650060

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Material

Colour
black RAL 9005
Standards
RoHS compliant
REACH compliant
Diameter
50 mm
Height
15 mm
Bore hole
6 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
12 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany

Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for A2650060 and don't forget to request a quotation!
