Accessories for enclosures
B6123222
Rear panel
Rear panel for DIN-MODULAR CASE 72 x 72.
Supply1 rear panel
Generate Your PDF Datasheet for B6123222
Please select the product details you would like to include in the PDF.
Add to my basket
B6023011
DIN-MODULAR CASE TYPE A
Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.
Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation
B6023011
DIN-MODULAR CASE TYPE Aproduct added to your list
black RAL 9005
72x72x57mm
B6023021
DIN-MODULAR CASE TYPE A
Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.
Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation
B6023021
DIN-MODULAR CASE TYPE Aproduct added to your list
black RAL 9005
72x72x75mm

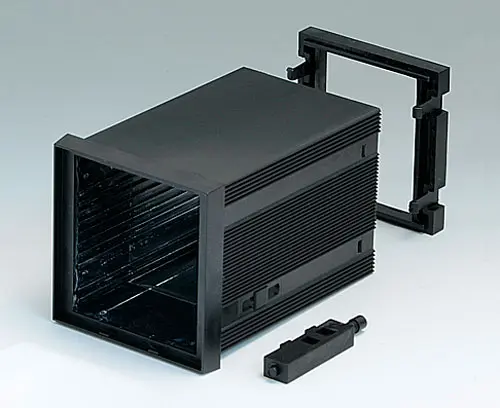

B6023031
DIN-MODULAR CASE TYPE A
Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.
Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation
B6023031
DIN-MODULAR CASE TYPE Aproduct added to your list
black RAL 9005
72x72x100mm
B6023061
DIN-MODULAR CASE TYPE A
Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.
Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation
B6023061
DIN-MODULAR CASE TYPE Aproduct added to your list
black RAL 9005
72x72x124mm
Customising options for B6123222
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
Width
63.8 mm
Height
49.2 mm
Thickness
1.7 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
5 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Italy
Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for B6123222 and don't forget to request a quotation!
