A9006118

DATEC-COMPACT M

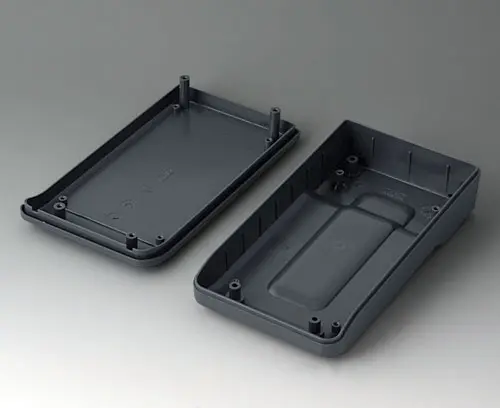

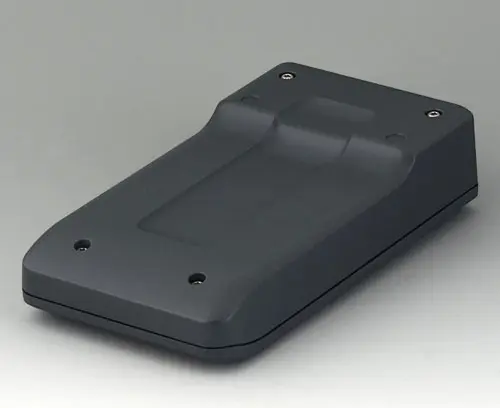

2-part compact hand-held enclosure with an ergonomic, robust design. Secure grip through finger recess in the bottom part. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

Version

Without battery compartment

Supply

Top and bottom part, assembly kit

2D PDF Drawing
3D PDF View
3D/2D download

Generate Your PDF Datasheet for A9006118

Please select the product details you would like to include in the PDF.

Add to my basket Add to my basket Add to my basket
product added to your list
continue or open your product list

Accessory "station"

A9106508 Station M

A9106508

Station M Base for the practical storage of DATEC-COMPACT M, with and without battery compartment. Ideal for charging mobile devices and transmitting data. Domes for mounting PCBs and components. Recesses for spring contacts (accessories).

Supply Station with bottom panel, rubber feet, assembly kit

A9106508

Station M
product added to your list

lava
A9193031 Spring contact

A9193031

Spring contact Spring contact, round with ballpoint tip and collar for transmitting charging current. Drilled hole necessary, then self-locking. Further contact established by means of a soldered stranded wire on the fixed outer surface or PCB mounting. Load-carrying capacity up to 15 A. 1.5 mm stroke, 1,7 N. Extremely low contact resistance.

Supply 1 spring contact

A9193031

Spring contact
product added to your list
gold-plated

Accessory "wall/holder"

A9106628 Holder M

A9106628

Holder M Special holder for DATEC-COMPACT M for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.

Supply 1 holder

A9106628

Holder M
product added to your list

lava

Accessory "screws"

A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
product added to your list
A0325060 Self-tapping screw 2.5 x 6 mm (T8)

A0325060

Self-tapping screw 2.5 x 6 mm (T8) Self-tapping screw with T8 Torx drive. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0325060

Self-tapping screw 2.5 x 6 mm (T8)
product added to your list

Accessory

A9193030 Contact pin

A9193030

Contact pin Contact pin, round with flat flange for transmitting charging current. Stepped bore necessary, then self-locking. Further contact established by means of a soldered stranded wire in the internal drilled hole. Load-carrying capacity up to 15 A. Extremely low contact resistance.

Supply 1 contact pin

A9193030

Contact pin
product added to your list
gold-plated
A9207150 Anti-slide feet 6.5 x 2 mm

A9207150

Anti-slide feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

A9207150

Anti-slide feet 6.5 x 2 mm
product added to your list
transparent

Customising options for A9006118

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Material

Protection class
Colour
lava
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
172 mm
Width
92 mm
Height
39 mm
PCB length, base
133 mm
PCB width, base
77 mm
PCB length, top
134 mm
PCB width, top
80 mm
Keypad length
131.5 mm
Keypad width
69.3 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
158 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany

Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for A9006118 and don't forget to request a quotation!
