Accessories for enclosures
A9107627

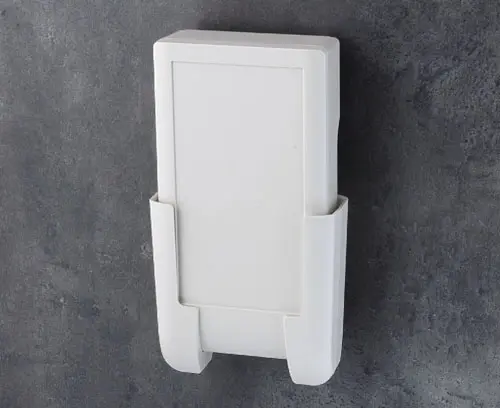

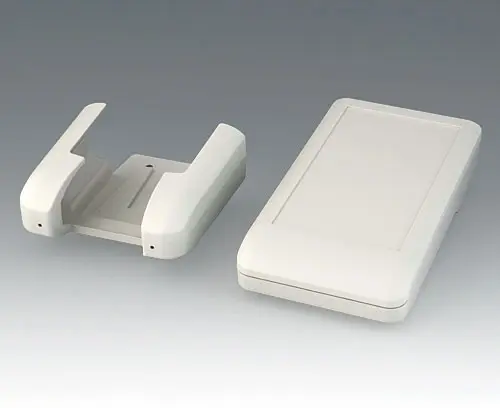

Holder L
Special holder for DATEC-COMPACT L for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.
Supply1 holder
2D PDF Drawing
3D PDF View
3D/2D download
3D/2D download
Generate Your PDF Datasheet for A9107627
Please select the product details you would like to include in the PDF.
Add to my basket
A9007107
DATEC-COMPACT L
2-part compact hand-held enclosure with sealing and with an ergonomic, robust design. Secure grip through finger recess in the bottom part. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.
Version Without battery compartment
Supply Top and bottom part, assembly kit
A9007107
DATEC-COMPACT Lproduct added to your list
off-white RAL 9002
206x110x47mm
A9007117
DATEC-COMPACT L
2-part compact hand-held enclosure with an ergonomic, robust design. Secure grip through finger recess in the bottom part. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.
Version Without battery compartment
Supply Top and bottom part, assembly kit
A9007117
DATEC-COMPACT Lproduct added to your list
off-white RAL 9002
206x110x47mm
A9007207
DATEC-COMPACT L
3-part compact hand-held enclosure with sealing and with an ergonomic, robust design. Ideal for miniaturised electronics applications. Secure grip through finger recess in the bottom part and centre of gravity near the body. With a battery compartment, accessible from the outside, for 3 x 1.5 V AA batteries. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.
Version With battery compartment 3 x AA
Supply Top and bottom part, battery compartment lid, assembly kit
A9007207
DATEC-COMPACT Lproduct added to your list
off-white RAL 9002
206x110x47mm
A9007217
DATEC-COMPACT L
3-part compact hand-held enclosure with an ergonomic, robust design. Ideal for miniaturised electronics applications. Secure grip through finger recess in the bottom part and centre of gravity near the body. With a battery compartment, accessible from the outside, for 3 x 1.5 V AA batteries. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.
Version With battery compartment 3 x AA
Supply Top and bottom part, battery compartment lid, assembly kit
A9007217
DATEC-COMPACT Lproduct added to your list
off-white RAL 9002
206x110x47mm
Customising options for A9107627
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Technical Data
-
3D-Models & Drawings / Info
- Purchasing Data
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 345 KB
- AutoCAD DWG-File 408 KB
- AutoCAD DXF-File 1,366 KB
- 3D PDF View (Acrobat Reader) (turn the product 360°, blind components out for inside view, view accessories...) 1,312 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00017177.x_t 14,501 KB
- 00017177.step 28,960 KB
- 00017177.sat 38,308 KB
Weight/1 part
110 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for A9107627 and don't forget to request a quotation!
