A9250907

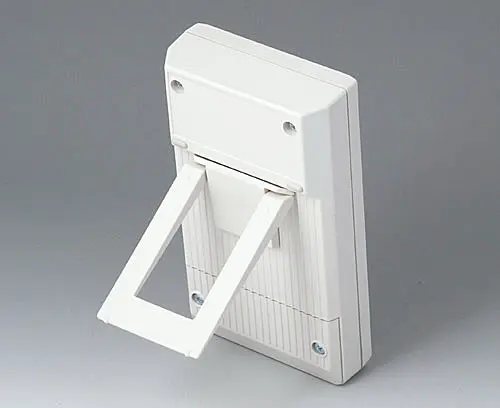

Tilt foot bar

Special for DATEC-MOBIL-BOX M/S (preformend centerings are already considered). Facilitates ergonomical reading angles (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a beter grip.

Supply

1 tilt foot bar, assembly kit

2D PDF Drawing
3D/2D download

Generate Your PDF Datasheet for A9250907

Please select the product details you would like to include in the PDF.

Add to my basket Add to my basket Add to my basket
product added to your list
continue or open your product list

System components to complete

A9073107 DATEC-MOBIL-BOX S, Vers. I

A9073107

DATEC-MOBIL-BOX S, Vers. I Small hand-held box of attractive design. With integrated battery compartment for 2 x 1.5 V mignon cells (AA) or 1 x 9 V flat battery (PP3). Recessed operation area for protecting the input elements. Sealing for IP 65 as accessory.

Version Top with closed operating area, recessed by 1.7 mm

Supply Case-top and base, battery compartment lid, assembly kit

A9073107

DATEC-MOBIL-BOX S, Vers. I
product added to your list

off-white RAL 9002
152x83x33.5mm
A9073117 DATEC-MOBIL-BOX S, Vers. I

A9073117

DATEC-MOBIL-BOX S, Vers. I Small hand-held box of attractive design. Without battery compartment. Recessed operation area for protecting the input elements. Sealing for IP 65 as accessory.

Version Top with closed operating area, recessed by 1,7 mm

Supply Case-top and base, battery compartment lid, assembly kit

A9073117

DATEC-MOBIL-BOX S, Vers. I
product added to your list

off-white RAL 9002
152x83x33.5mm
A9073207 DATEC-MOBIL-BOX S, Vers. II

A9073207

DATEC-MOBIL-BOX S, Vers. II Small hand-held box of attractive design. With integrated battery compartment for 2 x 1.5 V mignon cells (AA) or 1 x 9 V flat battery (PP3). Recessed operation area for protecting the input elements. Sealing for IP 65 as accessory.

Version Top with display cutout for 2"-LC-modules with active area 45.8 x 17.8 mm

Supply Case-top and base, battery compartment lid, assembly kit

A9073207

DATEC-MOBIL-BOX S, Vers. II
product added to your list

off-white RAL 9002
152x83x33.5mm
A9073217 DATEC-MOBIL-BOX S, Vers. II

A9073217

DATEC-MOBIL-BOX S, Vers. II Small hand-held box of attractive design. Without battery compartment. Recessed operation area for protecting the input elements. Sealing for IP 65 as accessory.

Version Top with display cutout for 2"-LC-modules with active area 45.8 x 17.8 mm

Supply Case-top and base, battery compartment lid, assembly kit

A9073217

DATEC-MOBIL-BOX S, Vers. II
product added to your list

off-white RAL 9002
152x83x33.5mm
A9073307 DATEC-MOBIL-BOX S, Vers. III

A9073307

DATEC-MOBIL-BOX S, Vers. III Small hand-held box of attractive design. With integrated battery compartment for 2 x 1.5 V mignon cells (AA) or 1 x 9 V flat battery (PP3). Recessed operation area for protecting the input elements. Sealing for IP 65 as accessory.

Version Top with display cutout for miniature-LCDs with 2 lines x 20 characters

Supply Case-top and base, battery compartment lid, assembly kit

A9073307

DATEC-MOBIL-BOX S, Vers. III
product added to your list

off-white RAL 9002
152x83x33.5mm
A9073317 DATEC-MOBIL-BOX S, Vers. III

A9073317

DATEC-MOBIL-BOX S, Vers. III Small hand-held box of attractive design. Without battery compartment. Recessed operation area for protecting the input elements. Sealing for IP 65 as accessory.

Version Top with display cutout for miniature-LCDs with 2 lines x 20 characters

Supply Case-top and base, assembly kit

A9073317

DATEC-MOBIL-BOX S, Vers. III
product added to your list

off-white RAL 9002
152x83x33.5mm
A9073407 DATEC-MOBIL-BOX S, Vers. IV

A9073407

DATEC-MOBIL-BOX S, Vers. IV Small hand-held box of attractive design. With integrated battery compartment for 2 x 1.5 V mignon cells (AA) or 1 x 9 V flat battery (PP3). Recessed operation area for protecting the input elements. Sealing for IP 65 as accessory.

Version Top with display cutout for miniature-LCDs with 4 lines x 20 characters

Supply Case-top and base, battery compartment lid, assembly kit

A9073407

DATEC-MOBIL-BOX S, Vers. IV
product added to your list

off-white RAL 9002
152x83x33.5mm
A9073417 DATEC-MOBIL-BOX S, Vers. IV

A9073417

DATEC-MOBIL-BOX S, Vers. IV Small hand-held box of attractive design. Without battery compartment. Recessed operation area for protecting the input elements. Sealing for IP 65 as accessory.

Version Top with display cutout for miniature-LCDs with 4 lines x 20 characters

Supply Case-top and base, assembly kit

A9073417

DATEC-MOBIL-BOX S, Vers. IV
product added to your list

off-white RAL 9002
152x83x33.5mm
A9074107 DATEC-MOBIL-BOX M, Vers. I

A9074107

DATEC-MOBIL-BOX M, Vers. I Universally applicable hand-held box of medium size. Large area for cutouts and openings. Recessed control area for keyboards. Lid of battery compartment in the base (battery compartment as accessory). Sealing for IP 65 as accessory.

Version Top with closed operating area, recessed by 1.7 mm

Supply Case-top and base, battery compartment lid, assembly kit

A9074107

DATEC-MOBIL-BOX M, Vers. I
product added to your list

off-white RAL 9002
195x101x44mm
A9074127 DATEC-MOBIL-BOX M, Vers. I, high

A9074127

DATEC-MOBIL-BOX M, Vers. I, high Universally applicable hand-held box of medium size. Large area for cutouts and openings. Recessed control area for keyboards. Lid of battery compartment in the base (battery compartment as accessory). Sealing for IP 65 as accessory.

Version Top high with closed operating area, recessed by 1.7 mm

Supply Case-top and base, battery compartment lid, assembly kit

A9074127

DATEC-MOBIL-BOX M, Vers. I, high
product added to your list

off-white RAL 9002
195x101x59mm
A9074207 DATEC-MOBIL-BOX M, Vers. II

A9074207

DATEC-MOBIL-BOX M, Vers. II Universally applicable hand-held box of medium size. Large area for cutouts and openings. Recessed control area for keyboards. Lid of battery compartment in the base (battery compartment as accessory). Sealing for IP 65 as accessory.

Version Top with display cutout for standard-LCD modules with 2 lines x 16 characters

Supply Case-top and base, battery compartment lid, assembly kit

A9074207

DATEC-MOBIL-BOX M, Vers. II
product added to your list

off-white RAL 9002
195x101x44mm
A9074227 DATEC-MOBIL-BOX M, Vers. II, high

A9074227

DATEC-MOBIL-BOX M, Vers. II, high Universally applicable hand-held box of medium size. Large area for cutouts and openings. Recessed control area for keyboards. Lid of battery compartment in the base (battery compartment as accessory). Sealing for IP 65 as accessory.

Version Top high with display cutout for standard-LCD modules with 2 lines x 16 characters

Supply Case-top and base, battery compartment lid, assembly kit

A9074227

DATEC-MOBIL-BOX M, Vers. II, high
product added to your list

off-white RAL 9002
195x101x59mm
A9074307 DATEC-MOBIL-BOX M, Vers. III

A9074307

DATEC-MOBIL-BOX M, Vers. III Universally applicable hand-held box of medium size. Large area for cutouts and openings. Recessed control area for keyboards. Lid of battery compartment in the base (battery compartment as accessory). Sealing for IP 65 as accessory.

Version Top with display cutout for compact-LCD modules with 2 lines x 16 characters

Supply Case-top and base, battery compartment lid, assembly kit

A9074307

DATEC-MOBIL-BOX M, Vers. III
product added to your list

off-white RAL 9002
195x101x44mm
A9074407 DATEC-MOBIL-BOX M, Vers. IV

A9074407

DATEC-MOBIL-BOX M, Vers. IV Universally applicable hand-held box of medium size. Large area for cutouts and openings. Recessed control area for keyboards. Lid of battery compartment in the base (battery compartment as accessory). Sealing for IP 65 as accessory.

Version Top with display cutout for standard-LCD modules with 4 lines x 16 characters

Supply Case-top and base, battery compartment lid, assembly kit

A9074407

DATEC-MOBIL-BOX M, Vers. IV
product added to your list

off-white RAL 9002
195x101x44mm
A9075107 DATEC-MOBIL-BOX L, Vers. I

A9075107

DATEC-MOBIL-BOX L, Vers. I Hand-held box with wide range of applications. Prepared for mounting PCBs of Eurocard size. Large control area for membrane keyboards and controls. Battery compartment accessible from the outside, for 4 x 1.5 V mignon cells (AA) or 1 x 9 V flat battery (PP3). Sealing for IP 65 as accessory.

Version Top with closed operating area, recessed by 2.2 mm

Supply Case-top and base, battery compartment lid, assembly kit

A9075107

DATEC-MOBIL-BOX L, Vers. I
product added to your list

off-white RAL 9002
252x121x50mm
A9075117 DATEC-MOBIL-BOX L, Vers. I

A9075117

DATEC-MOBIL-BOX L, Vers. I Hand-held box with wide range of applications without battery compartment. Prepared for mounting PCBs of Eurocard size. Large control area for membrane keyboards and controls. Sealing for IP 65 as accessory.

Version Top with closed operating area, recessed by 2.2 mm

Supply Case-top and base, assembly kit

A9075117

DATEC-MOBIL-BOX L, Vers. I
product added to your list

off-white RAL 9002
252x121x50mm
A9075207 DATEC-MOBIL-BOX L, Vers. II

A9075207

DATEC-MOBIL-BOX L, Vers. II Hand-held box with wide range of applications. Prepared for mounting PCBs of Eurocard size. Large control area for membrane keyboards and controls. Battery compartment accessible from the outside, for 4 x 1.5 V mignon cells (AA) or 1 x 9 V flat battery (PP3). Sealing for IP 65 as accessory.

Version Top with display cutout for LCD modules of 20 characters x 4 lines

Supply Case-top and base, battery compartment lid, assembly kit

A9075207

DATEC-MOBIL-BOX L, Vers. II
product added to your list

off-white RAL 9002
252x121x50mm
A9075217 DATEC-MOBIL-BOX L, Vers. II

A9075217

DATEC-MOBIL-BOX L, Vers. II Hand-held box with wide range of applications without battery compartment. Prepared for mounting PCBs of Eurocard size. Large control area for membrane keyboards and controls. Sealing for IP 65 as accessory.

Version Top with display cutout for LCD modules of 20 characters x 4 lines

Supply Case-top and base, assembly kit

A9075217

DATEC-MOBIL-BOX L, Vers. II
product added to your list

off-white RAL 9002
252x121x50mm

Accessory

A9207150 Anti-slide feet 6.5 x 2 mm

A9207150

Anti-slide feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

A9207150

Anti-slide feet 6.5 x 2 mm
product added to your list
transparent

Customising options for A9250907

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Material

Colour
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
12 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany

Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for A9250907 and don't forget to request a quotation!
