B4016217
DATEC-TERMINAL M, Vers. II
Basic enclosure with terminal compartment. Ergonomically inclined operating area can be used with a cover and the MH front panel, separate articles.
Depending on requirements, there is a choice of different cover designs to protect the operating and display elements. The quick-action lock and the hinge guarantee good and easy accessibility for all setup and maintenance work. The opening side is on the right for wall-mounted enclosures and on the left for table-top enclosures.
Suitable for the installation of Eurocards 100 x 160 mm.

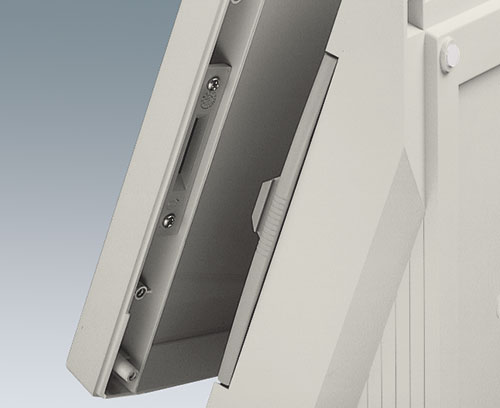

Machined for assembly of hinge and quick-action lock
Supply1 basic housing, 4 screws, 4 non slip feet, sealing kit, with hinge and quick-action lock
2D PDF Drawing
3D PDF View
3D/2D download
3D/2D download
Generate Your PDF Datasheet for B4016217
Please select the product details you would like to include in the PDF.
Add to my basket
Accessory to complete
B4016417
Lid M closed, flat
Lid M closed, flat to cover up the terminal compartment and for mounting of pocket scanners on a magnetic, inductive and chip-card base. List of suitable devices on demand.
Supply 1 lid, 2 screws M3
B4016417
Lid M closed, flatproduct added to your list
off-white RAL 9002
134x62x24mm
B4016457
Lid M closed, high
Lid M closed, high to cover up the terminal compartment and for mounting of pocket scanners on a magnetic, inductive and chip-card base. List of suitable devices on demand.
Supply 1 lid, 2 screws M3
B4016457
Lid M closed, highproduct added to your list
off-white RAL 9002
134x67x38mm
B4016617
Cover M, flat
Suitable for DATEC-TERMINAL M, basic housing vers. I, II, III. For protecting the electronic. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Fixing of vers. I from the rear by 4 screws.
Supply 1 cover, assembly kit
B4016617
Cover M, flatproduct added to your list
off-white RAL 9002
168x220x29mm
B4016621
Cover M, flat
Suitable for DATEC-TERMINAL M, basic housing vers. I, II, III. For protecting the electronic. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Fixing of vers. I from the rear by 4 screws.
Supply 1 cover, assembly kit
B4016621
Cover M, flatproduct added to your list
transparent
168x220x29mm
B4016631
Cover M, convex
Suitable for DATEC-TERMINAL M, basic housing vers. I, II, III. For protecting the electronics. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Cover strips in transparent or off-white necessary as separate article. Fixing of vers. I from the front by 4 screws.
Supply 1 cover, assembly kit
B4016631
Cover M, convexproduct added to your list
transparent
168x220x29mm
B4016637
Cover M, convex
Suitable for DATEC-TERMINAL M, basic housing vers. I, II, III. For protecting the electronics. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Cover strips in transparent or off-white necessary as separate article. Fixing of vers. I from the front by 4 screws.
Supply 1 cover, assembly kit
B4016637
Cover M, convexproduct added to your list
off-white RAL 9002
168x220x29mm
B4016657
Cover M, high
Suitable for DATEC-TERMINAL M, basic housing vers. I, II, III. For protecting the electronic. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Fixing of vers. I from the rear by 4 screws.
Supply 1 cover, assembly kit
B4016657
Cover M, highproduct added to your list
off-white RAL 9002
168x220x50mm
B4016671
Cover strip M / L
For covering the area with the screws when using the convex cover. Simply snap-in. Colour coding possible, e.g. by inserting an individual coloured paper print. For the complete assembly there are 2 cover strips necessary.
Supply 1 cover strip
B4016671
Cover strip M / Lproduct added to your list
transparent
B4016677
Cover strip M / L
For covering the screwing area when using the convex cover. Simply snap-in. For the complete assembly there are 2 cover strips necessary.
Supply 1 cover strip
B4016677
Cover strip M / Lproduct added to your list
off-white RAL 9002
B4116116
Front panel MH
Front panel MH used when case is fitted with a cover. Suitable for mounting of all kinds of operating elements under the cover.
Supply 1 front panel, 4 screws diameter 3 mm
B4116116
Front panel MHproduct added to your list
matt anodised
128x209x2mm
Accessory "wall/holder"
B4116147
Wall suspension element M
Wall suspension element M for easy and secure fixing of the unit to a wall. Securing by 2 screws in the lateral pocket sections in the terminal compartment.
Supply 1 wall suspension element, 2 screws M3
B4116147
Wall suspension element Mproduct added to your list
galvanized
214x126x12mm
Customising options for B4016217
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Technical Data
-
3D-Models & Drawings / Info
- Purchasing Data
Material
Protection class
Necessary accessories: cover / cover convex and closed lid
Colour
off-white RAL 9002
Standards
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Width
168 mm
Depth
272 mm
Height
101 mm
PCB length, base
255 mm
PCB width, base
124 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Assembly Instructions (Part)
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 255 KB
- AutoCAD DWG-File 559 KB
- AutoCAD DXF-File 2,012 KB
- 3D PDF View (Acrobat Reader) (turn the product 360°, blind components out for inside view, view accessories...) 3,898 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00008190.x_t 5,324 KB
- 00008190.STEP 12,705 KB
- 00008190.SAT 14,623 KB
Weight/1 part
460 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for B4016217 and don't forget to request a quotation!
