B4113106

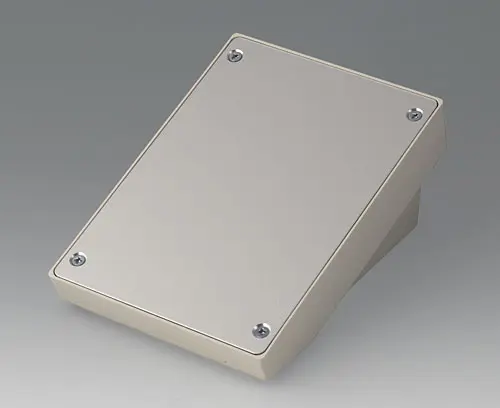

Front panel S

Front panel S for the mounting of all kinds of operating elements.

Supply

1 front panel, 4 screws diameter 4.0 mm

2D PDF Drawing
3D PDF View
3D/2D download

Generate Your PDF Datasheet for B4113106

Please select the product details you would like to include in the PDF.

Add to my basket Add to my basket Add to my basket
product added to your list
continue or open your product list
B4013117 DATEC-TERMINAL S

B4013117

DATEC-TERMINAL S Basic case with ergonomically inclined operating area can be used with profile plate, cover or front panel. Suitable to accommodate Eurocards 100 x 160 mm.

Supply 1 basic housing, 4 screws, 4 non slip feet, 1 sealing

B4013117

DATEC-TERMINAL S
product added to your list

off-white RAL 9002
130x180x86mm

Customising options for B4113106

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Material

Colour
matt anodised
Standards
RoHS compliant
REACH compliant
Width
125.9 mm
Depth
176 mm
Height
2 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
122 g
Customs tariff number
(OKW product)
76069200
Country of manufacture
Germany

Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for B4113106 and don't forget to request a quotation!
