B4130126
Profile plate L

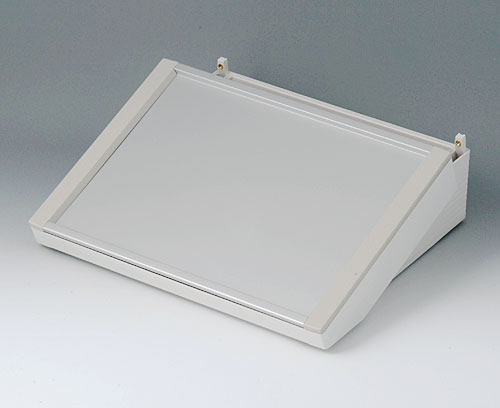

Profile plate L for mounting operating elements of all kinds. Especially designed for the use with membrane keyboards. Recessed area for protecting the operating elements.
Supply1 profile plate, 4 screws, 2 cover strips
2D PDF Drawing
3D PDF View
3D/2D download
3D/2D download
Generate Your PDF Datasheet for B4130126
Please select the product details you would like to include in the PDF.
Add to my basket
B4030117
DATEC-TERMINAL L, Vers. I
Basic case with terminal compartment. Ergonomically inclined operating area can be used with front panel, profile plate or cover. Suitable to accommodate Eurocards.
Version Basic housing, unmachined
Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit
B4030117
DATEC-TERMINAL L, Vers. Iproduct added to your list
off-white RAL 9002
302x272x101mm
Customising options for B4130126
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Technical Data
-
3D-Models & Drawings / Info
- Purchasing Data
Material
Colour
Profile plate
matt anodised,
Cover strips pebble grey RAL 7032
Cover strips pebble grey RAL 7032
Standards
Width
302 mm
Depth
220 mm
Height
8 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 185 KB
- AutoCAD DWG-File 257 KB
- AutoCAD DXF-File 927 KB
- 3D PDF View (Acrobat Reader) (turn the product 360°, blind components out for inside view, view accessories...) 1,989 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00008377.x_t 661 KB
- 00008377.STEP 1,563 KB
- 00008377.SAT 3,193 KB
Weight/1 part
518 g
Customs tariff number
(OKW product)
(OKW product)
76042990
Country of manufacture
Germany
Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for B4130126 and don't forget to request a quotation!
