A9092108

DIATEC XS

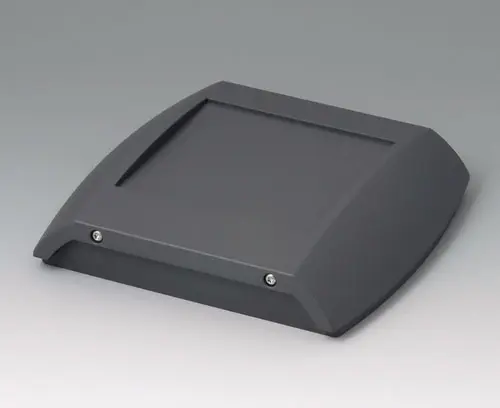

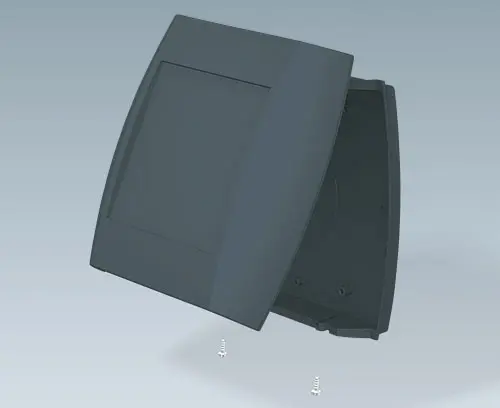

Two-part case. The bottom part can be fixed directly to the wall, the top part is fixed by Torx T10 stainless steel screws from above or below. Recessed operating area to protect the membrane keyboard. Fastening pillars for PCB in the bottom and top parts. Integrated battery compartment for 2 x AA.

Supply

Top and bottom part, assembly kit

2D PDF Drawing
3D PDF View
3D/2D download

Generate Your PDF Datasheet for A9092108

Please select the product details you would like to include in the PDF.

Add to my basket Add to my basket Add to my basket
product added to your list
continue or open your product list

Accessory "battery"

A9190015 Set of battery clips, 2 x AA

A9190015

Set of battery clips, 2 x AA For contacting the batteries. Complies with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly!

Supply 1 single contact positive, 1 single contact negative

A9190015

Set of battery clips, 2 x AA
product added to your list

nickel-plated

Accessory "wall/holder"

B1360048 Wall suspension elements

B1360048

Wall suspension elements Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element, 1 adapter 58 x 128 mm, assembly kit

B1360048

Wall suspension elements
product added to your list

pebble grey RAL 7032

Accessory

A9207150 Anti-slide feet 6.5 x 2 mm

A9207150

Anti-slide feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

A9207150

Anti-slide feet 6.5 x 2 mm
product added to your list
transparent

Customising options for A9092108

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Material

Protection class
Colour
lava
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Width
150 mm
Height
37 mm
Depth
155 mm
PCB length, base
120 mm
PCB width, base
115 mm
PCB length, top
127 mm
PCB width, top
115 mm
Keypad length
91.2 mm
Keypad width
91.2 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
134 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany

Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for A9092108 and don't forget to request a quotation!
