Accessories for enclosures
B7025209
ERGO-CASE L, high
Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side.
VersionWith high top part
Supply1 top and 1 bottom part, assembly kit
2D PDF Drawing
3D PDF View
3D/2D download
3D/2D download
Generate Your PDF Datasheet for B7025209
Please select the product details you would like to include in the PDF.
Add to my basket
Accessory "protection"
B7120005
Sealing L
Application: for increasing the protection class, of ERGO-CASE L.
Supply 1 sealing
B7120005
Sealing Lproduct added to your list
Accessory "wall/holder"
A9178007
Contacts, male
Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.
Supply 1 contact
A9178007
Contacts, maleproduct added to your list
B7110028
Fastening elements L / M / S
To fix the strap/belt or secure storage of the cases with wall suspension element. Max. size of the strap/belt: height 35 mm, thickness 3 mm. Easy to mount. In this case the premoulded center holes in the bottom part have to be opened by drilling or punching.
Supply 2 fixings, 1 assembly kit
B7110028
Fastening elements L / M / Sproduct added to your list
volcano
B7120048
Wall suspension elements L
Special wall suspension element for the ERGO-CASE L for wall mounting and storage, with securing clip as protection against removal. Locating unit fitted for contacts on wall suspension element (6-pin, accessory A9178007). Fastening element required for mounting on case (accessory B7110028).
Supply 2 wall suspension element, 1 securing clip, 1 assembly kit
B7120048
Wall suspension elements Lproduct added to your list
volcano
Accessory "carrying"
B7110028
Fastening elements L / M / S
To fix the strap/belt or secure storage of the cases with wall suspension element. Max. size of the strap/belt: height 35 mm, thickness 3 mm. Easy to mount. In this case the premoulded center holes in the bottom part have to be opened by drilling or punching.
Supply 2 fixings, 1 assembly kit
B7110028
Fastening elements L / M / Sproduct added to your list
volcano
B7110139
Belt strap
Belt strap with insertion lock.
Supply 1 belt strap
B7110139
Belt strapproduct added to your list
1200x30mm
B7110149
Belt strap
Belt strap with insertion lock.
Supply 1 belt strap
B7110149
Belt strapproduct added to your list
1500x30mm
Accessory "screws"
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)product added to your list
Accessory
A9178007
Contacts, male
Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.
Supply 1 contact
A9178007
Contacts, maleproduct added to your list
A9178008
Contacts, female
Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.
Supply 1 contact
A9178008
Contacts, femaleproduct added to your list
Customising options for B7025209
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Technical Data
-
3D-Models & Drawings / Info

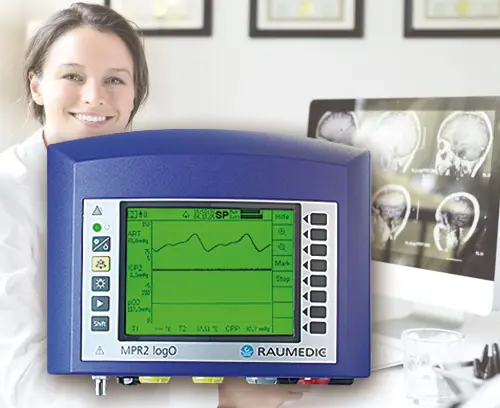

- Application Examples
- Purchasing Data
Material
Protection class
Necessary accessories: sealing
Colour
black RAL 9005
Standards
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
150 mm
Width
200 mm
Height
69 mm
PCB length, top
119 mm
PCB width, top
160 mm
Keypad length
94 mm
Keypad width
149.1 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 282 KB
- AutoCAD DWG-File 875 KB
- AutoCAD DXF-File 3,369 KB
- 3D PDF View (Acrobat Reader) (turn the product 360°, blind components out for inside view, view accessories...) 2,576 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00006943.x_t 1,909 KB
- 00006943.STEP 4,976 KB
- 00006943.SAT 5,570 KB
Weight/1 part
279 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for B7025209 and don't forget to request a quotation!
