Accessories for enclosures

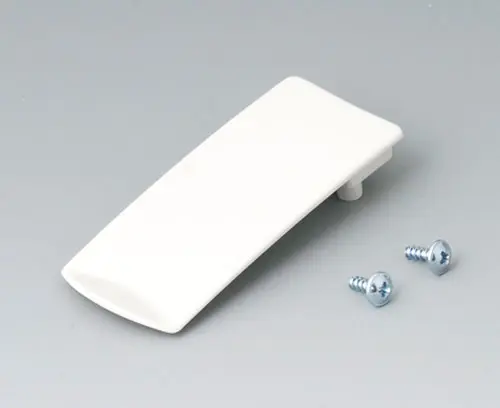

B7110107

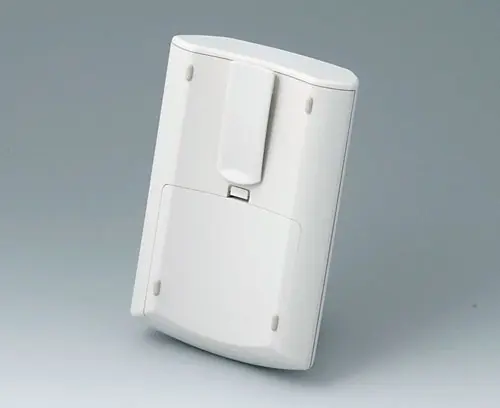

Belt / pocket clip
Special clip for ERGO-CASE S & M. For fixing the preshaped centres in the bottom part have to be milled or punched.
Supply1 clip, assembly kit
2D PDF Drawing
3D/2D download
3D/2D download
Generate Your PDF Datasheet for B7110107
Please select the product details you would like to include in the PDF.
Add to my basket

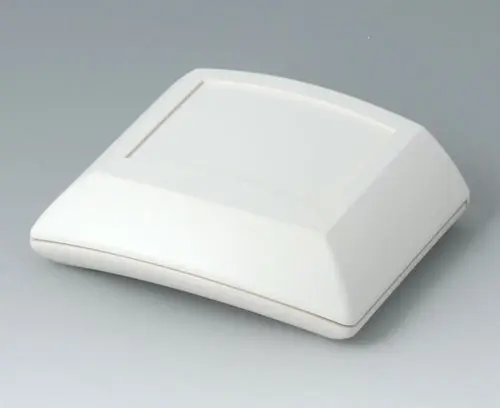

B7000107
ERGO-CASE S, flat
Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side.
Version With flat top part
Supply 1 top and 1 bottom part, assembly kit
B7000107
ERGO-CASE S, flatproduct added to your list
off-white RAL 9002
80x96x32mm

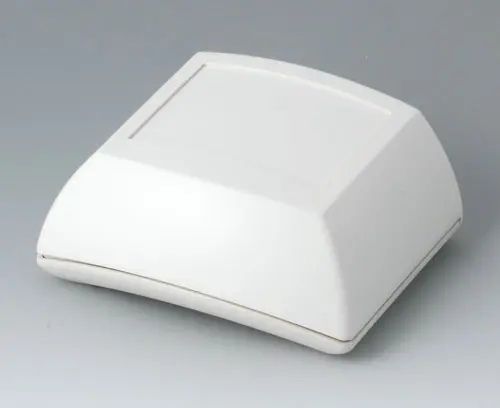

B7005107
ERGO-CASE S, high
Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side.
Version With high top part
Supply 1 top and 1 bottom part, assembly kit
B7005107
ERGO-CASE S, highproduct added to your list
off-white RAL 9002
80x96x44mm
B7010107
ERGO-CASE M, flat
Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side. Battery compartment lid snapped-on (battery compartment as accessory).
Version With flat top part
Supply 1 top and 1 bottom part, battery compartment lid, assembly kit
B7010107
ERGO-CASE M, flatproduct added to your list
off-white RAL 9002
150x100x40mm

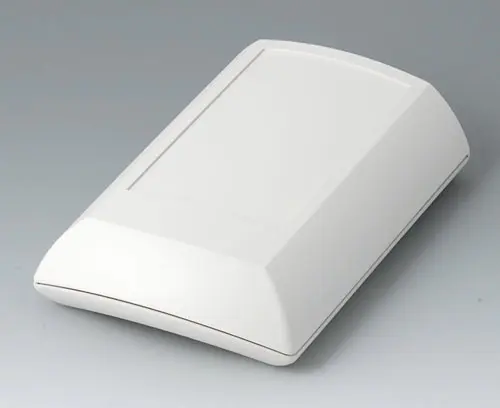

B7010207
ERGO-CASE M, flat
Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side.
Version With flat top part
Supply 1 top and 1 bottom part, assembly kit
B7010207
ERGO-CASE M, flatproduct added to your list
off-white RAL 9002
150x100x40mm
B7015107
ERGO-CASE M, high
Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side. Battery compartment lid snapped-on (battery compartment as accessory).
Version With high top part
Supply 1 top and 1 bottom part, battery compartment lid, assembly kit
B7015107
ERGO-CASE M, highproduct added to your list
off-white RAL 9002
150x100x55mm

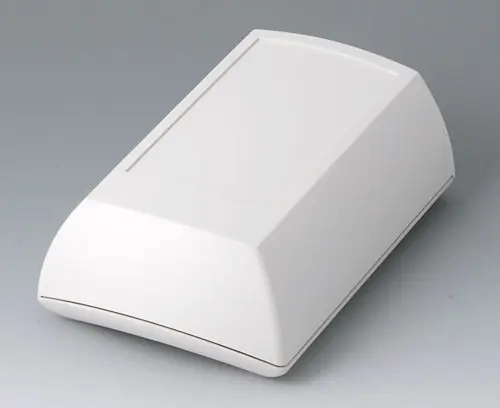

B7015207
ERGO-CASE M, high
Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side.
Version With high top part
Supply 1 top and 1 bottom part, assembly kit
B7015207
ERGO-CASE M, highproduct added to your list
off-white RAL 9002
150x100x55mm
Customising options for B7110107
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Technical Data
-
3D-Models & Drawings / Info
- Purchasing Data
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 171 KB
- AutoCAD DWG-File 294 KB
- AutoCAD DXF-File 1,076 KB
Weight/1 part
4 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for B7110107 and don't forget to request a quotation!
