A0236170

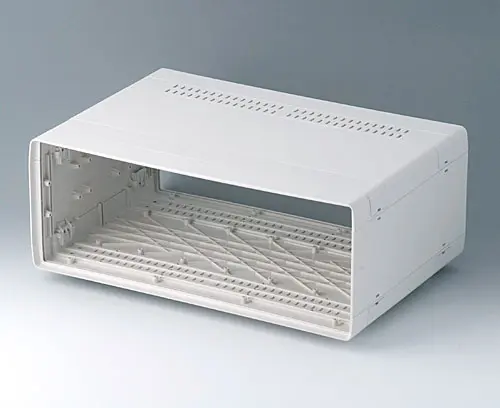

EURO CASE 63 TE, without handle
Modular construction without screws. Fixing support in the shells and side panels.
Supply2 shells, 2 side panels 2 HE, 1 snap-in panel without/with slots each, 1 snap-in panel without/with slots, with feet each
2D PDF Drawing
3D PDF View
3D/2D download
3D/2D download
Generate Your PDF Datasheet for A0236170
Please select the product details you would like to include in the PDF.
Add to my basket
Accessory to complete
A0336370

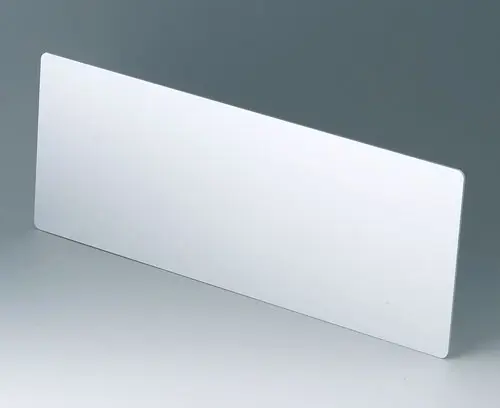

Front / rear panel 63 TE 3 HE
Front/rear panel for case 63 TE 3 HE.
Supply 1 front panel
A0336370
Front / rear panel 63 TE 3 HEproduct added to your list
matt anodised
357.8x135.2x2mm
Accessory "screws"
A0306031
Self-tapping screws 3 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0306031
Self-tapping screws 3 x 6 mm (PZ1)product added to your list
A0308031
Self-tapping screws 3 x 8 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0308031
Self-tapping screws 3 x 8 mm (PZ1)product added to your list
A0308132
Self-tapping screw 3 x 8 mm (T10)
Self-tapping screw with T10 Torx drive. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0308132
Self-tapping screw 3 x 8 mm (T10)product added to your list
Accessory
A0350007
Tilt foot
The tilt foot is used for canting the unit. It can be locked into the case bottom and is retractable.
Supply 1 tilt foot
A0350007
Tilt footproduct added to your list
off-white RAL 9002
Customising options for A0236170
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Technical Data
-
3D-Models & Drawings / Info
- Purchasing Data
Width
367 mm
Depth
250 mm
Height
143 mm
PCB length, base
350 mm
PCB width, base
220 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 547 KB
- AutoCAD DWG-File 1,183 KB
- AutoCAD DXF-File 4,767 KB
- 3D PDF View (Acrobat Reader) (turn the product 360°, blind components out for inside view, view accessories...) 5,508 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00009858.x_t 11,860 KB
- 00009858.STEP 22,872 KB
- 00009858.SAT 47,990 KB
Weight/1 part
987 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for A0236170 and don't forget to request a quotation!
