Accessories for enclosures
A9506117
Wall suspension element
Universal wall suspension element suitable for small plastic enclosures with a flat base.

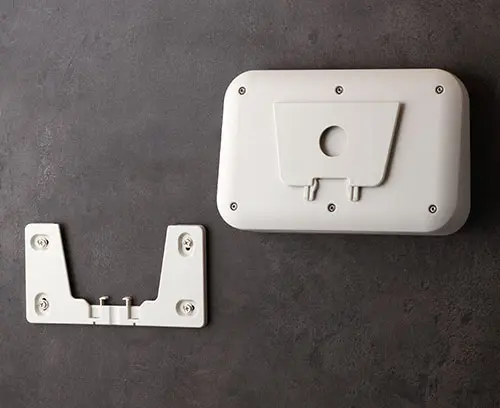

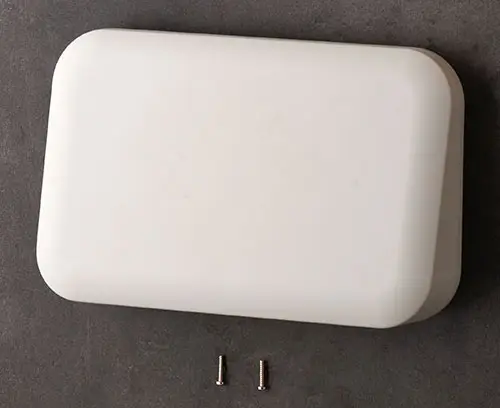

The adapter (106 x 75 mm) is attached to the bottom part of the enclosure by 4 screws. 4 boreholes ø 3.5 mm are required. The adapter makes it possible to clip the enclosure quickly and easily into the holder mounted on the wall. Optionally, the parts can be secured with 2 screws, thus offering additional protection against removal.
1 adapter, 1 holder, 4 Torx stainless steel screws, 2 securing screws
Generate Your PDF Datasheet for A9506117
Please select the product details you would like to include in the PDF.
Add to my basket
A9461107
EVOTEC 200, Vers. I

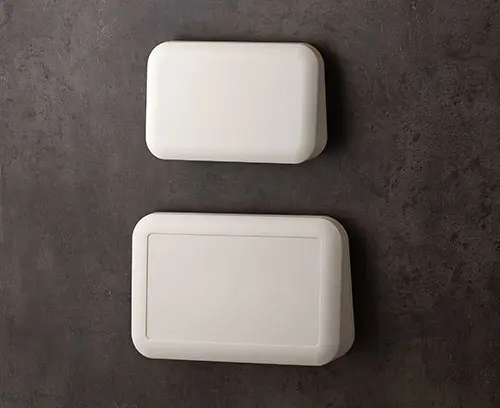

2-part plastic enclosure with flat top part. Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element ordered separately.
Version Top part "Flat"
Supply Top and bottom parts, assembly kit incl. 6 self-adhesive rubber feet
A9461107
EVOTEC 200, Vers. Iproduct added to your list
off-white RAL 9002
200x124x45mm
,
A9465107
EVOTEC 200, Vers. II
2-part plastic enclosure with operating panel ergonomically inclined by 12°. Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element ordered separately.
Version Top part "Desktop" without recess
Supply Top and bottom parts, assembly kit incl. 6 self-adhesive rubber feet
A9465107
EVOTEC 200, Vers. IIproduct added to your list
off-white RAL 9002
200x124x45mm
,
A9466107
EVOTEC 200, Vers. III
2-part plastic enclosure with operating panel ergonomically inclined by 12°. Top part with recessed area for protecting a membrane keypad or decor foil. Robust design. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element ordered separately.
Version Top part "Desktop", operating area recessed by 1 mm
Supply Top and bottom parts, assembly kit incl. 6 self-adhesive rubber feet
A9466107
EVOTEC 200, Vers. IIIproduct added to your list
off-white RAL 9002
200x124x45mm
,
A9481107
EVOTEC 250, Vers. I
2-part plastic enclosure with flat top part. Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element ordered separately.
Version Top part "Flat"
Supply Top and bottom parts, assembly kit incl. 6 self-adhesive rubber feet
A9481107
EVOTEC 250, Vers. Iproduct added to your list
off-white RAL 9002
250x155x54mm
,
A9485107
EVOTEC 250, Vers. II
2-part plastic enclosure with operating panel ergonomically inclined by 12°. Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element ordered separately.
Version Top part "Desktop" without recess
Supply Top and bottom parts, assembly kit incl. 6 self-adhesive rubber feet
A9485107
EVOTEC 250, Vers. IIproduct added to your list
off-white RAL 9002
250x155x54mm
,
A9486107
EVOTEC 250, Vers. III
2-part plastic enclosure with operating panel ergonomically inclined by 12°. Top part with recessed area for protecting a membrane keypad or decor foil. Robust design. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element ordered separately.
Version Top part "Desktop", operating area recessed by 1 mm
Supply Top and bottom parts, assembly kit incl. 6 self-adhesive rubber feet
A9486107
EVOTEC 250, Vers. IIIproduct added to your list
off-white RAL 9002
250x155x54mm
,
Customising options for A9506117
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
49 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for A9506117 and don't forget to request a quotation!
