Accessories for enclosures
A9030065
FLAT-PACK CASES 150 N, Vers. I
Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.
VersionWithout handle bar
Supply1 top and base part, assembly kit and 4 screws for the mounting of PCBs
2D PDF Drawing
3D PDF View
3D/2D download
3D/2D download
Generate Your PDF Datasheet for A9030065
Please select the product details you would like to include in the PDF.
Add to my basket
Accessory "wall/holder"
A9130000

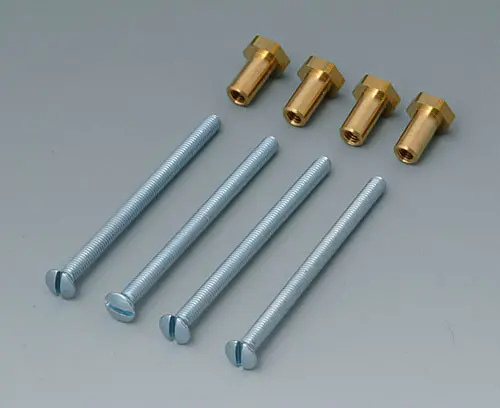

Assembly kit for wall mounting
Permits screw fixing from the front of the FLAT-PACK CASE A9030... when mounted to the wall.
Supply 1 assembly kit with 4/2 screws and counternuts
A9130000
Assembly kit for wall mountingproduct added to your list
B1360048
Wall suspension elements
Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.
Supply 1 wall suspension element, 1 adapter 58 x 128 mm, assembly kit
B1360048
Wall suspension elementsproduct added to your list
pebble grey RAL 7032
Accessory "screws"
A0306031
Self-tapping screws 3 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0306031
Self-tapping screws 3 x 6 mm (PZ1)product added to your list
A0308031
Self-tapping screws 3 x 8 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0308031
Self-tapping screws 3 x 8 mm (PZ1)product added to your list
A0308132
Self-tapping screw 3 x 8 mm (T10)
Self-tapping screw with T10 Torx drive. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0308132
Self-tapping screw 3 x 8 mm (T10)product added to your list
Accessory
A9210290
Anti-slide feet 9.5 x 3.8 mm
Rubber feet with self-adhesive foil facilitate a secure position.
Supply 2 rubber feet
A9210290
Anti-slide feet 9.5 x 3.8 mmproduct added to your list
A9250807
Tilt foot bar
Facilitates ergonomical reading angles, side lenght 81 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.
Supply 1 tilt foot bar, assembly kit
A9250807
Tilt foot barproduct added to your list
off-white RAL 9002
A9250817
Tilt foot bar
Facilitates ergonomical reading angles, side lenght 43 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.
Supply 1 tilt foot bar, assembly kit
A9250817
Tilt foot barproduct added to your list
off-white RAL 9002
Customising options for A9030065
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Technical Data
-
3D-Models & Drawings / Info
- Purchasing Data
Material
Protection class
Colour
Top part
off-white RAL 9002,
Bottom part pebble grey RAL 7032
Bottom part pebble grey RAL 7032
Standards
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
150 mm
Width
80 mm
Height
50 mm
PCB length, base
126 mm
PCB width, base
73 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 175 KB
- AutoCAD DWG-File 360 KB
- AutoCAD DXF-File 812 KB
- 3D PDF View (Acrobat Reader) (turn the product 360°, blind components out for inside view, view accessories...) 1,074 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00009883.x_t 968 KB
- 00009883.STEP 2,086 KB
- 00009883.SAT 2,083 KB
Weight/1 part
150 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for A9030065 and don't forget to request a quotation!
