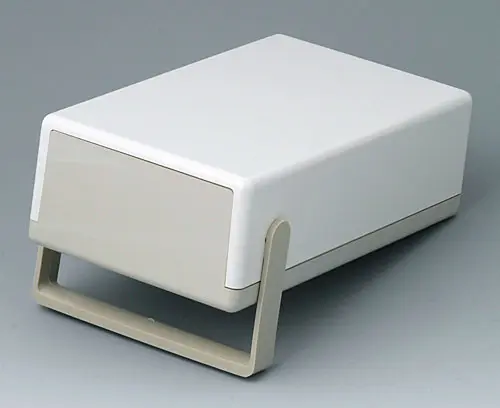

FLAT-PACK CASES 189 N, Vers. II
Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.
VersionWith handle bar
Supply1 top and base part, 4 M3-screws for case, 4 screws for the mounting of PCBs
2D PDF Drawing
3D PDF View
3D/2D download
3D/2D download
Generate Your PDF Datasheet for A9040165
Please select the product details you would like to include in the PDF.
Add to my basket
Accessory "screws"
A0306031
Self-tapping screws 3 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0306031
Self-tapping screws 3 x 6 mm (PZ1)product added to your list
A0308031
Self-tapping screws 3 x 8 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0308031
Self-tapping screws 3 x 8 mm (PZ1)product added to your list
A0308132
Self-tapping screw 3 x 8 mm (T10)
Self-tapping screw with T10 Torx drive. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0308132
Self-tapping screw 3 x 8 mm (T10)product added to your list
Accessory
A9100008

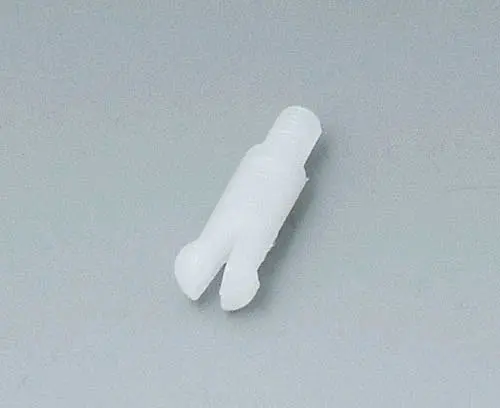

Snap-lock
Replaces the standard screw fixing of the case. Suitable for FLAT-PACK CASES A9040065-A9043265.
Supply 1 snap lock
A9100008
Snap-lockproduct added to your list
natural-coloured
A9210290
Anti-slide feet 9.5 x 3.8 mm
Rubber feet with self-adhesive foil facilitate a secure position.
Supply 2 rubber feet
A9210290
Anti-slide feet 9.5 x 3.8 mmproduct added to your list
Customising options for A9040165
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Technical Data
-
3D-Models & Drawings / Info
- Purchasing Data
Material
Protection class
Colour
Top part
off-white RAL 9002,
Bottom part pebble grey RAL 7032
Bottom part pebble grey RAL 7032
Standards
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
189 mm
Width
110 mm
Height
60 mm
PCB length, base
160 mm
PCB width, base
103 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 183 KB
- AutoCAD DWG-File 379 KB
- AutoCAD DXF-File 884 KB
- 3D PDF View (Acrobat Reader) (turn the product 360°, blind components out for inside view, view accessories...) 1,213 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00009889.x_t 1,262 KB
- 00009889.STEP 2,626 KB
- 00009889.SAT 3,553 KB
Weight/1 part
256 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
