Accessories for enclosures
A9325018

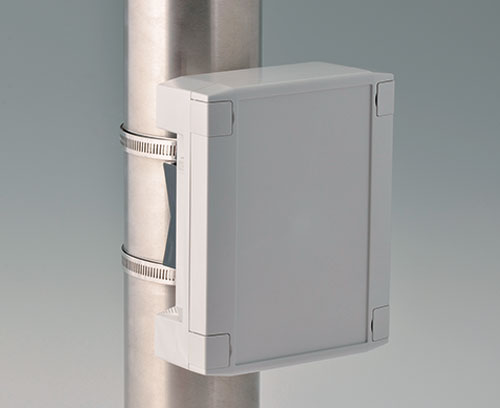

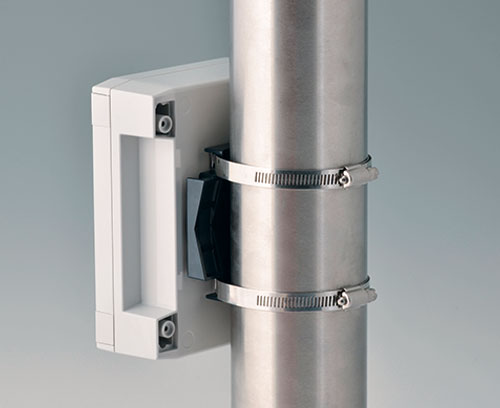

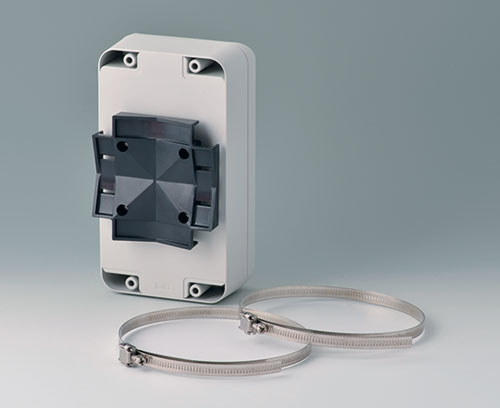

Pole/mast mounting bracket
For the secure and stable mounting of IP rated electronic enclosures to poles, masts, and pipes using cable ties or stainless steel screw bands, suitable for pole diameters from 30 mm. The bracket is attached to the rear of the enclosure (four drilled holes required) and is manufactured from UV resistant material.
Note:
Every application (environment, sealing requirements, enclosure size/version, mast diameter, etc.) is different. For this reason, no mounting screws, cable ties or stainless steel screw bands are supplied; only the mast/pipe bracket is included. However, on request, we can provide a wide range of solutions tailored precisely to the intended application.
1 pole/mast mounting bracket
2D PDF Drawing
3D/2D download
3D/2D download
Generate Your PDF Datasheet for A9325018
Please select the product details you would like to include in the PDF.
Add to my basket
A9413331
SHELL-TYPE CASES G 190, Vers. I
Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9413331
SHELL-TYPE CASES G 190, Vers. Iproduct added to your list
off-white RAL 9002
138x190x45mm
A9413341
SHELL-TYPE CASES G 190, Vers. I
Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9413341
SHELL-TYPE CASES G 190, Vers. Iproduct added to your list
off-white RAL 9002
138x190x68mm
A9413351
SHELL-TYPE CASES G 190, Vers. I
Two-part plastic case with closed front and rear. Top view with recessed area. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9413351
SHELL-TYPE CASES G 190, Vers. Iproduct added to your list
off-white RAL 9002
138x190x45.5mm
A9413441
SHELL-TYPE CASES G 190, Vers. I
Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9413441
SHELL-TYPE CASES G 190, Vers. Iproduct added to your list
off-white RAL 9002
138x190x91mm
A9461107
EVOTEC 200, Vers. I
2-part plastic enclosure with flat top part. Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element ordered separately.
Version Top part "Flat"
Supply Top and bottom parts, assembly kit incl. 6 self-adhesive rubber feet
A9461107
EVOTEC 200, Vers. Iproduct added to your list
off-white RAL 9002
200x124x45mm
,
A9465107
EVOTEC 200, Vers. II
2-part plastic enclosure with operating panel ergonomically inclined by 12°. Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element ordered separately.
Version Top part "Desktop" without recess
Supply Top and bottom parts, assembly kit incl. 6 self-adhesive rubber feet
A9465107
EVOTEC 200, Vers. IIproduct added to your list
off-white RAL 9002
200x124x45mm
,
A9466107
EVOTEC 200, Vers. III
2-part plastic enclosure with operating panel ergonomically inclined by 12°. Top part with recessed area for protecting a membrane keypad or decor foil. Robust design. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element ordered separately.
Version Top part "Desktop", operating area recessed by 1 mm
Supply Top and bottom parts, assembly kit incl. 6 self-adhesive rubber feet
A9466107
EVOTEC 200, Vers. IIIproduct added to your list
off-white RAL 9002
200x124x45mm
,
A9481107
EVOTEC 250, Vers. I
2-part plastic enclosure with flat top part. Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element ordered separately.
Version Top part "Flat"
Supply Top and bottom parts, assembly kit incl. 6 self-adhesive rubber feet
A9481107
EVOTEC 250, Vers. Iproduct added to your list
off-white RAL 9002
250x155x54mm
,
A9485107
EVOTEC 250, Vers. II
2-part plastic enclosure with operating panel ergonomically inclined by 12°. Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element ordered separately.
Version Top part "Desktop" without recess
Supply Top and bottom parts, assembly kit incl. 6 self-adhesive rubber feet
A9485107
EVOTEC 250, Vers. IIproduct added to your list
off-white RAL 9002
250x155x54mm
,
A9486107
EVOTEC 250, Vers. III
2-part plastic enclosure with operating panel ergonomically inclined by 12°. Top part with recessed area for protecting a membrane keypad or decor foil. Robust design. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element ordered separately.
Version Top part "Desktop", operating area recessed by 1 mm
Supply Top and bottom parts, assembly kit incl. 6 self-adhesive rubber feet
A9486107
EVOTEC 250, Vers. IIIproduct added to your list
off-white RAL 9002
250x155x54mm
,
B1070465
TOPTEC 194 H, Vers. II
Electronic case - high version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.
Version With ventilations slots
Supply 1 case-top and base, 2 end panels
B1070465
TOPTEC 194 H, Vers. IIproduct added to your list
off-white RAL 9002
194x115x68mm
B1075465
TOPTEC 194 F, Vers. II
Electronic case - flat version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.
Version With ventilations slots
Supply 1 case-top and base, 2 end panels
B1075465
TOPTEC 194 F, Vers. IIproduct added to your list
off-white RAL 9002
194x115x46mm
B3214101
NET-BOX 140, Vers. I
Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.
Version Bottom part without openings.
Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit
B3214101
NET-BOX 140, Vers. Iproduct added to your list
light grey RAL 7035
140x140x46.5mm
,
B3218101
NET-BOX 180, Vers. I
Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.
Version Bottom part without openings.
Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit
B3218101
NET-BOX 180, Vers. Iproduct added to your list
light grey RAL 7035
180x180x48.5mm
,
B3222101
NET-BOX 220, Vers. I
Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.
Version Bottom part without openings.
Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit
B3222101
NET-BOX 220, Vers. Iproduct added to your list
light grey RAL 7035
220x220x50.5mm
,
B3407011
SMART-TERMINAL 160
Robust and elegant enclosure with two-part aluminium profile (glass bead-blasted and anodised), designer seals in green and lava grey plastic side covers. Good access inside for installation and assembly work.
Horizontal guides and screw channels provided inside the case for fitting PCBs. Flat areas for easy installation of interfaces. Recessed area in the top for the protection of displays, membrane keypads and operating elements. Side covers with recessed area for protecting cables and connectors.
Each case is supplied with an assembly kit which includes the enclosure screws and sealing washers, plus two round cord seals for fitting between the top and the base profiles.
Accessories include a wall suspension element, case canting kit (for ergonomically canting the enclosure by 12°) and a set of square-head nuts for mounting a PCB or mounting plate.
Supply Top profile, base profile, set of designer seals in green, set of side covers, assembly kit
B3407011
SMART-TERMINAL 160product added to your list
matt anodised
202x170x50mm
B3407012
SMART-TERMINAL 160
Robust and elegant enclosure with two-part aluminium profile (glass bead-blasted and anodised), designer seals in volcano and lava grey plastic side covers. Good access inside for installation and assembly work.
Horizontal guides and screw channels provided inside the case for fitting PCBs. Flat areas for easy installation of interfaces. Recessed area in the top for the protection of displays, membrane keypads and operating elements. Side covers with recessed area for protecting cables and connectors.
Each case is supplied with an assembly kit which includes the enclosure screws and sealing washers, plus two round cord seals for fitting between the top and the base profiles.
Accessories include a wall suspension element, case canting kit (for ergonomically canting the enclosure by 12°) and a set of square-head nuts for mounting a PCB or mounting plate.
Supply Top profile, base profile, set of designer seals in volcano, set of side covers, assembly kit
B3407012
SMART-TERMINAL 160product added to your list
matt anodised
202x170x50mm
B3407013
SMART-TERMINAL 160
Robust enclosure with two-part aluminium profile (glass bead-blasted and anodised) and aluminium end plates.
Good access inside for installation and assembly work.
Horizontal guides and screw channels provided inside the case for fitting PCBs. Flat areas for easy installation of interfaces. Recessed area in the top for the protection of displays, membrane keypads and operating elements.
Accessories include a wall suspension element, case canting kit (for ergonomically canting the enclosure by 12°) and a set of square-head nuts for mounting a PCB or mounting plate.
Supply Top profile, base profile, 2 aluminium end plates, assembly kit incl. 4 anti-slide feet
B3407013
SMART-TERMINAL 160product added to your list
matt anodised
164x170x50mm
B3407021
SMART-TERMINAL 200
Robust and elegant enclosure with two-part aluminium profile (glass bead-blasted and anodised), designer seals in green and lava grey plastic side covers. Good access inside for installation and assembly work.
Horizontal guides and screw channels provided inside the case for fitting PCBs. Flat areas for easy installation of interfaces. Recessed area in the top for the protection of displays, membrane keypads and operating elements. Side covers with recessed area for protecting cables and connectors.
Each case is supplied with an assembly kit which includes the enclosure screws and sealing washers, plus two round cord seals for fitting between the top and the base profiles.
Accessories include a wall suspension element, case canting kit (for ergonomically canting the enclosure by 12°) and a set of square-head nuts for mounting a PCB or mounting plate.
Horizontal guides and screw channels provided inside the case for fitting PCBs. Flat areas for easy installation of interfaces. Recessed area in the top for the protection of displays, membrane keypads and operating elements. Side covers with recessed area for protecting cables and connectors.
Each case is supplied with an assembly kit which includes the enclosure screws and sealing washers, plus two round cord seals for fitting between the top and the base profiles.
Accessories include a wall suspension element, case canting kit (for ergonomically canting the enclosure by 12°) and a set of square-head nuts for mounting a PCB or mounting plate.
Supply Top profile, base profile, set of designer seals in green, set of side covers, assembly kit
B3407021
SMART-TERMINAL 200product added to your list
matt anodised
242x170x50mm
B3407022
SMART-TERMINAL 200
Robust and elegant enclosure with two-part aluminium profile (glass bead-blasted and anodised), designer seals in volcano and lava grey plastic side covers. Good access inside for installation and assembly work.
Horizontal guides and screw channels provided inside the case for fitting PCBs. Flat areas for easy installation of interfaces. Recessed area in the top for the protection of displays, membrane keypads and operating elements. Side covers with recessed area for protecting cables and connectors.
Each case is supplied with an assembly kit which includes the enclosure screws and sealing washers, plus two round cord seals for fitting between the top and the base profiles.
Accessories include a wall suspension element, case canting kit (for ergonomically canting the enclosure by 12°) and a set of square-head nuts for mounting a PCB or mounting plate.
Horizontal guides and screw channels provided inside the case for fitting PCBs. Flat areas for easy installation of interfaces. Recessed area in the top for the protection of displays, membrane keypads and operating elements. Side covers with recessed area for protecting cables and connectors.
Each case is supplied with an assembly kit which includes the enclosure screws and sealing washers, plus two round cord seals for fitting between the top and the base profiles.
Accessories include a wall suspension element, case canting kit (for ergonomically canting the enclosure by 12°) and a set of square-head nuts for mounting a PCB or mounting plate.
Supply Top profile, base profile, set of designer seals in volcano, set of side covers, assembly kit
B3407022
SMART-TERMINAL 200product added to your list
matt anodised
242x170x50mm
B3407023
SMART-TERMINAL 200
Robust enclosure with two-part aluminium profile (glass bead-blasted and anodised) and aluminium end plates.
Good access inside for installation and assembly work.
Horizontal guides and screw channels provided inside the case for fitting PCBs. Flat areas for easy installation of interfaces. Recessed area in the top for the protection of displays, membrane keypads and operating elements.
Accessories include a wall suspension element, case canting kit (for ergonomically canting the enclosure by 12°) and a set of square-head nuts for mounting a PCB or mounting plate.
Supply Top profile, base profile, 2 aluminium end plates, assembly kit incl. 4 anti-slide feet
B3407023
SMART-TERMINAL 200product added to your list
matt anodised
204x170x50mm
B3407031
SMART-TERMINAL 240
Robust and elegant enclosure with two-part aluminium profile (glass bead-blasted and anodised), designer seals in green and lava grey plastic side covers. Good access inside for installation and assembly work.
Horizontal guides and screw channels provided inside the case for fitting PCBs. Flat areas for easy installation of interfaces. Recessed area in the top for the protection of displays, membrane keypads and operating elements. Side covers with recessed area for protecting cables and connectors.
Each case is supplied with an assembly kit which includes the enclosure screws and sealing washers, plus two round cord seals for fitting between the top and the base profiles.
Accessories include a wall suspension element, case canting kit (for ergonomically canting the enclosure by 12°) and a set of square-head nuts for mounting a PCB or mounting plate.
Horizontal guides and screw channels provided inside the case for fitting PCBs. Flat areas for easy installation of interfaces. Recessed area in the top for the protection of displays, membrane keypads and operating elements. Side covers with recessed area for protecting cables and connectors.
Each case is supplied with an assembly kit which includes the enclosure screws and sealing washers, plus two round cord seals for fitting between the top and the base profiles.
Accessories include a wall suspension element, case canting kit (for ergonomically canting the enclosure by 12°) and a set of square-head nuts for mounting a PCB or mounting plate.
Supply Top profile, base profile, set of designer seals in green, set of side covers, assembly kit
B3407031
SMART-TERMINAL 240product added to your list
matt anodised
282x170x50mm
B3407032
SMART-TERMINAL 240
Robust and elegant enclosure with two-part aluminium profile (glass bead-blasted and anodised), designer seals in volcano and lava grey plastic side covers. Good access inside for installation and assembly work.
Horizontal guides and screw channels provided inside the case for fitting PCBs. Flat areas for easy installation of interfaces. Recessed area in the top for the protection of displays, membrane keypads and operating elements. Side covers with recessed area for protecting cables and connectors.
Each case is supplied with an assembly kit which includes the enclosure screws and sealing washers, plus two round cord seals for fitting between the top and the base profiles.
Accessories include a wall suspension element, case canting kit (for ergonomically canting the enclosure by 12°) and a set of square-head nuts for mounting a PCB or mounting plate.
Horizontal guides and screw channels provided inside the case for fitting PCBs. Flat areas for easy installation of interfaces. Recessed area in the top for the protection of displays, membrane keypads and operating elements. Side covers with recessed area for protecting cables and connectors.
Each case is supplied with an assembly kit which includes the enclosure screws and sealing washers, plus two round cord seals for fitting between the top and the base profiles.
Accessories include a wall suspension element, case canting kit (for ergonomically canting the enclosure by 12°) and a set of square-head nuts for mounting a PCB or mounting plate.
Supply Top profile, base profile, set of designer seals in volcano, set of side covers, assembly kit
B3407032
SMART-TERMINAL 240product added to your list
matt anodised
282x170x50mm
B3407033
SMART-TERMINAL 240
Robust enclosure with two-part aluminium profile (glass bead-blasted and anodised) and aluminium end plates.
Good access inside for installation and assembly work.
Horizontal guides and screw channels provided inside the case for fitting PCBs. Flat areas for easy installation of interfaces. Recessed area in the top for the protection of displays, membrane keypads and operating elements.
Accessories include a wall suspension element, case canting kit (for ergonomically canting the enclosure by 12°) and a set of square-head nuts for mounting a PCB or mounting plate.
Supply Top profile, base profile, 2 aluminium end plates, assembly kit incl. 4 anti-slide feet
B3407033
SMART-TERMINAL 240product added to your list
matt anodised
244x170x50mm
C2012121
ROBUST-BOX WIDTH 120, Vers. I
Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.
Supply 2 case shells with sealing, cover strips top and bottom, assembly kit
C2012121
ROBUST-BOX WIDTH 120, Vers. Iproduct added to your list
light grey RAL 7035
120x120x60mm
C2012122
ROBUST-BOX WIDTH 120, Vers. II
Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.
Supply 2 case shells with sealing, cover strips top and bottom, assembly kit
C2012122
ROBUST-BOX WIDTH 120, Vers. IIproduct added to your list
light grey RAL 7035
120x120x60mm
C2012201
ROBUST-BOX WIDTH 120, Vers. I
Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.
Supply 2 case shells with sealing, cover strips top and bottom, assembly kit
C2012201
ROBUST-BOX WIDTH 120, Vers. Iproduct added to your list
light grey RAL 7035
200x120x60mm
C2012202
ROBUST-BOX WIDTH 120, Vers. II
Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.
Supply 2 case shells with sealing, cover strips top and bottom, assembly kit
C2012202
ROBUST-BOX WIDTH 120, Vers. IIproduct added to your list
light grey RAL 7035
200x120x60mm
C2012241
ROBUST-BOX WIDTH 120, Vers. I
Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.
Supply 2 case shells with sealing, cover strips top and bottom, assembly kit
C2012241
ROBUST-BOX WIDTH 120, Vers. Iproduct added to your list
light grey RAL 7035
240x120x60mm
C2012242
ROBUST-BOX WIDTH 120, Vers, II
Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.
Supply 2 case shells with sealing, cover strips top and bottom, assembly kit
C2012242
ROBUST-BOX WIDTH 120, Vers, IIproduct added to your list
light grey RAL 7035
240x120x60mm
C2016161
ROBUST-BOX WIDTH 160, Vers. I
Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.
Supply 2 case shells with sealing, cover strips top and bottom, assembly kit
C2016161
ROBUST-BOX WIDTH 160, Vers. Iproduct added to your list
light grey RAL 7035
160x160x60mm
C2016162
ROBUST-BOX WIDTH 160, Vers. II
Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.
Supply 2 case shells with sealing, cover strips top and bottom, assembly kit
C2016162
ROBUST-BOX WIDTH 160, Vers. IIproduct added to your list
light grey RAL 7035
160x160x60mm
C2016241
ROBUST-BOX WIDTH 160, Vers. I
Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.
Supply 2 case shells with sealing, cover strips top and bottom, assembly kit
C2016241
ROBUST-BOX WIDTH 160, Vers. Iproduct added to your list
light grey RAL 7035
240x160x60mm
C2016242
ROBUST-BOX WIDTH 160, Vers. II
Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.
Supply 2 case shells with sealing, cover strips top and bottom, assembly kit
C2016242
ROBUST-BOX WIDTH 160, Vers. IIproduct added to your list
light grey RAL 7035
240x160x60mm
C2112121
ROBUST-BOX WIDTH 120, Vers. I
Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.
Supply 2 case shells with sealing, cover strips top and bottom, assembly kit
C2112121
ROBUST-BOX WIDTH 120, Vers. Iproduct added to your list
light grey RAL 7035
120x120x90mm
C2112122
ROBUST-BOX WIDTH 120, Vers. II
Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.
Supply 2 case shells with sealing, cover strips top and bottom, assembly kit
C2112122
ROBUST-BOX WIDTH 120, Vers. IIproduct added to your list
light grey RAL 7035
120x120x90mm
C2112201
ROBUST-BOX WIDTH 120, Vers. I
Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.
Supply 2 case shells with sealing, cover strips top and bottom, assembly kit
C2112201
ROBUST-BOX WIDTH 120, Vers. Iproduct added to your list
light grey RAL 7035
200x120x90mm
C2112202
ROBUST-BOX WIDTH 120, Vers. II
Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.
Supply 2 case shells with sealing, cover strips top and bottom, assembly kit
C2112202
ROBUST-BOX WIDTH 120, Vers. IIproduct added to your list
light grey RAL 7035
200x120x90mm
C2112241
ROBUST-BOX WIDTH 120, Vers. I
Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.
Supply 2 case shells with sealing, cover strips top and bottom, assembly kit
C2112241
ROBUST-BOX WIDTH 120, Vers. Iproduct added to your list
light grey RAL 7035
240x120x90mm
C2112242
ROBUST-BOX WIDTH 120, Vers. II
Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.
Supply 2 case shells with sealing, cover strips top and bottom, assembly kit
C2112242
ROBUST-BOX WIDTH 120, Vers. IIproduct added to your list
light grey RAL 7035
240x120x90mm
C2116161
ROBUST-BOX WIDTH 160, Vers. I
Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.
Supply 2 case shells with sealing, cover strips top and bottom, assembly kit
C2116161
ROBUST-BOX WIDTH 160, Vers. Iproduct added to your list
light grey RAL 7035
160x160x90mm
C2116162
ROBUST-BOX WIDTH 160, Vers. II
Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.
Supply 2 case shells with sealing, cover strips top and bottom, assembly kit
C2116162
ROBUST-BOX WIDTH 160, Vers. IIproduct added to your list
light grey RAL 7035
160x160x90mm
C2116241
ROBUST-BOX WIDTH 160, Vers. I
Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.
Supply 2 case shells with sealing, cover strips top and bottom, assembly kit
C2116241
ROBUST-BOX WIDTH 160, Vers. Iproduct added to your list
light grey RAL 7035
240x160x90mm
C2116242
ROBUST-BOX WIDTH 160, Vers. II
Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.
Supply 2 case shells with sealing, cover strips top and bottom, assembly kit
C2116242
ROBUST-BOX WIDTH 160, Vers. IIproduct added to your list
light grey RAL 7035
240x160x90mm
C2120301
ROBUST-BOX WIDTH 200, Vers. I
Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.
Supply 2 case shells with sealing, cover strips top and bottom, assembly kit
C2120301
ROBUST-BOX WIDTH 200, Vers. Iproduct added to your list
light grey RAL 7035
300x200x80mm
C2124361
ROBUST-BOX WIDTH 240, Vers. I
Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.
Supply 2 case shells with sealing, cover strips top and bottom, assembly kit
C2124361
ROBUST-BOX WIDTH 240, Vers. Iproduct added to your list
light grey RAL 7035
360x240x80mm
C2416241
ROBUST-BOX WIDTH 160, Vers. I
Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.
Supply 2 case shells with sealing, cover strips top and bottom, assembly kit
C2416241
ROBUST-BOX WIDTH 160, Vers. Iproduct added to your list
light grey RAL 7035
240x160x120mm
C2416242
ROBUST-BOX WIDTH 160, Vers. II
Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.
Supply 2 case shells with sealing, cover strips top and bottom, assembly kit
C2416242
ROBUST-BOX WIDTH 160, Vers. IIproduct added to your list
light grey RAL 7035
240x160x120mm
C2420301
ROBUST-BOX WIDTH 200, Vers. I
Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.
Supply 2 case shells with sealing, cover strips top and bottom, assembly kit
C2420301
ROBUST-BOX WIDTH 200, Vers. Iproduct added to your list
light grey RAL 7035
300x200x120mm
C2424361
ROBUST-BOX WIDTH 240, Vers. I
Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.
Supply 2 case shells with sealing, cover strips top and bottom, assembly kit
C2424361
ROBUST-BOX WIDTH 240, Vers. Iproduct added to your list
light grey RAL 7035
360x240x120mm
C2520301
ROBUST-BOX WIDTH 200, Vers. I
Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Lid fixing outside of sealed area. Recess of approx. 0.8 mm for use of membrane keyboards.
Supply 2 case shells with sealing, cover strips top and bottom, assembly kit
C2520301
ROBUST-BOX WIDTH 200, Vers. Iproduct added to your list
light grey RAL 7035
300x200x160mm
C2524361
ROBUST-BOX WIDTH 240, Vers. I
Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards.
Supply 2 case shells with sealing, cover strips top and bottom, assembly kit
C2524361
ROBUST-BOX WIDTH 240, Vers. Iproduct added to your list
light grey RAL 7035
360x240x160mm
C6011141
SMART-BOX WIDTH 110
Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.
Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention
C6011141
SMART-BOX WIDTH 110product added to your list
light grey RAL 7035
140x110x60mm
C6011201
SMART-BOX WIDTH 110
Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.
Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention
C6011201
SMART-BOX WIDTH 110product added to your list
light grey RAL 7035
200x110x60mm
C6013161
SMART-BOX WIDTH 130
Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.
Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention
C6013161
SMART-BOX WIDTH 130product added to your list
light grey RAL 7035
160x130x60mm
C6013221
SMART-BOX WIDTH 130
Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.
Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention
C6013221
SMART-BOX WIDTH 130product added to your list
light grey RAL 7035
220x130x60mm
C6015181
SMART-BOX WIDTH 150
Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Recessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.
Supply 1 base and top part with sealing, 2 trims (hinged), assembly kit incl. cover retention
C6015181
SMART-BOX WIDTH 150product added to your list
light grey RAL 7035
180x150x60mm
C6017281
SMART-BOX WIDTH 170
Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.
Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention
C6017281
SMART-BOX WIDTH 170product added to your list
light grey RAL 7035
280x170x60mm
C7013031
IN-BOX
Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.
Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration
C7013031
IN-BOXproduct added to your list
light grey RAL 7035
124x122x55mm
, ,
C7013032
IN-BOX
Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.
Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration
C7013032
IN-BOXproduct added to your list
light grey RAL 7035
124x122x55mm
, ,
C7013034
IN-BOX
Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.
Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration
C7013034
IN-BOXproduct added to your list
light grey RAL 7035
124x122x55mm
, ,
C7013035
IN-BOX
Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.
Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration
C7013035
IN-BOXproduct added to your list
light grey RAL 7035
124x122x55mm
, ,
C7013051
IN-BOX
Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.
Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration
C7013051
IN-BOXproduct added to your list
light grey RAL 7035
124x122x85mm
, ,
C7013054
IN-BOX
Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.
Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration
C7013054
IN-BOXproduct added to your list
light grey RAL 7035
124x122x85mm
, ,
C7013055
IN-BOX
Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.
Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration
C7013055
IN-BOXproduct added to your list
light grey RAL 7035
124x122x85mm
, ,
C7016061
IN-BOX
Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.
Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration
C7016061
IN-BOXproduct added to your list
light grey RAL 7035
162x122x90mm
, ,
C7016062
IN-BOX
Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.
Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration
C7016062
IN-BOXproduct added to your list
light grey RAL 7035
162x122x90mm
, ,
C7016064
IN-BOX
Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.
Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration
C7016064
IN-BOXproduct added to your list
light grey RAL 7035
162x122x90mm
, ,
C7016065
IN-BOX
Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.
Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration
C7016065
IN-BOXproduct added to your list
light grey RAL 7035
162x122x90mm
, ,
C7020041
IN-BOX
Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.
Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration
C7020041
IN-BOXproduct added to your list
light grey RAL 7035
202x122x75mm
, ,
C7020042
IN-BOX
Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.
Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration
C7020042
IN-BOXproduct added to your list
light grey RAL 7035
202x122x75mm
, ,
C7020044
IN-BOX
Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.
Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration
C7020044
IN-BOXproduct added to your list
transparent
202x122x75mm
, ,
C7020045
IN-BOX
Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.
Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration
C7020045
IN-BOXproduct added to your list
transparent
202x122x75mm
, ,
C7020061
IN-BOX
Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.
Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration
C7020061
IN-BOXproduct added to your list
light grey RAL 7035
202x122x90mm
, ,
C7020064
IN-BOX
Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.
Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration
C7020064
IN-BOXproduct added to your list
light grey RAL 7035
202x122x90mm
, ,
C7020065
IN-BOX
Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.
Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration
C7020065
IN-BOXproduct added to your list
light grey RAL 7035
202x122x90mm
, ,
C7021071
IN-BOX
Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.
Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration
C7021071
IN-BOXproduct added to your list
light grey RAL 7035
202x152x90mm
, ,
C7021072
IN-BOX
Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.
Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration
C7021072
IN-BOXproduct added to your list
light grey RAL 7035
202x152x90mm
, ,
C7021075
IN-BOX
Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.
Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration
C7021075
IN-BOXproduct added to your list
light grey RAL 7035
202x152x90mm
, ,
C7025081
IN-BOX
Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.
Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration
C7025081
IN-BOXproduct added to your list
light grey RAL 7035
252x162x90mm
, ,
C7025082
IN-BOX
Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.
Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration
C7025082
IN-BOXproduct added to your list
light grey RAL 7035
252x162x90mm
, ,
C7025084
IN-BOX
Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.
Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration
C7025084
IN-BOXproduct added to your list
light grey RAL 7035
252x162x90mm
, ,
C7025085
IN-BOX
Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.
Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration
C7025085
IN-BOXproduct added to your list
light grey RAL 7035
252x162x90mm
, ,
C7025091
IN-BOX
Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.
Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration
C7025091
IN-BOXproduct added to your list
light grey RAL 7035
252x162x120mm
, ,
C7025094
IN-BOX
Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.
Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration
C7025094
IN-BOXproduct added to your list
light grey RAL 7035
252x162x120mm
, ,
C7025095
IN-BOX
Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.
Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration
C7025095
IN-BOXproduct added to your list
light grey RAL 7035
252x162x120mm
, ,
C7030101
IN-BOX
Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.
Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration
C7030101
IN-BOXproduct added to your list
light grey RAL 7035
302x232x90mm
, ,
C7030102
IN-BOX
Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.
Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration
C7030102
IN-BOXproduct added to your list
light grey RAL 7035
302x232x90mm
, ,
C7030104
IN-BOX
Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.
Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration
C7030104
IN-BOXproduct added to your list
light grey RAL 7035
302x232x90mm
, ,
C7030105
IN-BOX
Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.
Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration
C7030105
IN-BOXproduct added to your list
light grey RAL 7035
302x232x90mm
, ,
C7030111
IN-BOX
Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.
Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration
C7030111
IN-BOXproduct added to your list
light grey RAL 7035
302x232x110mm
, ,
C7030112
IN-BOX
Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.
Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration
C7030112
IN-BOXproduct added to your list
light grey RAL 7035
302x232x110mm
, ,
C7030114
IN-BOX
Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.
Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration
C7030114
IN-BOXproduct added to your list
light grey RAL 7035
302x232x110mm
, ,
C7030115
IN-BOX
Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.
Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration
C7030115
IN-BOXproduct added to your list
light grey RAL 7035
302x232x110mm
, ,
C8014181
SOLID-BOX 145
Functional, high-quality industrial enclosure – robust, waterproof and stylish. Highly polished enclosure surface with design trims for concealed screw connection outside the sealed area. The seal is already inserted in the top part. Recessed operating area in the top protects a membrane keypad or design foil.
Fastening pillars for PCBs or mounting plates in the bottom and top parts. Bottom part also with two pillars for mounting a DIN rail and with pre-moulded mounts for use with VESA 75x75 standard holders.
Plastic material with increased heat distortion temperature (Vicat/B 120 = 110°C), UL registration 94 V-0 from 1.5 mm, glow wire flammability index (GWFI): 960°C at 2.0 mm, chlorine- and bromine-free flame resistance.
Fastening pillars for PCBs or mounting plates in the bottom and top parts. Bottom part also with two pillars for mounting a DIN rail and with pre-moulded mounts for use with VESA 75x75 standard holders.
Plastic material with increased heat distortion temperature (Vicat/B 120 = 110°C), UL registration 94 V-0 from 1.5 mm, glow wire flammability index (GWFI): 960°C at 2.0 mm, chlorine- and bromine-free flame resistance.
Supply 1 bottom and 1 top part with seal, 4 design trims, assembly kit
C8014181
SOLID-BOX 145product added to your list
anthracite grey RAL 7016
180x145x60mm
, ,
C8014182
SOLID-BOX 145
Functional, high-quality industrial enclosure – robust, waterproof and stylish. Highly polished enclosure surface with design trims for concealed screw connection outside the sealed area. The seal is already inserted in the top part. Recessed operating area in the top protects a membrane keypad or design foil.
Fastening pillars for PCBs or mounting plates in the bottom and top parts. Bottom part also with two pillars for mounting a DIN rail and with pre-moulded mounts for use with VESA 75x75 standard holders.
Plastic material with increased heat distortion temperature (Vicat/B 120 = 110°C), UL registration 94 V-0 from 1.5 mm, glow wire flammability index (GWFI): 960°C at 2.0 mm, chlorine- and bromine-free flame resistance.
Fastening pillars for PCBs or mounting plates in the bottom and top parts. Bottom part also with two pillars for mounting a DIN rail and with pre-moulded mounts for use with VESA 75x75 standard holders.
Plastic material with increased heat distortion temperature (Vicat/B 120 = 110°C), UL registration 94 V-0 from 1.5 mm, glow wire flammability index (GWFI): 960°C at 2.0 mm, chlorine- and bromine-free flame resistance.
Supply 1 bottom and 1 top part with seal, 4 design trims, assembly kit
C8014182
SOLID-BOX 145product added to your list
light grey RAL 7035
180x145x60mm
, ,
C8017221
SOLID-BOX 175
Functional, high-quality industrial enclosure – robust, waterproof and stylish. Highly polished enclosure surface with design trims for concealed screw connection outside the sealed area. The seal is already inserted in the top part. Recessed operating area in the top protects a membrane keypad or design foil.
Fastening pillars for PCBs or mounting plates in the bottom and top parts. Bottom part also with two pillars for mounting a DIN rail and with pre-moulded mounts for use with VESA 100x100 standard holders.
Plastic material with increased heat distortion temperature (Vicat/B 120 = 110°C), UL registration 94 V-0 from 1.5 mm, glow wire flammability index (GWFI): 960°C at 2.0 mm, chlorine- and bromine-free flame resistance.
Fastening pillars for PCBs or mounting plates in the bottom and top parts. Bottom part also with two pillars for mounting a DIN rail and with pre-moulded mounts for use with VESA 100x100 standard holders.
Plastic material with increased heat distortion temperature (Vicat/B 120 = 110°C), UL registration 94 V-0 from 1.5 mm, glow wire flammability index (GWFI): 960°C at 2.0 mm, chlorine- and bromine-free flame resistance.
Supply 1 bottom and 1 top part with seal, 4 design trims, assembly kit
C8017221
SOLID-BOX 175product added to your list
anthracite grey RAL 7016
225x175x70mm
, ,
C8017222
SOLID-BOX 175
Functional, high-quality industrial enclosure – robust, waterproof and stylish. Highly polished enclosure surface with design trims for concealed screw connection outside the sealed area. The seal is already inserted in the top part. Recessed operating area in the top protects a membrane keypad or design foil.
Fastening pillars for PCBs or mounting plates in the bottom and top parts. Bottom part also with two pillars for mounting a DIN rail and with pre-moulded mounts for use with VESA 100x100 standard holders.
Plastic material with increased heat distortion temperature (Vicat/B 120 = 110°C), UL registration 94 V-0 from 1.5 mm, glow wire flammability index (GWFI): 960°C at 2.0 mm, chlorine- and bromine-free flame resistance.
Fastening pillars for PCBs or mounting plates in the bottom and top parts. Bottom part also with two pillars for mounting a DIN rail and with pre-moulded mounts for use with VESA 100x100 standard holders.
Plastic material with increased heat distortion temperature (Vicat/B 120 = 110°C), UL registration 94 V-0 from 1.5 mm, glow wire flammability index (GWFI): 960°C at 2.0 mm, chlorine- and bromine-free flame resistance.
Supply 1 bottom and 1 top part with seal, 4 design trims, assembly kit
C8017222
SOLID-BOX 175product added to your list
light grey RAL 7035
225x175x70mm
, ,
- Technical Data
-
3D-Models & Drawings / Info
- Purchasing Data
Width
100 mm
Height
100 mm
Depth
20 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 249 KB
- AutoCAD DWG-File 483 KB
- AutoCAD DXF-File 1,883 KB
Weight/1 part
47 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
China
