B4142597

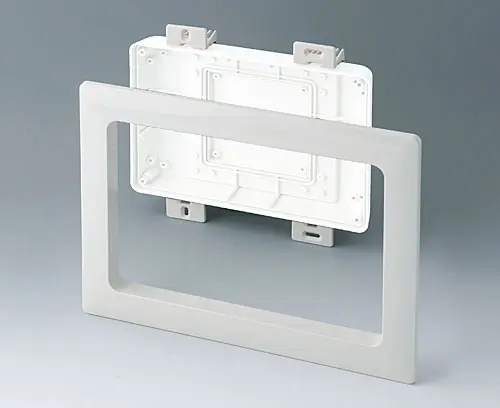

Installation assembly kit S, high

For the installation of the INTERFACE-TERMINAL enclosure in walls, in front panels, machines or systems. Can only be used in conjunction with bottom panel or open rear side of enclosure. Easy installation: Mount holders on the fully assembled enclosure. Place the enclosure with holders in the wall/front panel and align it. Mark and drill mounting holes. Then bolt the enclosure with the holders from the front and push on the design frame.

Version

Holders matches bottom part, high

Supply

4 holders, assembly kit, design frame

2D PDF Drawing
3D PDF View
3D/2D download

Generate Your PDF Datasheet for B4142597

Please select the product details you would like to include in the PDF.

Add to my basket Add to my basket Add to my basket
product added to your list
continue or open your product list

System components to complete

B4042407 Cover S

B4042407

Cover S Assembly unit: suitable for bottom part vers. I. For protecting the electronics. Integrated screw pillars for PCB fixing. Recessed operating area for protecting the membrane keyboard. Fixing from the rear.

Supply 1 cover, assembly kit

B4042407

Cover S
product added to your list

off-white RAL 9002
190x135x14mm

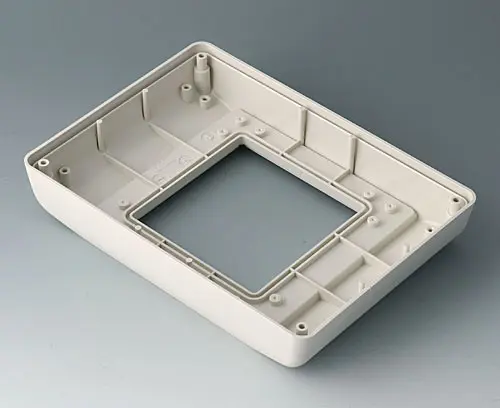

B4042757 Bottom part S high, version I

B4042757

Bottom part S high, version I Assembly unit: unique variety of applications -mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.

Version Suitable for mounting cover or aluminium front panel (sep. article)

Supply 1 bottom part high

B4042757

Bottom part S high, version I
product added to your list

off-white RAL 9002
190x135x34.5mm

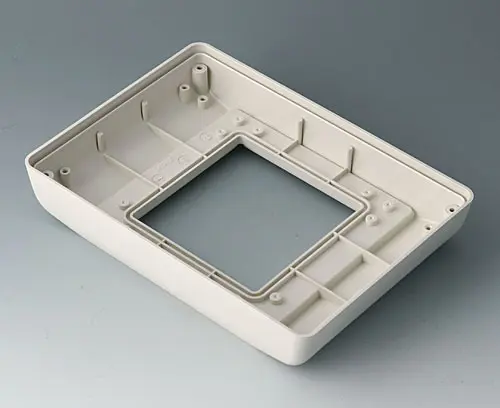

B4042767 Bottom part S high, version II

B4042767

Bottom part S high, version II Assembly unit: unique variety of applications -mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.

Version Suitable for mounting ABS front panel or glass panel (sep. article)

Supply 1 bottom part high

B4042767

Bottom part S high, version II
product added to your list

off-white RAL 9002
190x135x34.5mm

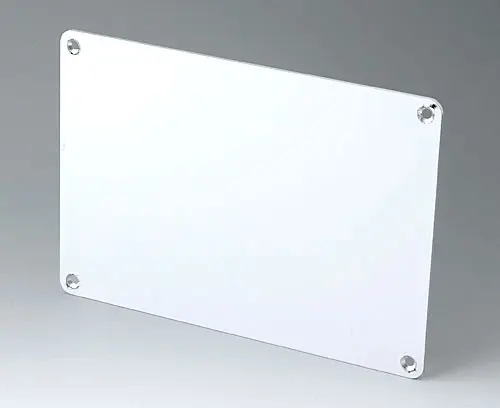

B4142106 Front panel S

B4142106

Front panel S Assembly unit: suitable for bottom part vers. I. For mounting operating elements of all kinds.

Supply 1 front panel, assembly kit

B4142106

Front panel S
product added to your list

matt anodised
186.5x131.5x2mm

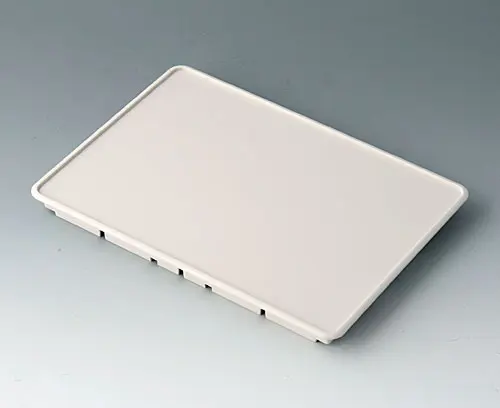

B4142107 Front panel S

B4142107

Front panel S Assembly unit: suitable for bottom part vers. II. For mounting operating elements of all kinds.

Supply 1 front panel, assembly kit

B4142107

Front panel S
product added to your list

off-white RAL 9002
190.6x135.6x14.5mm

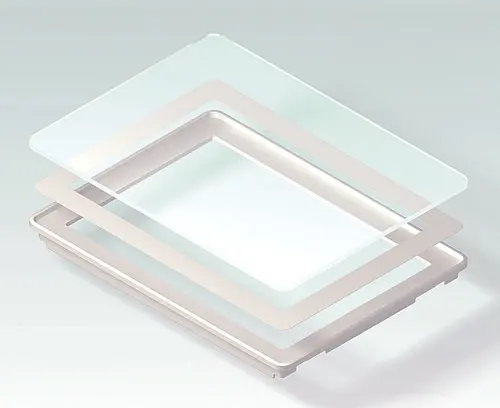

B4142203 Glass panel S

B4142203

Glass panel S Assembly unit: suitable for bottom part vers. II. Front design without printing. Various media and environmental parameters affect the adhesion of the adhesive foil. Please check before use if it is suitable for your application.

Version Safety glass with anti-reflex coating, high scratch-resistance, very easy to clean

Supply 1 glass panel incl. mounting frame and adhesive foil

B4142203

Glass panel S
product added to your list

clear
190.6x135.6x16.7mm
B4142257 Bottom panel with snap-in strips S

B4142257

Bottom panel with snap-in strips S Assembly unit: suitable for bottom part vers. I and II, screw fixing.

Supply 1 bottom panel, 2 snap-in strips, assembly kit

B4142257

Bottom panel with snap-in strips S
product added to your list

off-white RAL 9002

Accessory "protection"

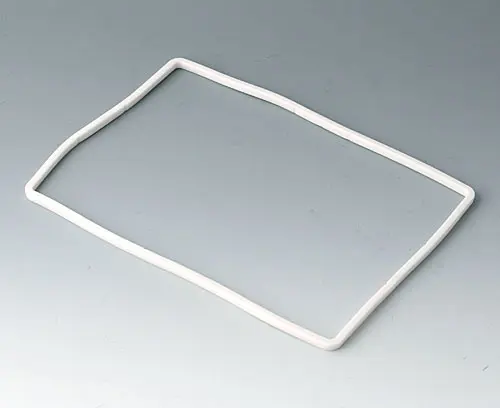

B4142005 Sealing S (bottom part - front design)

B4142005

Sealing S (bottom part - front design) For a higher protection class. Suitable between bottom part and front design (cover / aluminium front panel / ABS front panel or glass panel).

Supply 1 sealing

B4142005

Sealing S (bottom part - front design)
product added to your list

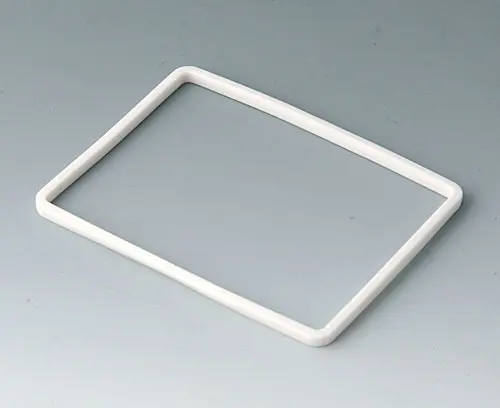

B4142006 Sealing S (bottom part - base/bot. panel/bat. comp...)

B4142006

Sealing S (bottom part - base/bot. panel/bat. comp...) For a higher protection class. Suitable between
- bottom part and base / bottom panel / battery compartment respectively
- base and base cover (station for charging station, case deposit mobile).

Supply 1 sealing

B4142006

Sealing S (bottom part - base/bot. panel/bat. comp...)
product added to your list

Customising options for B4142597

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Material

Colour
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
Width
234 mm
Height
185 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Group)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
125 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany

Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for B4142597 and don't forget to request a quotation!
