Accessories for enclosures
B3120167

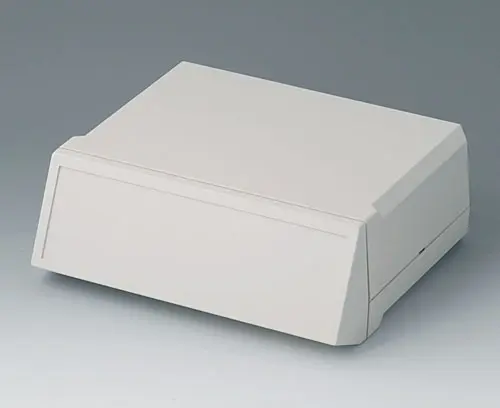

Sloping control panel M, flat/high
Suitable for MOTEC M B3020127 and B3020147 with flat base and high top part. The ergonomically sloped control front with resecced area for membrane keyboards will be slided in the guiding groove.
Supply1 sloping control panel
2D PDF Drawing
3D/2D download
3D/2D download
Generate Your PDF Datasheet for B3120167
Please select the product details you would like to include in the PDF.
Add to my basket
B3020127
MOTEC M, flat/high
Desk top case with flat base and high top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory.
Supply 1 top and base part, 4 self-adhesive case feet
B3020127
MOTEC M, flat/highproduct added to your list
off-white RAL 9002
205x140x75mm
B3020147
MOTEC M, with handle bar
Desk top case with handle bar in version with flat base and high top part. With 30 degress indexing. Front and rear part open. Screw tower for PCBs and vertical guides for mounting panels. Front panels as accessory.
Supply 1 top and base part, handle bar, 4 self-adhesive case feet
B3020147
MOTEC M, with handle barproduct added to your list
off-white RAL 9002
205x140x75mm
Customising options for B3120167
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Technical Data
-
3D-Models & Drawings / Info
- Purchasing Data
Keypad length
186.7 mm
Keypad width
54.4 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 226 KB
- AutoCAD DWG-File 628 KB
- AutoCAD DXF-File 2,146 KB
Weight/1 part
74 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for B3120167 and don't forget to request a quotation!
