B3218101

NET-BOX 180, Vers. I

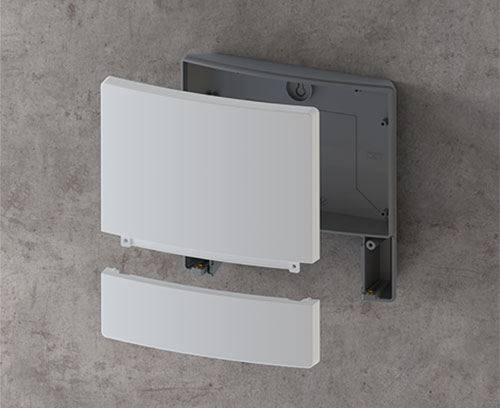

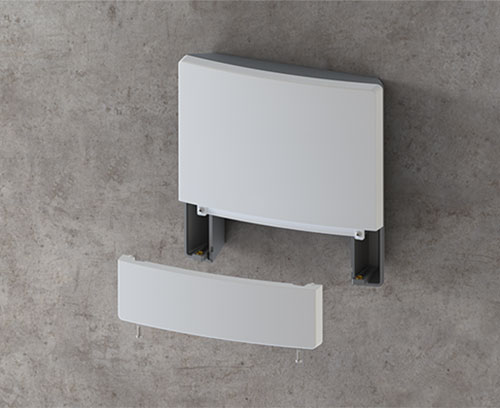

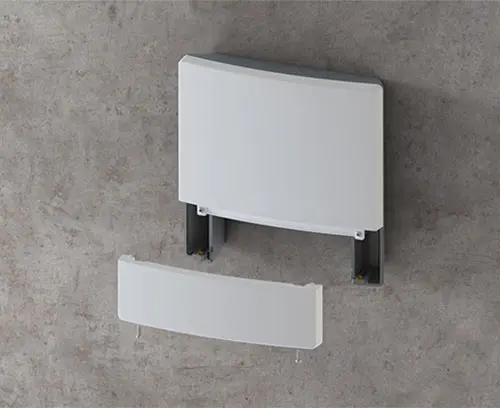

Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.

Version

Bottom part without openings.

Supply

1 bottom part and 1 top cover, 1 lid and 1 assembly kit

2D PDF Drawing
3D PDF View
3D/2D download

Generate Your PDF Datasheet for B3218101

Please select the product details you would like to include in the PDF.

Add to my basket Add to my basket Add to my basket
product added to your list
continue or open your product list

Accessory "protection"

B3318159 Sealing kit 180

B3318159

Sealing kit 180 Application: for increasing the protection class, of NET-BOX 180.

Supply 1 sealing kit

B3318159

Sealing kit 180
product added to your list

black

Accessory "wall/holder"

A9325018 Pole/mast mounting bracket

A9325018

Pole/mast mounting bracket

For the secure and stable mounting of IP rated electronic enclosures to poles, masts, and pipes using cable ties or stainless steel screw bands, suitable for pole diameters from 30 mm. The bracket is attached to the rear of the enclosure (four drilled holes required) and is manufactured from UV resistant material.

Note:
Every application (environment, sealing requirements, enclosure size/version, mast diameter, etc.) is different. For this reason, no mounting screws, cable ties or stainless steel screw bands are supplied; only the mast/pipe bracket is included. However, on request, we can provide a wide range of solutions tailored precisely to the intended application.

Supply 1 pole/mast mounting bracket

A9325018

Pole/mast mounting bracket
product added to your list

anthracite grey RAL 7016
100x100x20mm

Accessory "screws"

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
product added to your list

Accessory

A9207150 Anti-slide feet 6.5 x 2 mm

A9207150

Anti-slide feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

A9207150

Anti-slide feet 6.5 x 2 mm
product added to your list
transparent
B3318918 Infill cover 180

B3318918

Infill cover 180 With the optional cover you also have the option of fitting a further PCB and visually closing the bottom part of the enclosure.

Supply 1 infill cover

B3318918

Infill cover 180
product added to your list

lava

Customising options for B3218101

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Material

Protection class

Necessary accessories: sealing kit,
Colour
Top cover and lid light grey RAL 7035,
Bottom part lava
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Width
180 mm
Height
180 mm
Depth
48.5 mm
PCB length, base
112 mm
PCB width, base
154 mm
PCB length, top
114 mm
PCB width, top
168 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
302 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany

Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for B3218101 and don't forget to request a quotation!
