NET-BOX 180, Vers. II

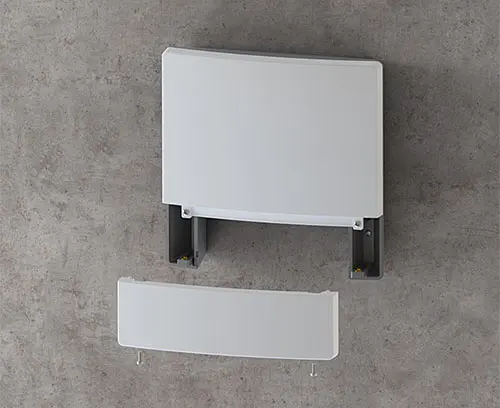

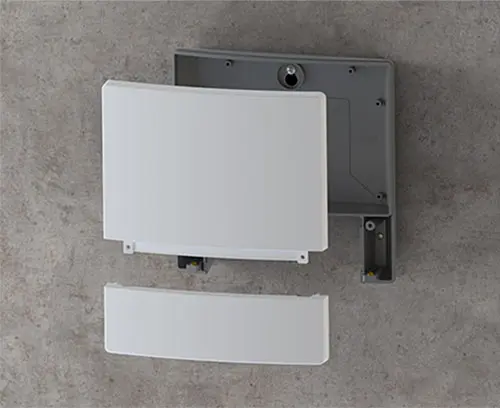

Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.

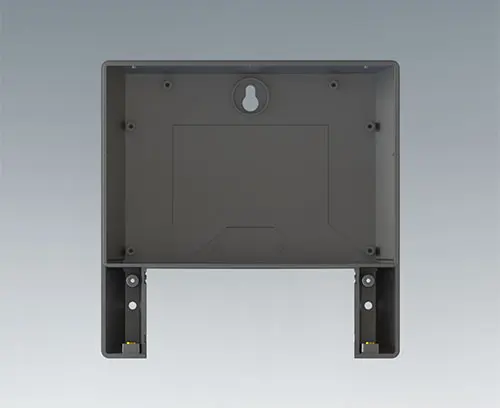

VersionBottom part with openings for concealed three-point wall mounting: 1 keyhole for central mounting and 2 holes to secure the enclosure on the bottom right and left.
Supply1 bottom part and 1 top cover, 1 lid and 1 assembly kit
2D PDF Drawing
3D PDF View
3D/2D download
3D/2D download
Generate Your PDF Datasheet for B3218201
Please select the product details you would like to include in the PDF.
Add to my basket
Accessory "protection"
B3318159
Sealing kit 180
Application: for increasing the protection class, of NET-BOX 180.
Supply 1 sealing kit
B3318159
Sealing kit 180product added to your list
black
Accessory "screws"
A0306031
Self-tapping screws 3 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0306031
Self-tapping screws 3 x 6 mm (PZ1)product added to your list
Accessory
A9207150
Anti-slide feet 6.5 x 2 mm
Rubber feet with self-adhesive foil facilitate a secure position.
Supply 2 rubber feet
A9207150
Anti-slide feet 6.5 x 2 mmproduct added to your list
B3318918
Infill cover 180
With the optional cover you also have the option of fitting a further PCB and visually closing the bottom part of the enclosure.
Supply 1 infill cover
B3318918
Infill cover 180product added to your list
lava
Customising options for B3218201
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Technical Data
-
3D-Models & Drawings / Info
- Application Examples
- Purchasing Data
Material
Protection class
Necessary accessories: sealing kit
Colour
Top cover and lid
light grey RAL 7035,
Bottom part lava
Bottom part lava
Standards
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Width
180 mm
Height
180 mm
Depth
48.5 mm
PCB length, base
112 mm
PCB width, base
154 mm
PCB length, top
114 mm
PCB width, top
168 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 357 KB
- AutoCAD DWG-File 1,157 KB
- AutoCAD DXF-File 4,231 KB
- 3D PDF View (Acrobat Reader) (turn the product 360°, blind components out for inside view, view accessories...) 1,481 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00026619.x_t 5,388 KB
- 00026619.step 14,023 KB
- 00026619.sat 13,858 KB
Weight/1 part
302 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for B3218201 and don't forget to request a quotation!
