Snaptec

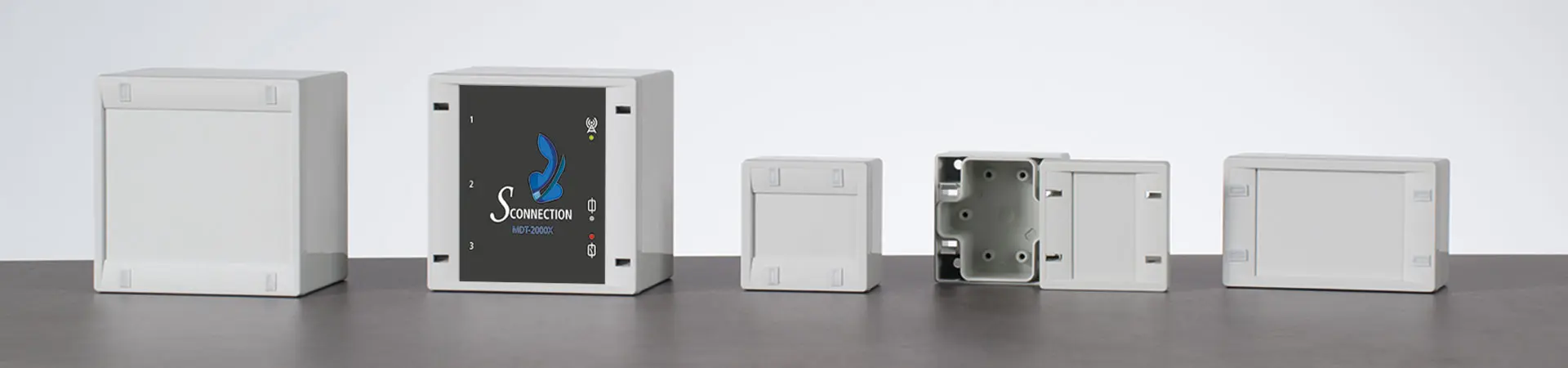

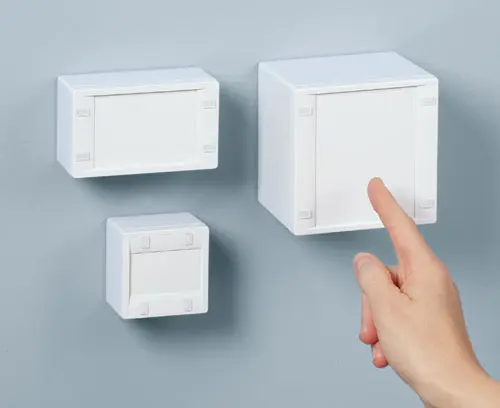

Fast assembly IP 65 plastic enclosures
These practical enclosures feature a rational snap-together assembly technique for faster installation of the electronics/electrical components.
- modern low cost wall mount enclosures
- snap-on lids for easier assembly

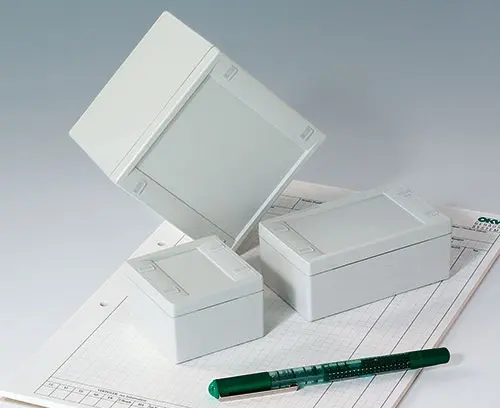

- high bottom parts guarantee maximum surface area for fitting cable glands and interfaces

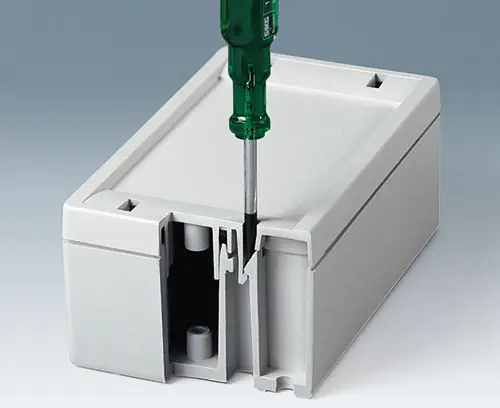

- fast disassembly/servicing with opening tool or screw driver

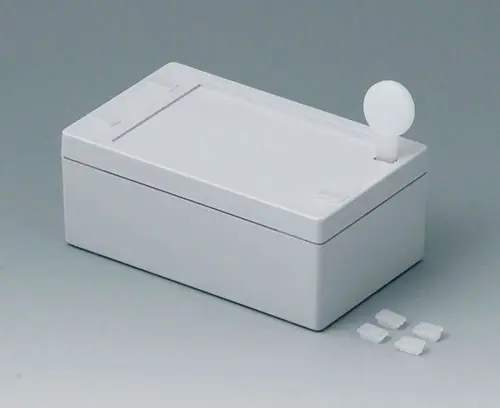

- nylon opening tool and cover plugs for access holes included

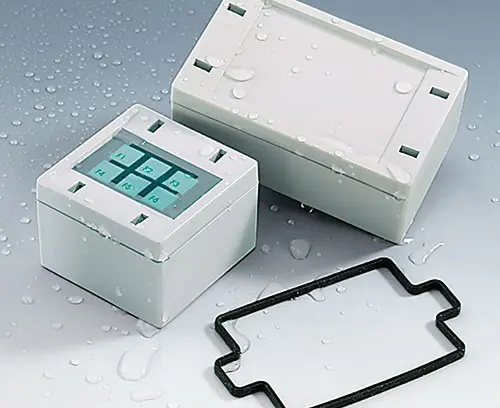

- high protection class IP 65; sealing gasket pre-fitted in the top

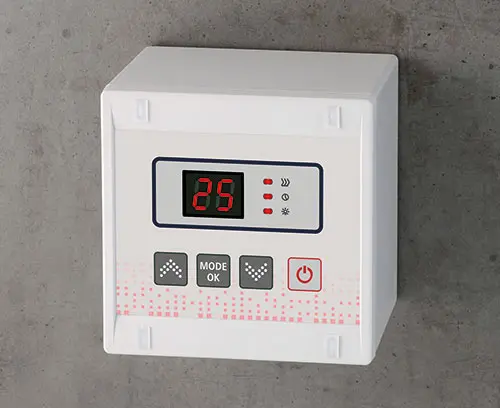

- recess in the lid for a membrane keypad or label

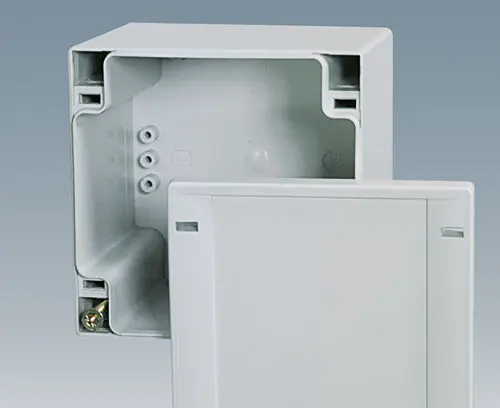

- hidden screw shafts for easy wall mounting
- alternative external wall mounting brackets

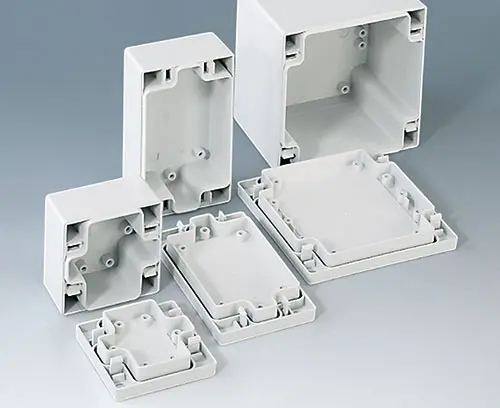

- internal screw pillars for PCBs etc.
Application Fields
Small devices with electro-technical components for low voltage, e.g. potentiometers, time controllers, coded control units etc. Or applications for low voltage with electro-mechanical components e.g. relays, under voltage no-close release, fuses etc. Also, medical and home automation systems.
C3006061
SNAPTEC 60 x 60
Top and base parts are fitted together using a unique snap-in machanism. Fixing towers in top and base part. Recessed area for membrane keyboards. Simple, invisible wall-mounting in pre-moulded shafts within the base part.
Supply 1 top and base part with sealing, cover for the locking openings, dismantling key
C3006061
SNAPTEC 60 x 60product added to your list
light grey RAL 7035
60x60x40mm
C3006101
SNAPTEC 60 x 100
Top and base parts are fitted together using a unique snap-in machanism. Fixing towers in top and base part. Recessed area for membrane keyboards. Simple, invisible wall-mounting in pre-moulded shafts within the base part.
Supply 1 top and base part with sealing, covers for the locking openings, dismantling key
C3006101
SNAPTEC 60 x 100product added to your list
light grey RAL 7035
60x100x40mm
C3010101
SNAPTEC 100 x 100
Top and base parts are fitted together using a unique snap-in machanism. Fixing towers in top and base part. Recessed area for membrane keyboards. Simple, invisible wall-mounting in pre-moulded shafts within the base part.
Supply 1 top and base part with sealing, covers for the locking openings, dismantling key
C3010101
SNAPTEC 100 x 100product added to your list
light grey RAL 7035
100x100x80mm
A0306031
Self-tapping screws 3 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0306031
Self-tapping screws 3 x 6 mm (PZ1)product added to your list
C2299028

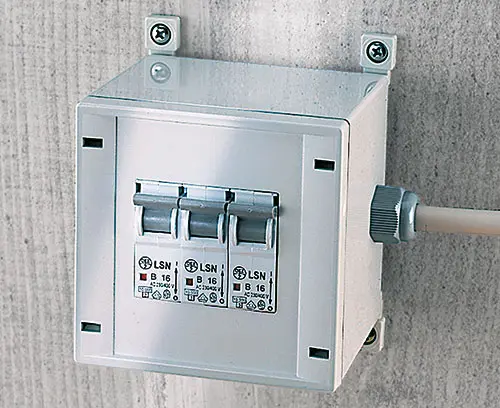

Wall mounting brackets
Elements for exterior wall mounting after assembly of the unit.
Supply 4 pieces including fixing elements
C2299028
Wall mounting bracketsproduct added to your list
light grey RAL 7035
C2306917
Pressure equalisation element M6x0.75
Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 6.5 L/min - 0.25 bar; 16.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).
Airflow: 6.5 L/min - 0.25 bar; 16.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).
Supply 1 pressure equalisation element, 1 seal washer, 1 nut
C2306917
Pressure equalisation element M6x0.75product added to your list
light grey RAL 7035
C2310917
Pressure equalisation element M10x1
Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 19.5 L/min - 0.25 bar; 43.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).
Airflow: 19.5 L/min - 0.25 bar; 43.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).
Supply 1 pressure equalisation element, 1 seal washer, 1 nut
C2310917
Pressure equalisation element M10x1product added to your list
light grey RAL 7035
C2316147
Cable grommet
Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 0.5 - 3 mm and for cable diameters from 5 - 10 mm. Operating temperatures from -40°C to +100°C. Borehole ø 16.5 mm.
Supply 1 cable grommet
C2316147
Cable grommetproduct added to your list
light grey RAL 7035
C2320137
Cable grommet
Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 1 - 4 mm and for cable diameters from 8 - 13 mm. Operating temperatures from -40°C to +100°C. Borehole ø 20.5 mm.
Supply 1 cable grommet
C2320137
Cable grommetproduct added to your list
light grey RAL 7035
C2320147
Cable grommet
Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 0.5 - 3 mm and for cable diameters from 6 - 13 mm. Operating temperatures from -40°C to +100°C. Borehole ø 20.5 mm.
Supply 1 cable grommet
C2320147
Cable grommetproduct added to your list
light grey RAL 7035

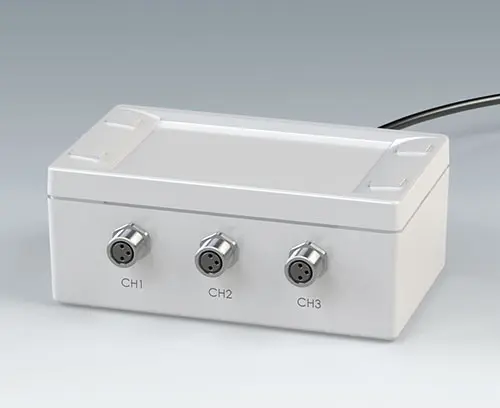

Customising options for Snaptec
What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
