Accessories for enclosures
B6503121
RAILTEC B, 4 modules, Vers. VI
Enclosure with open connection sides - for max. 8 terminal guards in flat version, 4 terminal guards in high version or 4 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.
VersionIndividual configuration see accessories
Supply1 base part with locking clip, 1 top part
2D PDF Drawing
3D PDF View
3D/2D download
3D/2D download
Generate Your PDF Datasheet for B6503121
Please select the product details you would like to include in the PDF.
Add to my basket
Accessory "wall/holder"
B6600334
Wall suspension elements
For direct mounting on walls. Assembly without screws in the base part (RAILTEC B).
Supply 2 pieces as kit
B6600334
Wall suspension elementsproduct added to your list
black
Accessory "terminals"

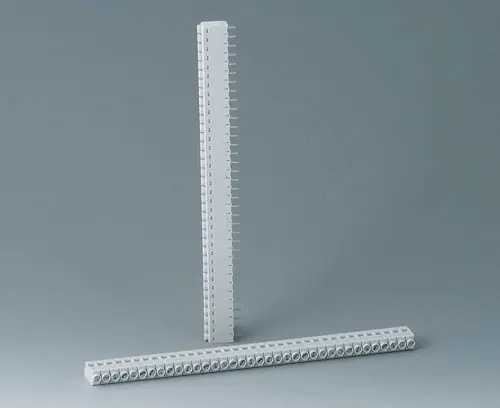

B6600111
Terminal block, block 5.0
PCB terminal block, 5.0. 36-pin.
Supply 1 piece
B6600111
Terminal block, block 5.0product added to your list
light grey
B6607111
Terminal block, block 5.0
PCB terminal block, 5.0. 6-pin.
Supply 1 piece
B6607111
Terminal block, block 5.0product added to your list

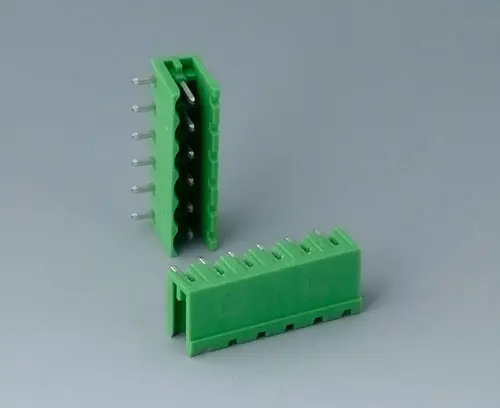

B6608222
Plug header, block 5.08
Male terminal block, 5.08. 6-pin.
Supply 1 piece
B6608222
Plug header, block 5.08product added to your list
B6608223
Plug header, block 5.08
Female terminal block, 5.08. 6-pin.
Supply 1 piece
B6608223
Plug header, block 5.08product added to your list
Accessory "terminal guards"
B6607140
Terminal guards, flat
Easy assembly through snap-in installation of the case parts.
Version Closed
Supply 1 piece
B6607140
Terminal guards, flatproduct added to your list
light grey
B6607141
Terminal guards, flat
Easy assembly through snap-in installation of the case parts.
Version With ventilation slots
Supply 1 piece
B6607141
Terminal guards, flatproduct added to your list
light grey
B6607142
Terminal guards, flat
Easy assembly through snap-in installation of the case parts.
Version For terminal block, block 5.0, 6-poles
Supply 1 piece
B6607142
Terminal guards, flatproduct added to your list
light grey
B6607143
Terminal guards, flat
Easy assembly through snap-in installation of the case parts.
Version Perforated, for block 5.0
Supply 1 piece
B6607143
Terminal guards, flatproduct added to your list
light grey
B6607145
KNX Cover, flat
Easy assembly through snap-in installation of the case parts.
Version For KNX connector
Supply 1 piece
B6607145
KNX Cover, flatproduct added to your list
light grey

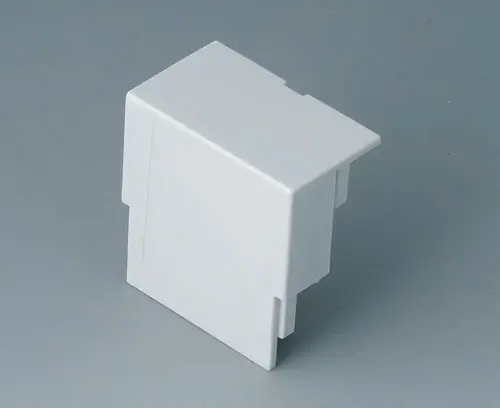

B6607160
Terminal guards, high
Easy assembly through snap-in installation of the case parts.
Version Closed
Supply 1 piece
B6607160
Terminal guards, highproduct added to your list
light grey
B6607161
Terminal guards, high
Easy assembly through snap-in installation of the case parts.
Version With ventilation slots
Supply 1 piece
B6607161
Terminal guards, highproduct added to your list
light grey

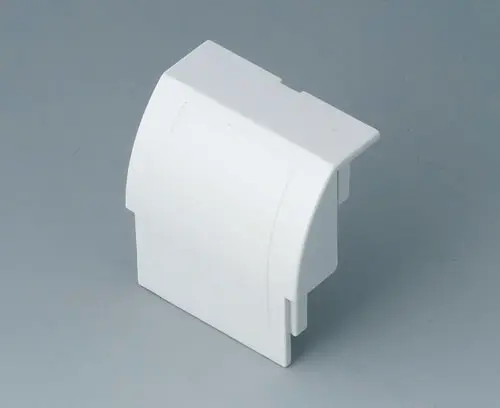

B6607162
Terminal guards, high
Easy assembly through snap-in installation of the case parts.
Version Convex, closed
Supply 1 piece
B6607162
Terminal guards, highproduct added to your list
light grey
B6607163
Terminal guards, high
Easy assembly through snap-in installation of the case parts.

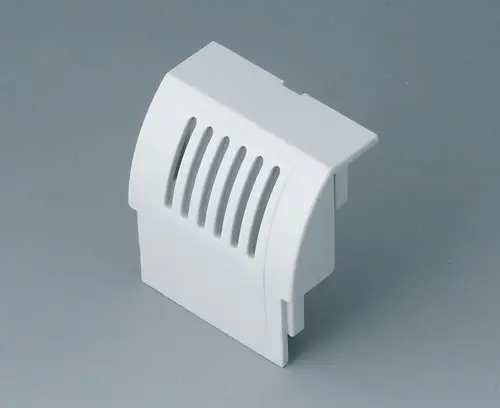

Version Convex, with ventilation slots
Supply 1 piece
B6607163
Terminal guards, highproduct added to your list
light grey
B6607191

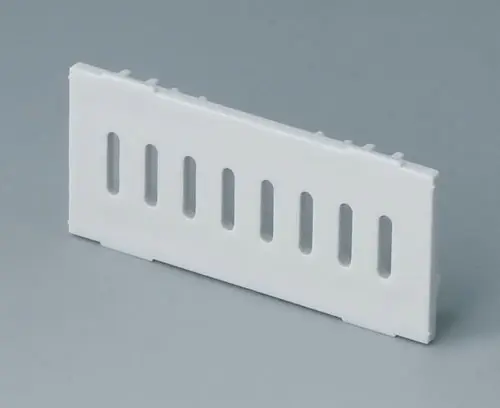

Partition plate
Separates the electronic and terminal area when used without terminal guard (undermost level). Connections externally accessible. Simple insertion into the guides.
Version With ventilation slots
Supply 1 piece
B6607191
Partition plateproduct added to your list
light grey
Accessory "screws"
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)product added to your list
Accessory
B6603100
Lid, 4 modules
Locking lid for protecting the display and operating elements.
Supply 1 lid
B6603100
Lid, 4 modulesproduct added to your list
transparent

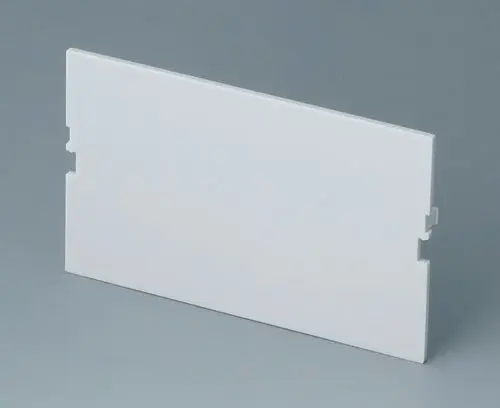

B6603180
Front panel, 4 modules, Vers. VI
Snap-in.
Supply 1 front panel
B6603180
Front panel, 4 modules, Vers. VIproduct added to your list
light grey
67x42mm

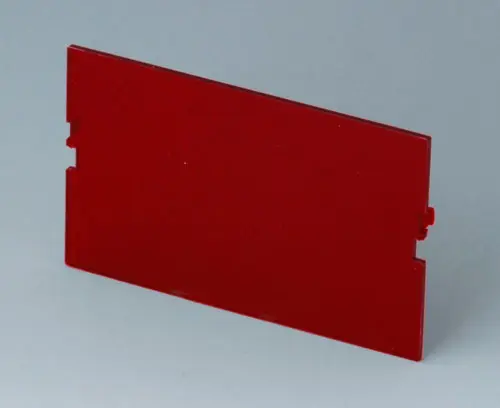

B6603480
Front panel, 4 modules, Vers. VI
Snap-in.
Supply 1 front panel
B6603480
Front panel, 4 modules, Vers. VIproduct added to your list
red transparent
67x42mm

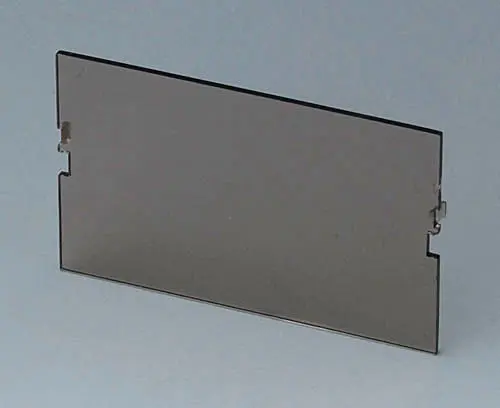

B6603580
Front panel, 4 modules, Vers. VI
Snap-in.
Supply 1 front panel
B6603580
Front panel, 4 modules, Vers. VIproduct added to your list
smoked glass
67x42mm
Customising options for B6503121
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Technical Data
-
3D-Models & Drawings / Info
- Purchasing Data
Material
Top part
Bottom part
Colour
Top part
light grey RAL 7035,
Bottom part black,
Locking clip black
Bottom part black,
Locking clip black
Standards
Width
70 mm
Height
90 mm
Depth
58 mm
PCB length, base
82 mm
PCB width, base
64 mm
Pitch
5.0 mm
Poles
≤ 48
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 220 KB
- AutoCAD DWG-File 464 KB
- AutoCAD DXF-File 1,609 KB
- 3D PDF View (Acrobat Reader) (turn the product 360°, blind components out for inside view, view accessories...) 1,669 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00010032.x_t 4,346 KB
- 00010032.STEP 9,459 KB
- 00010032.SAT 18,314 KB
Miscellaneous information
- Max. size of PCB in mm 568 KB
Weight/1 part
42 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Denmark
Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for B6503121 and don't forget to request a quotation!
