Accessories for enclosures
B6511112
RAILTEC B, 2 modules, Vers. XII

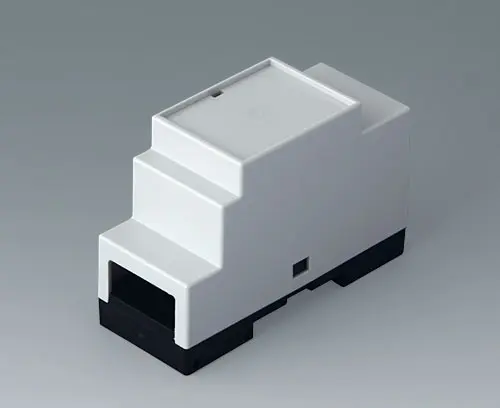

Enclosure for applications where larger components/assemblies need to be fitted inside. Different connection levels flat or high for individual configuration. Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing pillars for the PCB. Vertical and horizontal guides for additional PCBs.
VersionFor plug header (5-poles) blocks 5.0 / 5.08
Supply1 base part with locking clip, 1 top part
2D PDF Drawing
3D PDF View
3D/2D download
3D/2D download
Generate Your PDF Datasheet for B6511112
Please select the product details you would like to include in the PDF.
Add to my basket
Accessory "wall/holder"
B6600334
Wall suspension elements
For direct mounting on walls. Assembly without screws in the base part (RAILTEC B).
Supply 2 pieces as kit
B6600334
Wall suspension elementsproduct added to your list
black
Accessory "terminals"
B6601222
Plug header, block 5.08
Male terminal block, 5.08. 5-pin.
Supply 1 piece
B6601222
Plug header, block 5.08product added to your list
B6601223
Plug header, block 5.08
Female terminal block, 5.08. 5-pin.
Supply 1 piece
B6601223
Plug header, block 5.08product added to your list
Accessory "screws"
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)product added to your list
Accessory
B6601100
Lid, 2 modules
Locking lid for protecting the display and operating elements.
Supply 1 lid
B6601100
Lid, 2 modulesproduct added to your list
transparent
Customising options for B6511112
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Technical Data
-
3D-Models & Drawings / Info
- Purchasing Data
Material
Top part
Bottom part
Colour
Top part
light grey RAL 7035,
Bottom part black,
Locking clip black
Bottom part black,
Locking clip black
Standards
Width
35 mm
Height
86 mm
Depth
58 mm
PCB length, base
82 mm
PCB width, base
29.4 mm
Poles
≤ 5
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 215 KB
- AutoCAD DWG-File 441 KB
- AutoCAD DXF-File 1,495 KB
- 3D PDF View (Acrobat Reader) (turn the product 360°, blind components out for inside view, view accessories...) 211 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00022330.x_t 1,628 KB
- 00022330.step 3,697 KB
- 00022330.sat 3,100 KB
Miscellaneous information
- Max. size of PCB in mm 568 KB
Weight/1 part
31 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Denmark
Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for B6511112 and don't forget to request a quotation!
