Accessories for enclosures
B6522102
RAILTEC BP, M22, closed/with ventilation slots

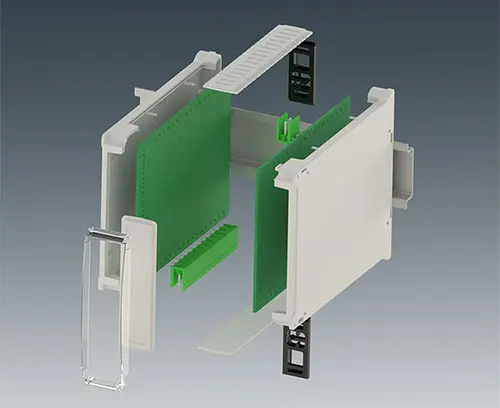

DIN rail enclosure with pluggable side panels (1 side panel closed, 1 side panel with ventilation slots) and front panel. For plug headers max. 1 x 16-pin, 5.08, fixed or pluggable. Simple and quick assembly by locking onto DIN rails EN 60715 TH35. The panel version provides simple and flexible installation of the electronics as well as efficient, screwless case assembly.
Minimum order quantity: 10 pieces or multiples
1 side panel closed, 1 side panel with ventilation slots
Supplyin packaging units of 10 cases (each enclosure consists of 2 case shells, 1 side panel closed, 1 side panel with ventilation slots, 1 front panel, 2 locking clips)
2D PDF Drawing
3D PDF View
3D/2D download
3D/2D download
Generate Your PDF Datasheet for B6522102
Please select the product details you would like to include in the PDF.
Add to my basket
Accessory "protection"
B6622101
Hinged cover
Hinged convex cover for RAILTEC BP, M22. Can be swivelled up or down. Protects electronics, interfaces and/or operating elements.
Minimum order quantity: 10 pieces or multiples
Minimum order quantity: 10 pieces or multiples
Supply in packaging units of 10 pieces
B6622101
Hinged coverproduct added to your list
Accessory "terminals"
B6600222
Plug header, block 5.08
Male terminal block, 5.08. 3-pin.
Supply 1 piece
B6600222
Plug header, block 5.08product added to your list
B6601222
Plug header, block 5.08
Male terminal block, 5.08. 5-pin.
Supply 1 piece
B6601222
Plug header, block 5.08product added to your list
B6602222
Plug header, block 5.08
Male terminal block, 5.08. 9-pin.
Supply 1 piece
B6602222
Plug header, block 5.08product added to your list
B6605222
Plug header, block 5.08
Male terminal block, 5.08. 13-pin.
Supply 1 piece
B6605222
Plug header, block 5.08product added to your list
B6606222
Plug header, block 5.08
Male terminal block, 5.08. 2-pin.
Supply 1 piece
B6606222
Plug header, block 5.08product added to your list
B6608222
Plug header, block 5.08
Male terminal block, 5.08. 6-pin.
Supply 1 piece
B6608222
Plug header, block 5.08product added to your list
Accessory
B6522801
Front panel
Front panel for RAILTEC BP, M22 as an accessory for replacement purposes.
Minimum order quantity: 10 pieces or multiples
Minimum order quantity: 10 pieces or multiples
Supply in packaging units of 10 pieces
B6522801
Front panelproduct added to your list
light grey RAL 7035
B6522811
Side panel closed
Side panel closed for RAILTEC BP, M22 as an accessory for replacement purposes.
Minimum order quantity: 10 pieces or multiples
Minimum order quantity: 10 pieces or multiples
Supply in packaging units of 10 pieces
B6522811
Side panel closedproduct added to your list
light grey RAL 7035
B6522821
Side panel with ventilation slots
Side panel with ventilation slots for RAILTEC BP, M22 as an accessory for replacement purposes.
Minimum order quantity: 10 pieces or multiples
Minimum order quantity: 10 pieces or multiples
Supply in packaging units of 10 pieces
B6522821
Side panel with ventilation slotsproduct added to your list
light grey RAL 7035
Customising options for B6522102
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Technical Data
-
3D-Models & Drawings / Info
- Purchasing Data
Width
95 mm
Height
23 mm
Depth
113 mm
Pitch
5.08 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 203 KB
- AutoCAD DWG-File 519 KB
- AutoCAD DXF-File 2,008 KB
- 3D PDF View (Acrobat Reader) (turn the product 360°, blind components out for inside view, view accessories...) 408 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00029628.x_t 2,295 KB
- 00029628.STEP 3,116 KB
- 00029628.sat 3,927 KB
Weight/1 part
59 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Denmark
Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for B6522102 and don't forget to request a quotation!
