RAILTEC SUP. 107, end section with foot

Modular design with plug-in connection. Minimum components for one support: 2 end sections. Combining these parts with intermediate parts (sep. articles) allows optimum adaptation to the relevant size requirements. The PCB widths are obtained by adding the relevant dimensions of the individual parts. Suitable for DIN EN 60715 (TH35).

Supply

1 end section with foot

2D PDF Drawing
3D PDF View
3D/2D download

Generate Your PDF Datasheet for B6724445

Please select the product details you would like to include in the PDF.

Add to my basket Add to my basket Add to my basket
product added to your list
continue or open your product list

System components to complete

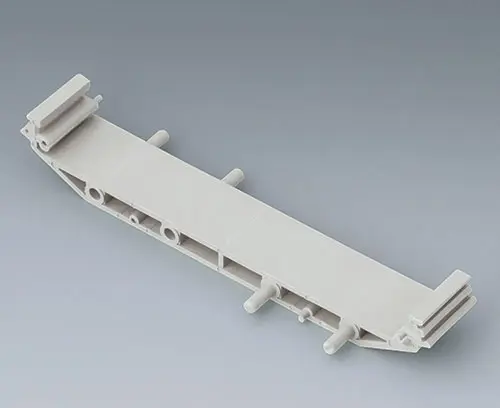

B6724440 RAILTEC SUP. 107, intermediate part

B6724440

RAILTEC SUP. 107, intermediate part Intermediate parts allow optimum adaptation to the relevant size requirements. Modular design with plug-in connection. 2 end sections with/without foot (sep. articles) necessary. The PCB widths are obtained by adding the relevant dimensions of the individual parts.

Supply 1 intermediate part

B6724440

RAILTEC SUP. 107, intermediate part
product added to your list

light grey
118x18.5x17.5mm

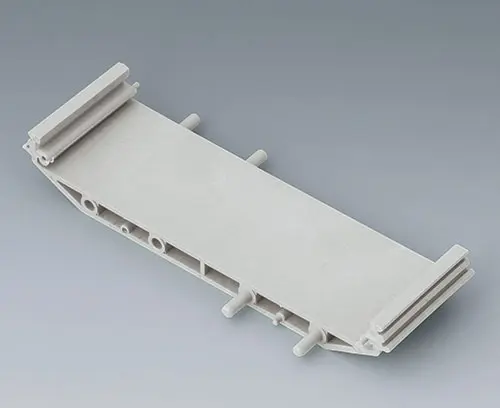

B6724441 RAILTEC SUP. 107, intermediate part

B6724441

RAILTEC SUP. 107, intermediate part Intermediate parts allow optimum adaptation to the relevant size requirements. Modular design with plug-in connection. 2 end sections with/without foot (sep. articles) necessary. The PCB widths are obtained by adding the relevant dimensions of the individual parts.

Supply 1 intermediate part

B6724441

RAILTEC SUP. 107, intermediate part
product added to your list

light grey
118x35x17.5mm

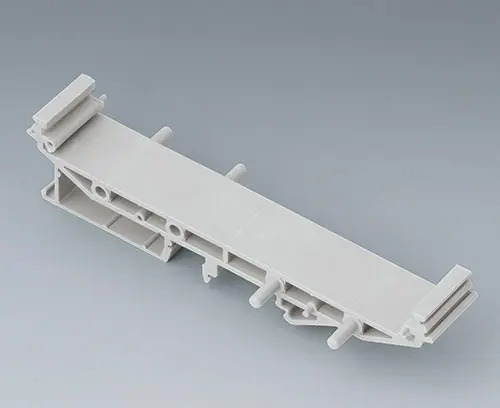

B6724442 RAILTEC SUP. 107, intermediate p. + foot

B6724442

RAILTEC SUP. 107, intermediate p. + foot Intermediate parts allow optimum adaptation to the relevant size requirements. Modular design with plug-in connection. 2 end sections with/without foot (sep. articles) necessary. The PCB widths are obtained by adding the relevant dimensions of the individual parts. Suitable for DIN EN 60715 (TH35, TH15 and G32).

Supply 1 intermediate part with foot

B6724442

RAILTEC SUP. 107, intermediate p. + foot
product added to your list

light grey
118x18.5x27.5mm

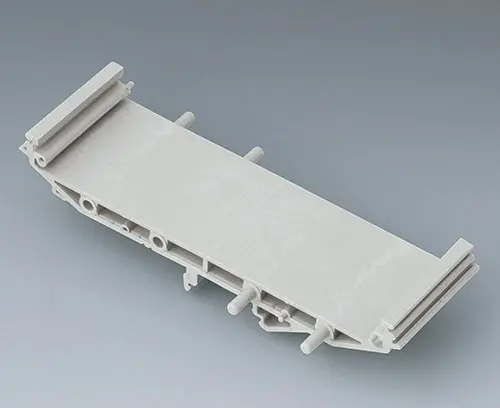

B6724443 RAILTEC SUP. 107, intermediate p. + foot

B6724443

RAILTEC SUP. 107, intermediate p. + foot Intermediate parts allow optimum adaptation to the relevant size requirements. Modular design with plug-in connection. 2 end sections with/without foot (sep. articles) necessary. The PCB widths are obtained by adding the relevant dimensions of the individual parts. Suitable for DIN EN 60715 (TH35, TH15 and G32).

Supply 1 intermediate part with foot

B6724443

RAILTEC SUP. 107, intermediate p. + foot
product added to your list

light grey
118x35x27.5mm

Accessory "wall/holder"

B6824543 Wall suspension element with foot, SUP.

B6824543

Wall suspension element with foot, SUP. Allows direct wall mounting, suitable for end section with foot.

Supply 2 pieces as set

B6824543

Wall suspension element with foot, SUP.
product added to your list

light grey

Customising options for B6724445

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Material

Colour
light grey
Standards
RoHS compliant
DIN EN 60715 TH35
REACH compliant
Length
118 mm
Width
11.5 mm
Height
27.5 mm
PCB length, base
107 mm
PCB width, base
10 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
16 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
UK

Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for B6724445 and don't forget to request a quotation!
