B6824533

Wall suspension element with foot, SUP.

Allows direct wall-mounting, suitable for end section with foot.

Supply

2 pieces as set

Generate Your PDF Datasheet for B6824533

Please select the product details you would like to include in the PDF.

Add to my basket Add to my basket Add to my basket
product added to your list
continue or open your product list

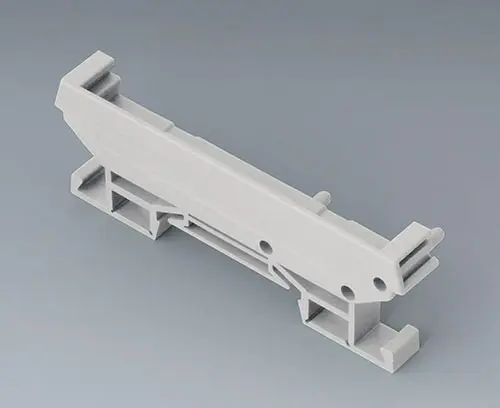

B6724335 RAILTEC SUP. 72, end section with foot

B6724335

RAILTEC SUP. 72, end section with foot Modular design with plug-in connection. Minimum components for one support: 2 end sections. Combining these parts with intermediate parts (sep. articles) allows optimum adaptation to the relevant size requirements. The PCB widths are obtained by adding the relevant dimensions of the individual parts. Suitable for DIN EN 60715 (TS35).

Supply 1 end section with foot

B6724335

RAILTEC SUP. 72, end section with foot
product added to your list

light grey
82x11.2x22.5mm

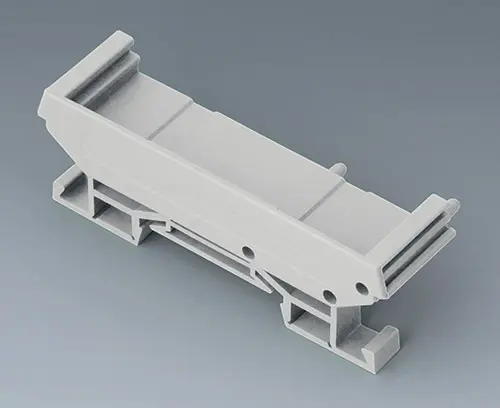

B6724336 RAILTEC SUP. 72, end section with foot

B6724336

RAILTEC SUP. 72, end section with foot Modular design with plug-in connection. Minimum components for one support: 2 end sections. Combining these parts with intermediate parts (sep. articles) allows optimum adaptation to the relevant size requirements. The PCB widths are obtained by adding the relevant dimensions of the individual parts. Suitable for DIN EN 60715 (TH35).

Supply 1 end section with foot

B6724336

RAILTEC SUP. 72, end section with foot
product added to your list

light grey
82x22.2x22.5mm

Customising options for B6824533

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Material

Colour
light grey
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
1 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
UK

Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for B6824533 and don't forget to request a quotation!
