A9056107

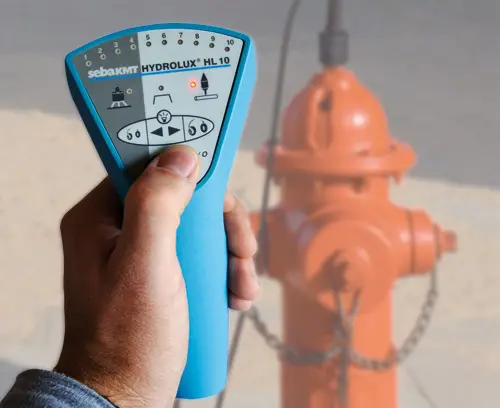

SENSO-CASE M

Ergonomic plastic enclosure for single-handed operation. Recessed control panel for operating elements or display modules. Fastening pillars for PCBs in the top part. Space for 9 V flat battery or battery compartment 2 x AA (accessory). Cable strain relief (acc.) alternatively applicable.

Supply

Top and bottom part , moulded part, battery compartment lid, assembly kit

2D PDF Drawing
3D PDF View
3D/2D download

Generate Your PDF Datasheet for A9056107

Please select the product details you would like to include in the PDF.

Add to my basket Add to my basket Add to my basket
product added to your list
continue or open your product list

Accessory "battery"

A9156001 Battery holder, 2 x AA

A9156001

Battery holder, 2 x AA For 2 x 1.5 V mignon-cells (AA). Contacts suitable for plug-in contact (sep. asseccory).

Supply 1 battery holder

A9156001

Battery holder, 2 x AA
product added to your list

black RAL 9005
A9156002 Plug-in contact, 1 x 9 V (PP3)

A9156002

Plug-in contact, 1 x 9 V (PP3) Version: With protective case. Cable length approx. 152 mm. Contact diameters 5.7 / 5.3 mm.
Application: suitable for 9 V flat battery (PP3) or battery holder A9156001.

Supply 1 plug-in contact

A9156002

Plug-in contact, 1 x 9 V (PP3)
product added to your list
A9156003 Battery holder, 1 x 9 V (PP3)

A9156003

Battery holder, 1 x 9 V (PP3) For 1 x 9 V flat battery (PP3).

Supply 1 battery holder, 2 self-tapping screws

A9156003

Battery holder, 1 x 9 V (PP3)
product added to your list

nickel-plated

Accessory "protection"

A9166004 Set of pull-relief

A9166004

Set of pull-relief For pull-relief of cable-connected applications. To be mounted onto the towers provided in the case or station.

Supply 2 preshaped pull-relief clamps, 2 self-tapping screws

A9166004

Set of pull-relief
product added to your list

volcano
A9166101 Cable strain, 5.0 - 5.9

A9166101

Cable strain, 5.0 - 5.9 The push-on cable strain relief form an attractive connection with cable-linked applications. Application: for cable diameter 5.0 - 5.9 mm.

Supply 1 cable strain relief

A9166101

Cable strain, 5.0 - 5.9
product added to your list

volcano
A9166131 Cable strain, 4.2 - 5.0

A9166131

Cable strain, 4.2 - 5.0 The push-on cable strain relief form an attractive connection with cable-linked applications. Application: for cable diameter 4.2 - 5.0 mm.

Supply 1 cable strain relief

A9166131

Cable strain, 4.2 - 5.0
product added to your list

volcano
A9166161 Cable strain, 3.4 - 4.2

A9166161

Cable strain, 3.4 - 4.2 The push-on cable strain relief form an attractive connection with cable-linked applications. Application: for cable diameter 3.4 - 4.2 mm.

Supply 1 cable strain relief

A9166161

Cable strain, 3.4 - 4.2
product added to your list

volcano

Accessory "wall/holder"

A9156005 Adhesive foil

A9156005

Adhesive foil For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.

Supply 1 piece

A9156005

Adhesive foil
product added to your list
A9156307 Holder

A9156307

Holder Special holder for SENSO-CASE for safe storing of cable-connected or wireless applications. Fixing at the wall or other surfaces by commercial screws or by adhesive foil (sep. article).

Supply 1 holder

A9156307

Holder
product added to your list

off-white RAL 9002

Accessory "carrying"

A9100002 Ring eyelet

A9100002

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.

Supply 1 ring eyelet

A9100002

Ring eyelet
product added to your list

volcano

Accessory "screws"

A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
product added to your list

Customising options for A9056107

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Material

Protection class
Colour
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
180 mm
Width
86 mm
Height
45 mm
PCB length, top
74 mm
PCB width, top
74 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
94 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany

Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for A9056107 and don't forget to request a quotation!
