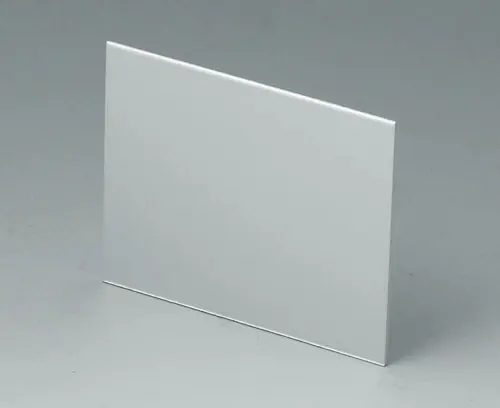

A9107221

Front / rear panel V 110

Front panel for SHELL-TYPE CASE V and O. For case A940644.

Supply

1 front panel

2D PDF Drawing
3D/2D download

Generate Your PDF Datasheet for A9107221

Please select the product details you would like to include in the PDF.

Add to my basket Add to my basket Add to my basket
product added to your list
continue or open your product list

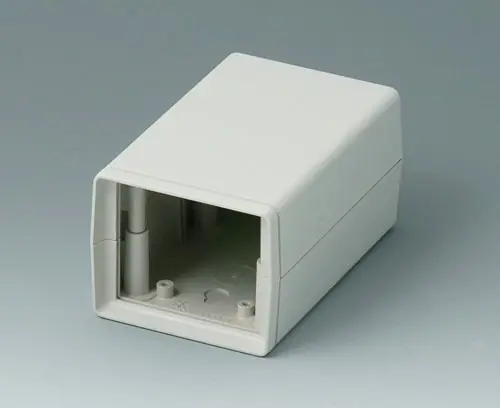

A9406443 SHELL-TYPE CASES V 110, Vers. I

A9406443

SHELL-TYPE CASES V 110, Vers. I Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

A9406443

SHELL-TYPE CASES V 110, Vers. I
product added to your list

off-white RAL 9002
72x114x57mm

Customising options for A9107221

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Material

Colour
matt anodised
Standards
RoHS compliant
REACH compliant
Width
59.3 mm
Height
49 mm
Thickness
1 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
7.7 g
Customs tariff number
(OKW product)
76069200
Country of manufacture
Germany

Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for A9107221 and don't forget to request a quotation!
