Accessories for enclosures
A9408331

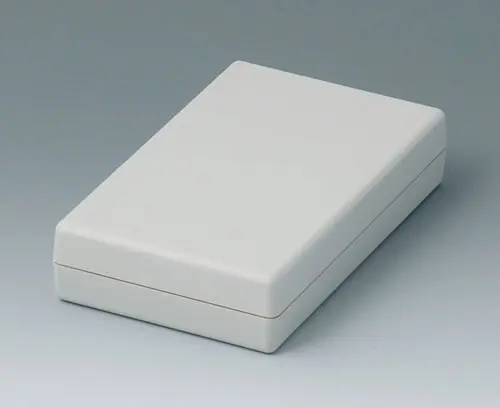

SHELL-TYPE CASES G 155, Vers. I
Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.
VersionWithout battery compartment
Supply1 top and base part, assembly kit
2D PDF Drawing
3D PDF View
3D/2D download
3D/2D download
Generate Your PDF Datasheet for A9408331
Please select the product details you would like to include in the PDF.
Add to my basket
Accessory "protection"
A9108120
Contact-strips V, O, G 155
Provide additional electrical continuity between the top and base shells of shielded cases (order two pieces, one for each side).
Supply 1 contact-strip
A9108120
Contact-strips V, O, G 155product added to your list
A9108486
Sealing kit G 155
Inlay O-ring and four rubber disks seal the tongue and groove joint and the four assembly kits.
Supply 1 O-ring, 4 rubber disks
A9108486
Sealing kit G 155product added to your list
Accessory "wall/holder"
A9204108
Wall mounting brackets
Exterior wall mounting elements for the SHELL-TYPE CASES 110, 155 and 190. Fastening to the case by means of the case fixing screws.
Supply 4 wall mounting brackets
A9204108
Wall mounting bracketsproduct added to your list
pebble grey RAL 7032
B1360048
Wall suspension elements
Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.
Supply 1 wall suspension element, 1 adapter 58 x 128 mm, assembly kit
B1360048
Wall suspension elementsproduct added to your list
pebble grey RAL 7032
Accessory "carrying"
A9100002
Ring eyelet
For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.
Supply 1 ring eyelet
A9100002
Ring eyeletproduct added to your list
volcano
Accessory "screws"
A0306031
Self-tapping screws 3 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0306031
Self-tapping screws 3 x 6 mm (PZ1)product added to your list
Accessory
A9210290
Anti-slide feet 9.5 x 3.8 mm
Rubber feet with self-adhesive foil facilitate a secure position.
Supply 2 rubber feet
A9210290
Anti-slide feet 9.5 x 3.8 mmproduct added to your list
A9250807
Tilt foot bar
Facilitates ergonomical reading angles, side lenght 81 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.
Supply 1 tilt foot bar, assembly kit
A9250807
Tilt foot barproduct added to your list
off-white RAL 9002
A9250817
Tilt foot bar
Facilitates ergonomical reading angles, side lenght 43 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.
Supply 1 tilt foot bar, assembly kit
A9250817
Tilt foot barproduct added to your list
off-white RAL 9002
Customising options for A9408331
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Technical Data
-
3D-Models & Drawings / Info
- Purchasing Data
Material
Protection class
Necessary accessories: sealing kit
Colour
off-white RAL 9002
Standards
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Width
95 mm
Depth
158 mm
Height
33 mm
PCB length, base
149 mm
PCB width, base
77 mm
PCB length, top
149 mm
PCB width, top
77 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 271 KB
- AutoCAD DWG-File 584 KB
- AutoCAD DXF-File 2,063 KB
- 3D PDF View (Acrobat Reader) (turn the product 360°, blind components out for inside view, view accessories...) 1,659 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00008495.x_t 2,568 KB
- 00008495.STEP 8,615 KB
- 00008495.SAT 8,901 KB
Weight/1 part
139 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for A9408331 and don't forget to request a quotation!
