SHELL-TYPE CASES O 190, Vers. I
Two-part plastic case with open front and open rear. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.
VersionWithout battery compartment
Supply1 top and base part, assembly kit
2D PDF Drawing
3D PDF View
3D/2D download
3D/2D download
Generate Your PDF Datasheet for A9413440
Please select the product details you would like to include in the PDF.
Add to my basket
Accessory to complete
A9113223
Front / rear panel V, O 190
Front panel for SHELL-TYPE CASE V and O. For case A941344.
Supply 1 front panel
A9113223
Front / rear panel V, O 190product added to your list

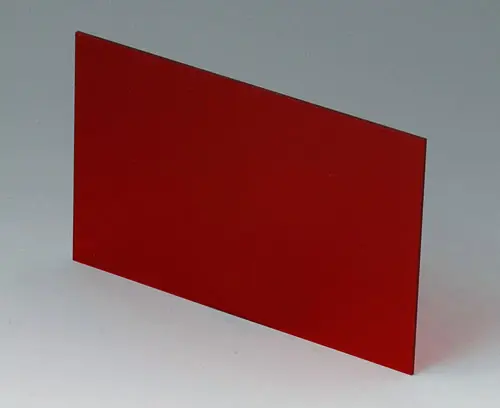

red transparent
124.2x79.6x1.5mm
A9114221
Front / rear panel V, O 190
Front panel for SHELL-TYPE CASE V and O. For case A941344.
Supply 1 front panel
A9114221
Front / rear panel V, O 190product added to your list

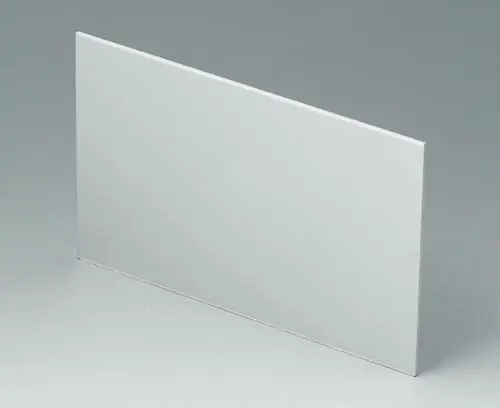

matt anodised
124.2x79.6x1.5mm
Accessory "protection"
A9113150
Contact-strips V, O, G 190
Provide additional electrical continuity between the top and base shells of shielded cases (order two pieces, one for each side).
Supply 1 contact-strip
A9113150
Contact-strips V, O, G 190product added to your list
Accessory "wall/holder"
A9204108
Wall mounting brackets
Exterior wall mounting elements for the SHELL-TYPE CASES 110, 155 and 190. Fastening to the case by means of the case fixing screws.
Supply 4 wall mounting brackets
A9204108
Wall mounting bracketsproduct added to your list
pebble grey RAL 7032
B1360048
Wall suspension elements
Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.
Supply 1 wall suspension element, 1 adapter 58 x 128 mm, assembly kit
B1360048
Wall suspension elementsproduct added to your list
pebble grey RAL 7032
Accessory "screws"
A0306031
Self-tapping screws 3 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0306031
Self-tapping screws 3 x 6 mm (PZ1)product added to your list
Accessory
A9210290
Anti-slide feet 9.5 x 3.8 mm
Rubber feet with self-adhesive foil facilitate a secure position.
Supply 2 rubber feet
A9210290
Anti-slide feet 9.5 x 3.8 mmproduct added to your list
Customising options for A9413440
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Technical Data
-
3D-Models & Drawings / Info
- Purchasing Data
Width
138 mm
Depth
190 mm
Height
91 mm
PCB length, base
173 mm
PCB width, base
118 mm
PCB length, top
173 mm
PCB width, top
118 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 285 KB
- AutoCAD DWG-File 837 KB
- AutoCAD DXF-File 3,122 KB
- 3D PDF View (Acrobat Reader) (turn the product 360°, blind components out for inside view, view accessories...) 1,693 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00008538.x_t 4,999 KB
- 00008538.STEP 13,590 KB
- 00008538.SAT 14,492 KB
Weight/1 part
290 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for A9413440 and don't forget to request a quotation!
