B5403217

SLIM-CASE M, Vers. V

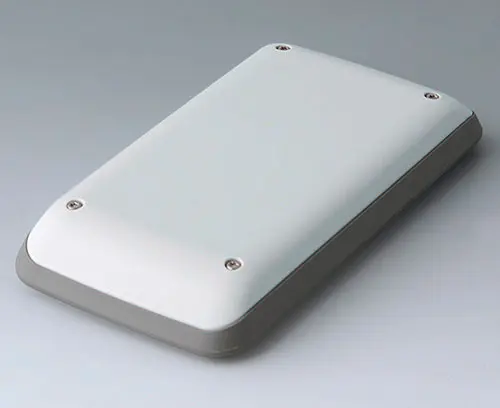

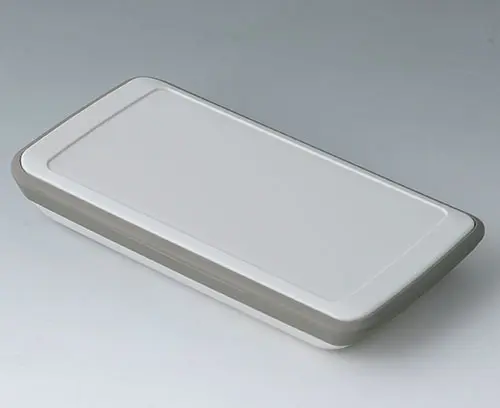

3-piece handheld enclosure with TPE intermediate ring, compact design, with a large operating panel of up to 4" (10 cm). Comfortable grip thanks to enclosure contours that are rounded along the sides and intermediate ring made of TPE, which also serves as impact protection and as a sealing ring for protection class IP 54. Recessed operating panel for applications with decorative product label. Fastening pillars for mounting PCBs in top and bottom parts.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPE intermediate ring are not possible.

Version

With TPE intermediate ring and operating panel recessed 1 mm

Supply

Top and bottom part, TPE intermediate ring, assembly kit

2D PDF Drawing
3D PDF View
3D/2D download

Generate Your PDF Datasheet for B5403217

Please select the product details you would like to include in the PDF.

Add to my basket Add to my basket Add to my basket
product added to your list
continue or open your product list

Accessory "screws"

A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
product added to your list
A0325060 Self-tapping screw 2.5 x 6 mm (T8)

A0325060

Self-tapping screw 2.5 x 6 mm (T8) Self-tapping screw with T8 Torx drive. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0325060

Self-tapping screw 2.5 x 6 mm (T8)
product added to your list

Customising options for B5403217

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Material

Bottom and top part

Intermediate ring
Protection class
Colour
Bottom and top part off-white RAL 9002,
Intermediate ring volcano
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
148 mm
Width
74 mm
Height
22 mm
PCB length, base
126 mm
PCB width, base
64 mm
PCB length, top
130 mm
PCB width, top
64 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
83 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany

Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for B5403217 and don't forget to request a quotation!
