Accessories for enclosures
A9152011
Intermediate ring L
Sophisticated feature in metallic finish (RoHS compliant). 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together.
Supply1 intermediate ring
2D PDF Drawing
3D PDF View
3D/2D download
3D/2D download
Generate Your PDF Datasheet for A9152011
Please select the product details you would like to include in the PDF.
Add to my basket
A9052107
SOFT-CASE L

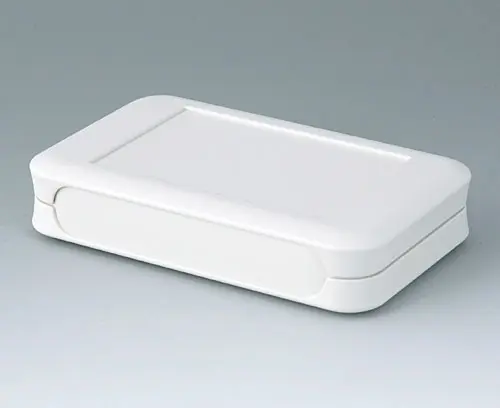

Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. With soft TPE ring (accessory) protection class IP 54 possible.
Version Without battery compartment
Supply Top and bottom part, assembly kit
A9052107
SOFT-CASE Lproduct added to your list
off-white RAL 9002
73x117x24mm
,
A9052108
SOFT-CASE L

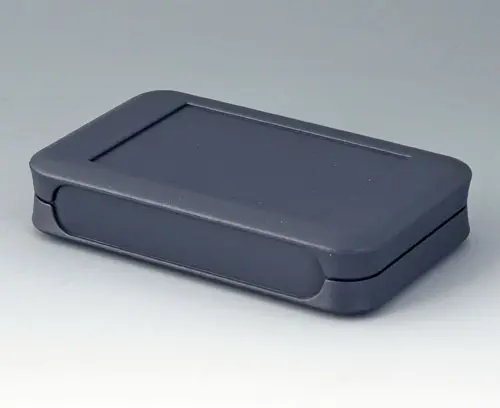

Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. With soft TPE ring (accessory) protection class IP 54 possible.
Version Without battery compartment
Supply Top and bottom part, assembly kit
A9052108
SOFT-CASE Lproduct added to your list
lava
73x117x24mm
,
A9052117
SOFT-CASE L

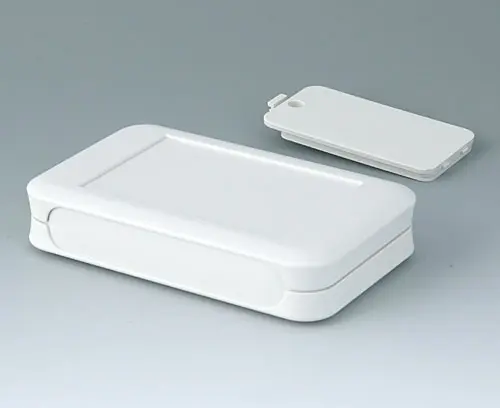

Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.
Version With battery compartment for 2 x AA, accessible from the outside
Supply Top and bottom part, battery compartment lid, assembly kit
A9052117
SOFT-CASE Lproduct added to your list
off-white RAL 9002
73x117x24mm
A9052118
SOFT-CASE L
Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.
Version With battery compartment for 2 x AA, accessible from the outside
Supply Top and bottom part, battery compartment lid, assembly kit
A9052118
SOFT-CASE Lproduct added to your list
lava
73x117x24mm
A9052127
SOFT-CASE L

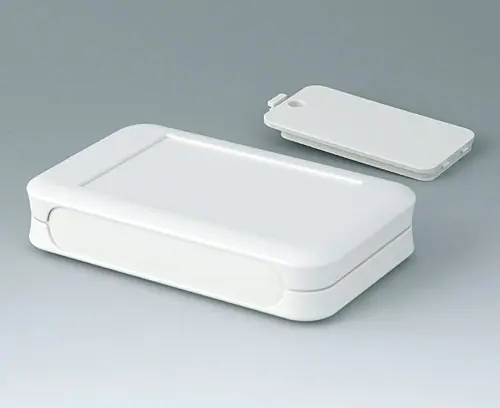

Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.
Version With battery compartment for 1 x 9 V (PP3), accessible from the outside
Supply Top and bottom part, battery compartment lid, assembly kit
A9052127
SOFT-CASE Lproduct added to your list
off-white RAL 9002
73x117x24mm
A9052128
SOFT-CASE L

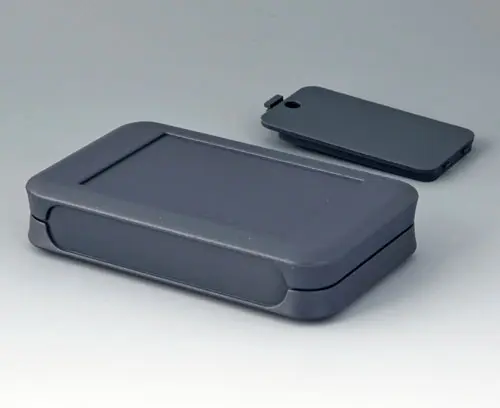

Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.
Version With battery compartment for 1 x 9 V (PP3), accessible from the outside
Supply Top and bottom part, battery compartment lid, assembly kit
A9052128
SOFT-CASE Lproduct added to your list
lava
73x117x24mm
A9052209
SOFT-CASE L

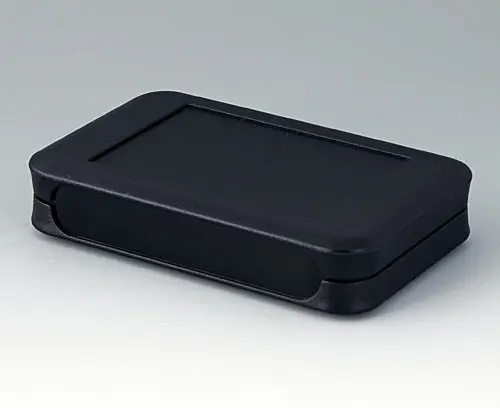

Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. With soft TPE ring (accessory) protection class IP 54 possible. Note: IR function only without intermediate ring/with intermediate ring in PMMA possible.
Version Without battery compartment
Supply Top and bottom part, assembly kit
A9052209
SOFT-CASE Lproduct added to your list
black RAL 9005
73x117x24mm
,
A9052219
SOFT-CASE L
Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. Note: IR function only without intermediate ring/with intermediate ring in PMMA possible.
Version With battery compartment for 2 x AA, accessible from the outside
Supply Top and bottom part, battery compartment lid, assembly kit
A9052219
SOFT-CASE Lproduct added to your list
black RAL 9005
73x117x24mm
A9052229
SOFT-CASE L

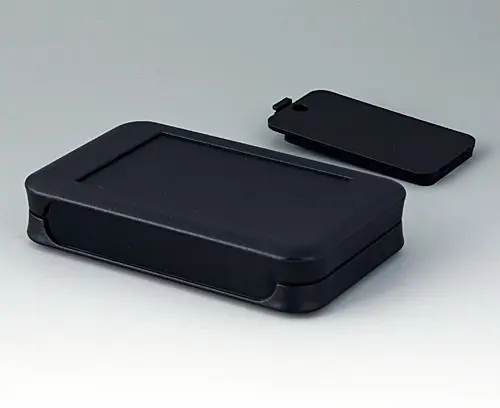

Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. Note: IR function only without intermediate ring/with intermediate ring in PMMA possible.
Version With battery compartment for 1 x 9 V (PP3), accessible from the outside
Supply Top and bottom part, battery compartment lid, assembly kit
A9052229
SOFT-CASE Lproduct added to your list
black RAL 9005
73x117x24mm
Customising options for A9152011
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Technical Data
-
3D-Models & Drawings / Info
- Purchasing Data
Length
76 mm
Width
120 mm
Height
21 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 388 KB
- AutoCAD DWG-File 362 KB
- AutoCAD DXF-File 1,170 KB
- 3D PDF View (Acrobat Reader) (turn the product 360°, blind components out for inside view, view accessories...) 2,654 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00008007.x_t 15,255 KB
- 00008007.STEP 35,400 KB
- 00008007.SAT 28,895 KB
Weight/1 part
20 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for A9152011 and don't forget to request a quotation!
