Accessories for enclosures
A9250807

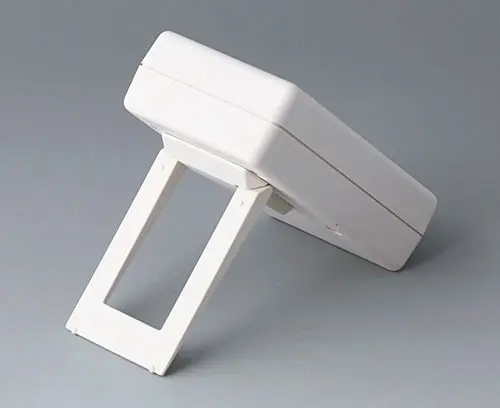

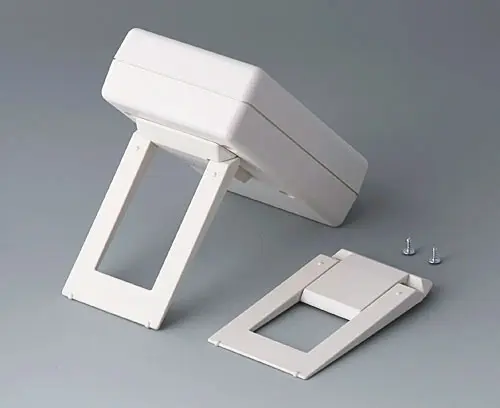

Tilt foot bar
Facilitates ergonomical reading angles, side lenght 81 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.
Supply1 tilt foot bar, assembly kit
2D PDF Drawing
3D/2D download
3D/2D download
Generate Your PDF Datasheet for A9250807
Please select the product details you would like to include in the PDF.
Add to my basket
System components to complete
A9010065
FLAT-PACK CASES 100 N, Vers. I
Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.
Version Without handle bar
Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs
A9010065
FLAT-PACK CASES 100 N, Vers. Iproduct added to your list
off-white RAL 9002
100x50x25mm
A9011065
FLAT-PACK CASES 100 H, Vers. I
Two-piece case with high top and open side base. Fastenings pillars for PCB mounting.
Version Without handle bar
Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs
A9011065
FLAT-PACK CASES 100 H, Vers. Iproduct added to your list
off-white RAL 9002
100x50x40mm
A9020065
FLAT-PACK CASES 120 N, Vers. I
Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.
Version Without handle bar
Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs
A9020065
FLAT-PACK CASES 120 N, Vers. Iproduct added to your list
off-white RAL 9002
120x65x40mm
A9020265
FLAT-PACK CASE 120 S
Two-piece case. Top part with ventilation slots and open side base. Fastenings pillars for PCB mounting.
Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs
A9020265
FLAT-PACK CASE 120 Sproduct added to your list
off-white RAL 9002
120x65x40mm
A9021065
FLAT-PACK CASE 120 H, Vers. I
Two-piece case with high top and open side base. Fastenings pillars for PCB mounting.
Version Without handle bar
Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs
A9021065
FLAT-PACK CASE 120 H, Vers. Iproduct added to your list
off-white RAL 9002
120x65x65mm
A9030065
FLAT-PACK CASES 150 N, Vers. I
Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.
Version Without handle bar
Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs
A9030065
FLAT-PACK CASES 150 N, Vers. Iproduct added to your list
off-white RAL 9002
150x80x50mm
A9031065
FLAT-PACK CASE 150 H, Vers. I
Two-piece case with high top and open side base. Fastenings pillars for PCB mounting.
Version without handle bar.
Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs
A9031065
FLAT-PACK CASE 150 H, Vers. Iproduct added to your list
off-white RAL 9002
150x80x80mm
A9032065
FLAT-PACK CASES 150 N, Vers. I
Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.
Version Without handle bar
Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs
A9032065
FLAT-PACK CASES 150 N, Vers. Iproduct added to your list
off-white RAL 9002
150x80x55mm
A9060007
HAND-HELD-BOX P, Vers. I
Design: Successfully used case for measuring instruments. With recessed area for imprintings or your logo. Cut-out section for LCD or analogical modules. With battery compartment, accessible from the outside, for 9 V flat battery (PP3) or 1.5 V baby cell (C) with contacts for soldering. Raised front area to accommodate plugs.
Version With lateral recess for rocker switch
Supply Top and base part, battery compartment lid, assembly kit
A9060007
HAND-HELD-BOX P, Vers. Iproduct added to your list
off-white RAL 9002
145x80x36.5mm
A9060017
HAND-HELD-BOX P, Vers. II
Successfully used case for measuring instruments. With recessed area for imprintings or your logo. Cut-out section for LCD or analogical modules. With battery compartment, accessible from the outside, for 9 V flat battery (PP3) or 1.5 V baby cell (C) with contacts for soldering. Raised front area to accommodate plugs.
Version Without lateral recess
Supply Top and base part, battery compartment lid, assembly kit
A9060017
HAND-HELD-BOX P, Vers. IIproduct added to your list
off-white RAL 9002
145x80x36.5mm
A9062017
HAND-HELD-BOX M, Vers. I
Small hand-held case with excellent design. With recessed area, e.g. for membrane keyboards, control elements. Cut-out section for digital and analogical modules. Battery compartment accessible from the outside with locked battery compartment lid. Raised front area to accommodate plugs.
Version With battery compartment for 9 V flat batteries (PP3) or 1.5 V baby cells (C) with contacts for soldering
Supply Top and base part, battery compartment lid, assembly kit
A9062017
HAND-HELD-BOX M, Vers. Iproduct added to your list
off-white RAL 9002
145x80x38.5mm
A9406331
SHELL-TYPE CASES G 110, Vers. I
Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9406331
SHELL-TYPE CASES G 110, Vers. Iproduct added to your list
off-white RAL 9002
72x114x33mm
A9406333
SHELL-TYPE CASES V 110, Vers. I
Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9406333
SHELL-TYPE CASES V 110, Vers. Iproduct added to your list
off-white RAL 9002
72x114x33mm
A9406341
SHELL-TYPE CASES G 110, Vers. I
Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9406341
SHELL-TYPE CASES G 110, Vers. Iproduct added to your list
off-white RAL 9002
72x114x45mm
A9406343
SHELL-TYPE CASES V 110, Vers. I
Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9406343
SHELL-TYPE CASES V 110, Vers. Iproduct added to your list
off-white RAL 9002
72x114x45mm
A9406351
SHELL-TYPE CASES G 110, Vers. I
Two-part plastic case with closed front and rear. Top view with recessed area. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9406351
SHELL-TYPE CASES G 110, Vers. Iproduct added to your list
off-white RAL 9002
72x114x33.5mm
A9406441
SHELL-TYPE CASES G 110, Vers. I
Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9406441
SHELL-TYPE CASES G 110, Vers. Iproduct added to your list
off-white RAL 9002
72x114x57mm
A9406443
SHELL-TYPE CASES V 110, Vers. I
Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9406443
SHELL-TYPE CASES V 110, Vers. Iproduct added to your list
off-white RAL 9002
72x114x57mm
A9408331
SHELL-TYPE CASES G 155, Vers. I
Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9408331
SHELL-TYPE CASES G 155, Vers. Iproduct added to your list
off-white RAL 9002
95x158x33mm
A9408333
SHELL-TYPE CASES V 155, Vers. I
Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9408333
SHELL-TYPE CASES V 155, Vers. Iproduct added to your list
off-white RAL 9002
95x158x33mm
A9408341
SHELL-TYPE CASES G 155, Vers. I
Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9408341
SHELL-TYPE CASES G 155, Vers. Iproduct added to your list
off-white RAL 9002
95x158x45mm
A9408343
SHELL-TYPE CASES V 155, Vers. I
Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9408343
SHELL-TYPE CASES V 155, Vers. Iproduct added to your list
off-white RAL 9002
95x158x45mm
A9408351
SHELL-TYPE CASES G 155, Vers. I
Two-part plastic case with closed front and rear. Top view with recessed area. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9408351
SHELL-TYPE CASES G 155, Vers. Iproduct added to your list
off-white RAL 9002
95x158x33.5mm
A9408441
SHELL-TYPE CASES G 155, Vers. I
Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9408441
SHELL-TYPE CASES G 155, Vers. Iproduct added to your list
off-white RAL 9002
95x158x57mm
A9408443
SHELL-TYPE CASES V 155, Vers. I
Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9408443
SHELL-TYPE CASES V 155, Vers. Iproduct added to your list
off-white RAL 9002
95x158x57mm
A9520165
FLAT-PACK CASE 120 A
Two-piece case. The front pane,l see accessory A9195201, rests upon four spring posts and is held without screws by the case frame. Fastenings pillars for PCB mounting.
Supply 1 top and base part, assembly kit
A9520165
FLAT-PACK CASE 120 Aproduct added to your list
off-white RAL 9002
120x65x40mm
A9530165
FLAT-PACK CASE 150 A
Two-piece case. The front panel, see accessory A9195301, rests upon four spring posts and is held without screws by the case frame. Fastenings pillars for PCB mounting.
Supply 1 top and base part, assembly kit
A9530165
FLAT-PACK CASE 150 Aproduct added to your list
off-white RAL 9002
150x85x45mm
Accessory
A9207150
Anti-slide feet 6.5 x 2 mm
Rubber feet with self-adhesive foil facilitate a secure position.
Supply 2 rubber feet
A9207150
Anti-slide feet 6.5 x 2 mmproduct added to your list
Customising options for A9250807
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Technical Data
-
3D-Models & Drawings / Info
- Purchasing Data
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 165 KB
- AutoCAD DWG-File 342 KB
- AutoCAD DXF-File 971 KB
Weight/1 part
11 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
