Accessories for enclosures
B1340029

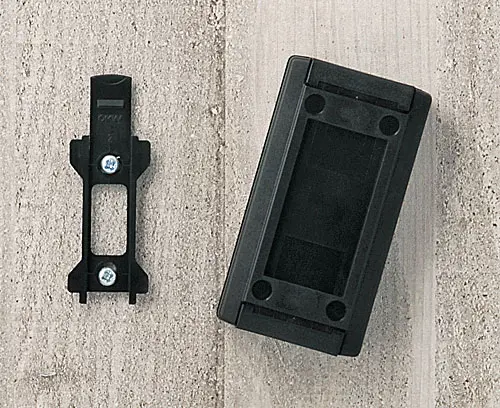

Wall suspension element for Toptec 102
Makes hidden wall mounting possible. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.
Supply1 wall suspension element
2D PDF Drawing
3D/2D download
3D/2D download
Generate Your PDF Datasheet for B1340029
Please select the product details you would like to include in the PDF.
Add to my basket
B1040369
TOPTEC 102, Vers. I
Electronic case - high version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the bottom.
Version without ventilations slots.
Supply 1 case-top and base, 2 end panels
B1040369
TOPTEC 102, Vers. Iproduct added to your list
black RAL 9005
102x54x30mm
B1040469
TOPTEC 102, Vers. II
Electronic case - high version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the bottom.
Version with ventilations slots.
Supply 1 case-top and base, 2 end panels
B1040469
TOPTEC 102, Vers. IIproduct added to your list
black RAL 9005
102x54x30mm
Customising options for B1340029
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Technical Data
-
3D-Models & Drawings / Info
- Purchasing Data
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 233 KB
- AutoCAD DWG-File 622 KB
- AutoCAD DXF-File 2,142 KB
Weight/1 part
5 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for B1340029 and don't forget to request a quotation!
