B1370028

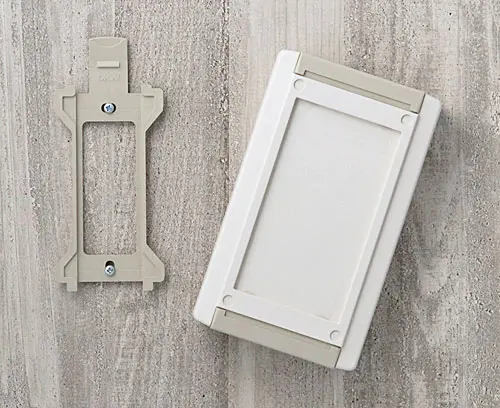

Wall suspension element for Toptec 194

Makes hidden wall mounting possible. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply

1 wall suspension element

2D PDF Drawing
3D/2D download

Generate Your PDF Datasheet for B1370028

Please select the product details you would like to include in the PDF.

Add to my basket Add to my basket Add to my basket
product added to your list
continue or open your product list
B1070365 TOPTEC 194 H, Vers. I

B1070365

TOPTEC 194 H, Vers. I Electronic case - high version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.

Version Without ventilations slots

Supply 1 case-top and base, 2 end panels

B1070365

TOPTEC 194 H, Vers. I
product added to your list

off-white RAL 9002
194x115x68mm
B1070465 TOPTEC 194 H, Vers. II

B1070465

TOPTEC 194 H, Vers. II Electronic case - high version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.

Version With ventilations slots

Supply 1 case-top and base, 2 end panels

B1070465

TOPTEC 194 H, Vers. II
product added to your list

off-white RAL 9002
194x115x68mm
B1075365 TOPTEC 194 F, Vers. I

B1075365

TOPTEC 194 F, Vers. I Electronic case - flat version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.

Version Without ventilations slots

Supply 1 case-top and base, 2 end panels

B1075365

TOPTEC 194 F, Vers. I
product added to your list

off-white RAL 9002
194x115x46mm
B1075465 TOPTEC 194 F, Vers. II

B1075465

TOPTEC 194 F, Vers. II Electronic case - flat version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.

Version With ventilations slots

Supply 1 case-top and base, 2 end panels

B1075465

TOPTEC 194 F, Vers. II
product added to your list

off-white RAL 9002
194x115x46mm

Customising options for B1370028

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Material

Colour
pebble grey RAL 7032
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
18 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany

Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for B1370028 and don't forget to request a quotation!
