Accessories for enclosures

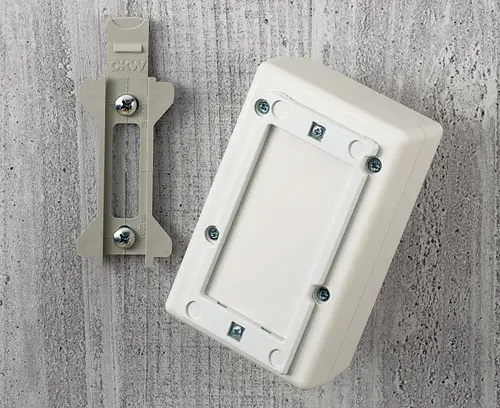

B1360048
Wall suspension elements
Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.
Supply1 wall suspension element, 1 adapter 58 x 128 mm, assembly kit
2D PDF Drawing
3D/2D download
3D/2D download
Generate Your PDF Datasheet for B1360048
Please select the product details you would like to include in the PDF.
Add to my basket
A0514007
DESK CASE 138
Two-part case with closed top. Ergonomically sloped control area recessed by 0.8 mm . Suitable for numerical keypads and membrane keyboards. Fastening pillars for PCBs or keyboards in the top and base.
Supply 1 top and base part, assembly kit
A0514007
DESK CASE 138product added to your list
off-white RAL 9002
138x190x54mm
A0514009
DESK CASE 138
Two-part case with closed top. Ergonomically sloped control area recessed by 0.8 mm. Suitable for numerical keypads and membrane keyboards. Fastening pillars for PCBs or keyboards in the top and base.
Supply 1 top and base part, assembly kit
A0514009
DESK CASE 138product added to your list
black RAL 9005
138x190x54mm

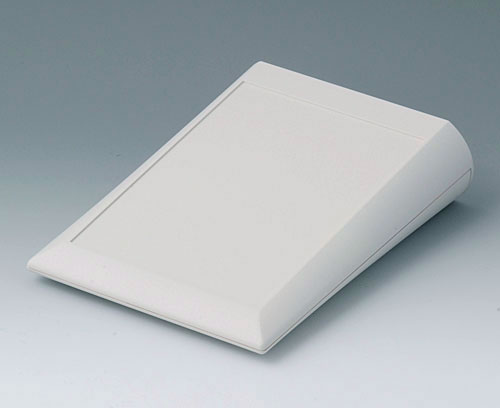

A0615007
COMTEC 150 F, Vers. I
Two-part case in flat construction for table top and wall mounted applications. Ergonomically operating area sloped by 10°, 1.2 mm recessed for protecting membrane keyboards. Fixing towers in bottom and top part. Big area for interfaces at the top part's rear.
Version Without battery compartment
Supply 1 top and bottom part, assembly kit
A0615007
COMTEC 150 F, Vers. Iproduct added to your list
off-white RAL 9002
150x200x51.5mm
A0615009
COMTEC 150 F, Vers. I
Two-part case in flat construction for table top and wall mounted applications. Ergonomically operating area sloped by 10°, 1.2 mm recessed for protecting membrane keyboards. Fixing towers in bottom and top part. Big area for interfaces at the top part's rear.
Version Without battery compartment
Supply 1 top and bottom part, assembly kit
A0615009
COMTEC 150 F, Vers. Iproduct added to your list
black RAL 9005
150x200x51.5mm
A0615107
COMTEC 150 H, Vers. I
Two-part case in high construction for table top and wall mounted applications. Ergonomically operating area sloped by 10°, 1.2 mm recessed for protecting membrane keyboards. Fixing towers in bottom and top part. Big area for interfaces at the top part's rear.
Version Without battery compartment
Supply 1 top and bottom part, assembly kit
A0615107
COMTEC 150 H, Vers. Iproduct added to your list
off-white RAL 9002
150x200x71.5mm
A0615109
COMTEC 150 H, Vers. I
Two-part case in high construction for table top and wall mounted applications. Operating area ergonomically sloped by 10°, 1.2 mm recessed for protecting membrane keyboards. Fixing towers in bottom and top part. Big area for interfaces at the top part's rear.
Version Without battery compartment
Supply 1 top and bottom part, assembly kit
A0615109
COMTEC 150 H, Vers. Iproduct added to your list
black RAL 9005
150x200x71.5mm
A0620007
COMTEC 200 F, Vers. I
Two-part case in flat construction for table top and wall mounted applications. Ergonomically operating area sloped by 10°, 1.2 mm recessed for protecting membrane keyboards. Fixing towers in bottom and top part. Big area for interfaces at the top part's rear.
Version Without battery compartment
Supply 1 top and bottom part, assembly kit
A0620007
COMTEC 200 F, Vers. Iproduct added to your list
off-white RAL 9002
200x150x42.8mm
A0620009
COMTEC 200 F, Vers. I
Two-part case in flat construction for table top and wall mounted applications. Ergonomically operating area sloped by 10°, 1.2 mm recessed for protecting membrane keyboards. Fixing towers in bottom and top part. Big area for interfaces at the top part's rear.
Version Without battery compartment
Supply 1 top and bottom part, assembly kit
A0620009
COMTEC 200 F, Vers. Iproduct added to your list
black RAL 9005
200x150x42.8mm
A0620107
COMTEC 200 H, Vers. I
Two-part case in high construction for table top and wall mounted applications. Operating area ergonomically sloped by 10°, 1.2 mm recessed for protecting membrane keyboards. Fixing towers in bottom and top part. Big area for interfaces at the top part's rear.
Version Without battery compartment
Supply 1 top and bottom part, assembly kit
A0620107
COMTEC 200 H, Vers. Iproduct added to your list
off-white RAL 9002
200x150x62.8mm
A0620109
COMTEC 200 H, Vers. I
Two-part case in high construction for table top and wall mounted applications. Operating area ergonomically sloped by 10°, 1.2 mm recessed for protecting membrane keyboards. Fixing towers in bottom and top part. Big area for interfaces at the top part's rear.
Version Without battery compartment
Supply 1 top and bottom part, assembly kit
A0620109
COMTEC 200 H, Vers. Iproduct added to your list
black RAL 9005
200x150x62.8mm
A0629107
COMTEC 290 H, Vers. I
Two-part case in high construction for table top and wall mounted applications. Operating area ergonomically sloped by 10°, 1.2 mm recessed for protecting membrane keyboards. Fixing towers in bottom and top part. Big area for interfaces at the top part's rear.
Version Without battery compartment
Supply 1 top and bottom part, assembly kit
A0629107
COMTEC 290 H, Vers. Iproduct added to your list
off-white RAL 9002
290x200x75.5mm
A0629109
COMTEC 290 H, Vers. I
Two-part case in high construction for table top and wall mounted applications. Operating area ergonomically sloped by 10°, 1.2 mm recessed for protecting membrane keyboards. Fixing towers in bottom and top part. Big area for interfaces at the top part's rear.
Version Without battery compartment
Supply 1 top and bottom part, assembly kit
A0629109
COMTEC 290 H, Vers. Iproduct added to your list
black RAL 9005
290x200x75.5mm
A9030065
FLAT-PACK CASES 150 N, Vers. I
Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.
Version Without handle bar
Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs
A9030065
FLAT-PACK CASES 150 N, Vers. Iproduct added to your list
off-white RAL 9002
150x80x50mm
A9031065
FLAT-PACK CASE 150 H, Vers. I
Two-piece case with high top and open side base. Fastenings pillars for PCB mounting.
Version without handle bar.
Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs
A9031065
FLAT-PACK CASE 150 H, Vers. Iproduct added to your list
off-white RAL 9002
150x80x80mm
A9032065
FLAT-PACK CASES 150 N, Vers. I
Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.
Version Without handle bar
Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs
A9032065
FLAT-PACK CASES 150 N, Vers. Iproduct added to your list
off-white RAL 9002
150x80x55mm
A9040065
FLAT-PACK CASES 189 N, Vers. I
Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.
Version Without handle bar
Supply 1 top and base part, 4 M3-screws for case, 4 screws for the mounting of PCBs
A9040065
FLAT-PACK CASES 189 N, Vers. Iproduct added to your list
off-white RAL 9002
189x110x60mm
A9041065
FLAT-PACK CASE 189 H, Vers. I
Two-piece case with high top and open side base. Fastenings pillars for PCB mounting.
Version Without handle bar
Supply 1 top and base part, 4 M3-screws for case, 4 screws for the mounting of PCBs
A9041065
FLAT-PACK CASE 189 H, Vers. Iproduct added to your list
off-white RAL 9002
189x110x97mm
A9042065
FLAT-PACK CASE 189 H, Vers. I
Two-piece case with high top and open side base. Fastenings pillars for PCB mounting.
Version Without handle bar
Supply 1 top and base part, 4 M3-screws for case, 4 screws for the mounting of PCBs
A9042065
FLAT-PACK CASE 189 H, Vers. Iproduct added to your list
off-white RAL 9002
189x110x120mm
A9043065
FLAT-PACK CASES 189 N, Vers. I
Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.
Version Without handle bar
Supply 1 top and base part, 4 M3-screws for case, 4 screws for the mounting of PCBs
A9043065
FLAT-PACK CASES 189 N, Vers. Iproduct added to your list
off-white RAL 9002
189x110x70mm
A9043265
FLAT-PACK CASE 189 L
Two-piece case. Top part with ventilation slots and open side base. Fastenings pillars for PCB mounting.
Supply 1 top and base part, 4 M3-screws for case, 4 screws for the mounting of PCBs
A9043265
FLAT-PACK CASE 189 Lproduct added to your list
off-white RAL 9002
189x110x70mm
A9092107
DIATEC XS
Two-part case. The bottom part can be fixed directly to the wall, the top part is fixed by Torx T10 stainless steel screws from above or below. Recessed operating area to protect the membrane keyboard. Fastening pillars in the bottom and top part. Integrated battery compartment for 2 x AA.
Supply Top and bottom part, assembly kit
A9092107
DIATEC XSproduct added to your list
off-white RAL 9002
150x37x155mm
A9092108
DIATEC XS
Two-part case. The bottom part can be fixed directly to the wall, the top part is fixed by Torx T10 stainless steel screws from above or below. Recessed operating area to protect the membrane keyboard. Fastening pillars for PCB in the bottom and top parts. Integrated battery compartment for 2 x AA.
Supply Top and bottom part, assembly kit
A9092108
DIATEC XSproduct added to your list
lava
150x37x155mm
A9408330
SHELL-TYPE CASES O 155, Vers. I
Two-part plastic case with open front and open rear. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9408330
SHELL-TYPE CASES O 155, Vers. Iproduct added to your list
off-white RAL 9002
95x158x33mm
A9408331
SHELL-TYPE CASES G 155, Vers. I
Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9408331
SHELL-TYPE CASES G 155, Vers. Iproduct added to your list
off-white RAL 9002
95x158x33mm
A9408333
SHELL-TYPE CASES V 155, Vers. I
Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9408333
SHELL-TYPE CASES V 155, Vers. Iproduct added to your list
off-white RAL 9002
95x158x33mm
A9408340
SHELL-TYPE CASES O 155, Vers. I
Two-part plastic case with open front and open rear. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9408340
SHELL-TYPE CASES O 155, Vers. Iproduct added to your list
off-white RAL 9002
95x158x45mm
A9408341
SHELL-TYPE CASES G 155, Vers. I
Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9408341
SHELL-TYPE CASES G 155, Vers. Iproduct added to your list
off-white RAL 9002
95x158x45mm
A9408343
SHELL-TYPE CASES V 155, Vers. I
Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9408343
SHELL-TYPE CASES V 155, Vers. Iproduct added to your list
off-white RAL 9002
95x158x45mm
A9408351
SHELL-TYPE CASES G 155, Vers. I
Two-part plastic case with closed front and rear. Top view with recessed area. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9408351
SHELL-TYPE CASES G 155, Vers. Iproduct added to your list
off-white RAL 9002
95x158x33.5mm
A9408440
SHELL-TYPE CASES O 155, Vers. I
Two-part plastic case with open front and open rear. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9408440
SHELL-TYPE CASES O 155, Vers. Iproduct added to your list
off-white RAL 9002
95x155x57mm
A9408441
SHELL-TYPE CASES G 155, Vers. I
Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9408441
SHELL-TYPE CASES G 155, Vers. Iproduct added to your list
off-white RAL 9002
95x158x57mm
A9408443
SHELL-TYPE CASES V 155, Vers. I
Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9408443
SHELL-TYPE CASES V 155, Vers. Iproduct added to your list
off-white RAL 9002
95x158x57mm
A9413330
SHELL-TYPE CASES O 190, Vers. I
Two-part plastic case with open front and open rear. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9413330
SHELL-TYPE CASES O 190, Vers. Iproduct added to your list
off-white RAL 9002
138x190x45mm
A9413331
SHELL-TYPE CASES G 190, Vers. I
Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9413331
SHELL-TYPE CASES G 190, Vers. Iproduct added to your list
off-white RAL 9002
138x190x45mm
A9413333
SHELL-TYPE CASES V 190, Vers. I
Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9413333
SHELL-TYPE CASES V 190, Vers. Iproduct added to your list
off-white RAL 9002
138x190x45mm
A9413340
SHELL-TYPE CASES O 190, Vers. I
Two-part plastic case with open front and open rear. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9413340
SHELL-TYPE CASES O 190, Vers. Iproduct added to your list
off-white RAL 9002
138x190x68mm
A9413341
SHELL-TYPE CASES G 190, Vers. I
Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9413341
SHELL-TYPE CASES G 190, Vers. Iproduct added to your list
off-white RAL 9002
138x190x68mm
A9413343
SHELL-TYPE CASES V 190, Vers. I
Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9413343
SHELL-TYPE CASES V 190, Vers. Iproduct added to your list
off-white RAL 9002
138x190x68mm
A9413351
SHELL-TYPE CASES G 190, Vers. I
Two-part plastic case with closed front and rear. Top view with recessed area. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9413351
SHELL-TYPE CASES G 190, Vers. Iproduct added to your list
off-white RAL 9002
138x190x45.5mm
A9413440
SHELL-TYPE CASES O 190, Vers. I
Two-part plastic case with open front and open rear. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9413440
SHELL-TYPE CASES O 190, Vers. Iproduct added to your list
off-white RAL 9002
138x190x91mm
A9413441
SHELL-TYPE CASES G 190, Vers. I
Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9413441
SHELL-TYPE CASES G 190, Vers. Iproduct added to your list
off-white RAL 9002
138x190x91mm
A9413443
SHELL-TYPE CASES V 190, Vers. I
Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9413443
SHELL-TYPE CASES V 190, Vers. Iproduct added to your list
off-white RAL 9002
138x190x91mm
A9530165
FLAT-PACK CASE 150 A
Two-piece case. The front panel, see accessory A9195301, rests upon four spring posts and is held without screws by the case frame. Fastenings pillars for PCB mounting.
Supply 1 top and base part, assembly kit
A9530165
FLAT-PACK CASE 150 Aproduct added to your list
off-white RAL 9002
150x85x45mm
A9540165
FLAT-PACK CASE 210 A
Two-piece case. The front panel, see accessory A9195401, rests upon four spring posts and is held without screws by the case frame. Fastenings pillars for PCB mounting.
Supply 1 top and base part, assembly kit
A9540165
FLAT-PACK CASE 210 Aproduct added to your list
off-white RAL 9002
210x125x70mm
Customising options for B1360048
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Technical Data
-
3D-Models & Drawings / Info
- Purchasing Data
Material
Adapter
Wall suspension element
Colour
Wall suspension element
pebble grey RAL 7032,
Adapter off-white RAL 9002
Adapter off-white RAL 9002
Standards
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 158 KB
- AutoCAD DWG-File 254 KB
- AutoCAD DXF-File 617 KB
Weight/1 part
21 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for B1360048 and don't forget to request a quotation!
