WHICH FIXING SYSTEM SHOULD YOU SPECIFY FOR YOUR POTENTIOMETER KNOBS?

WHY THE RIGHT FIXING SYSTEM MATTERS

Every knob on a front panel is only as good as the joint holding it to the spindle. Get that joint wrong and you inherit a slow, steady list of problems:

• knobs that slip under load
• indicator lines that drift out of register
• assembly lines that take too long
• a warranty return because a knob parted company with the unit.

In theory, none of this is complex. But in practice it’s the sort of detail that separates an elegant precise control from one that feels cheap. So it matters.

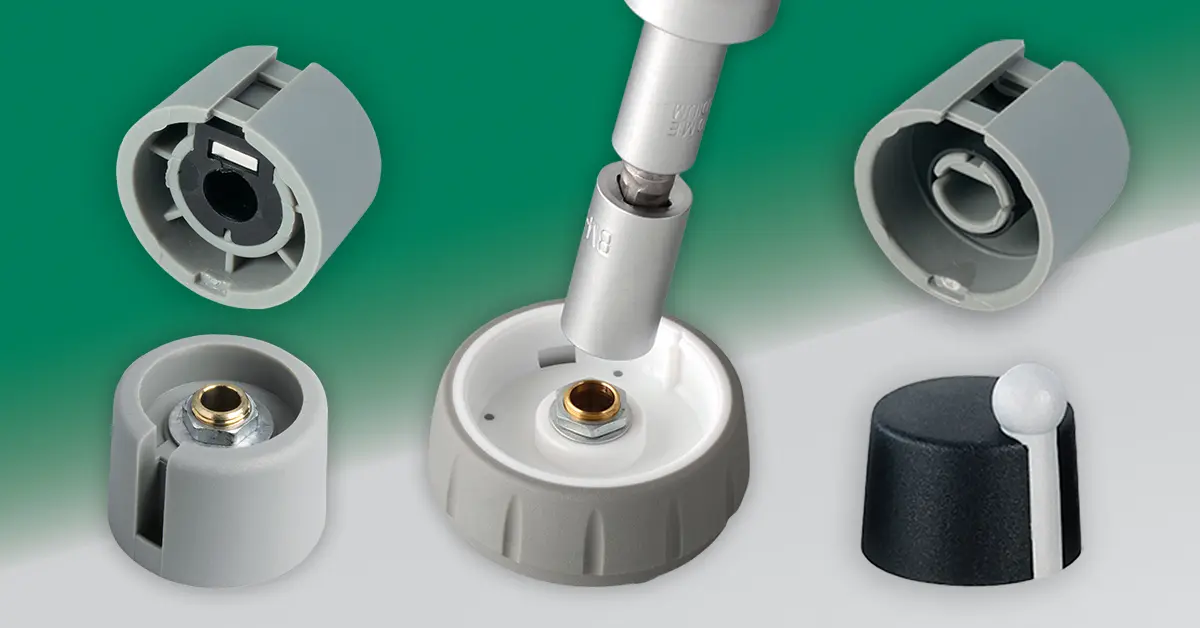

There are three main fixing systems for potentiometer and encoder knobs: collet fixture, lateral screw and push-on friction fit. Each has a genuine engineering rationale – and each has a failure mode that you need to design around. Here’s how to choose between them.

A quick word on shafts first. Nearly all of this hardware is built around DIN 41591, the standard that defines the round potentiometer and encoder shaft end. Common spindle diameters are 3, 4, 6 and 8 mm, plus 1/4 inch, and many components also support the flattened D-shaft profile at 6/4.6 mm for anti-rotation. It’s important to specify potentiometers with the right shaft for your application – otherwise you could be forced to compromise on the knob.

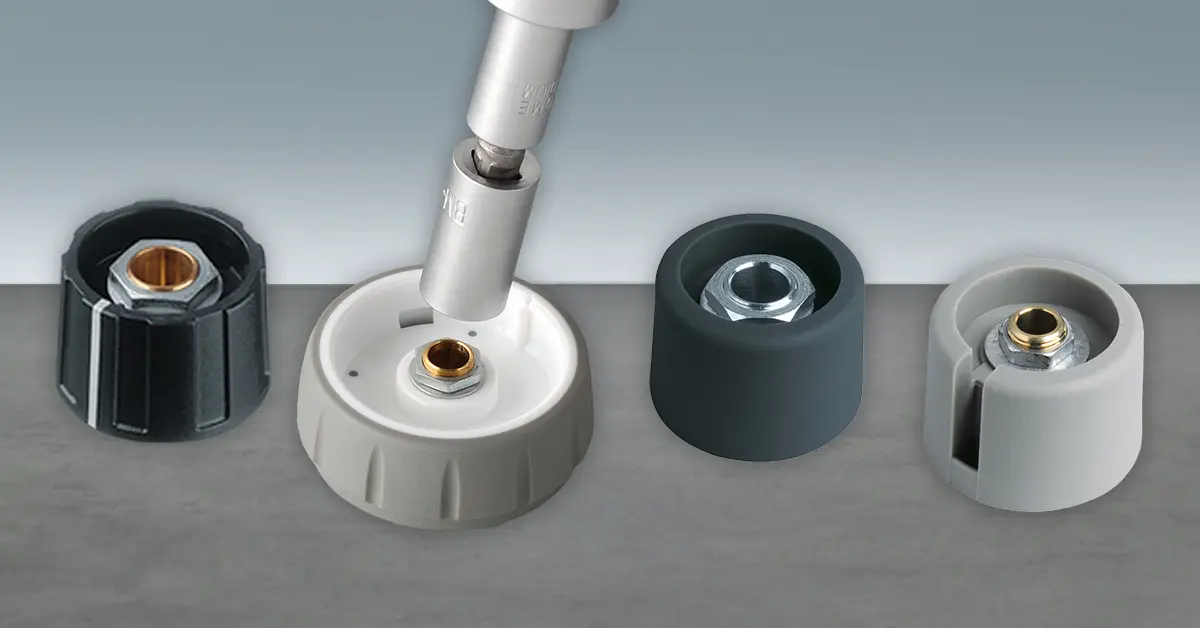

COLLET FIXTURE KNOBS

A collet-fixing knob uses an internal (usually brass) sleeve that closes around the spindle when a screw or cam mechanism inside the knob body is tightened. Unlike a set screw biting into one point on the shaft circumference, the collet clamps around the full perimeter, distributing the clamping force evenly.

The practical benefit of this is threefold:

• Torque transfer is high relative to the size of the fixing, because the whole collet surface is loaded rather than a single point of contact. Typical figures for OKW’s collet-fixed control knobs are an installation torque of around 1.5 Nm and a functional (in-use) torque capacity of around 1.2 Nm. This comfortably covers rotary potentiometers, rotary encoders and touch/click menu functions on consumer and professional equipment.
• The fixing is entirely internal so the front-panel appearance stays clean, with no visible screw head or slot to spoil the aesthetic or catch dirt.
• Collet knobs are assembled from the front in one motion, with no need to reach behind the panel – and this matters a lot on a production line. That’s a genuine cycle-time advantage on high-volume builds.

The trade-off is cost and complexity. A collet mechanism is a more sophisticated part than a plain knob body, so unit cost is higher than a basic push-on equivalent. Collet knobs are also specified to a particular bore size and spindle diameter, so there’s less tolerance for using the wrong reducing insert than you might assume, and the knob depends on a round or DIN 41591 shaft end to seat correctly.

Where the mechanism is a screw-actuated brass collet, you also need clear rear or axial access for the actuation screw during assembly, even though the fixing itself doesn’t protrude once installed.

Where to use it: menu-driven interfaces, rotary encoders with a push/click function, medical and laboratory instruments, and any high-volume consumer or industrial product where fast front-panel assembly and a tidy appearance both matter. This is why you’ll find it as the default fixing across ranges such as CONTROL-KNOBS, COM-KNOBS and COMBINATION KNOBS spanning ø9 mm to ø50 mm bodies on 3, 4, 6, 8 mm, 1/8" and 1/4" inch spindles.

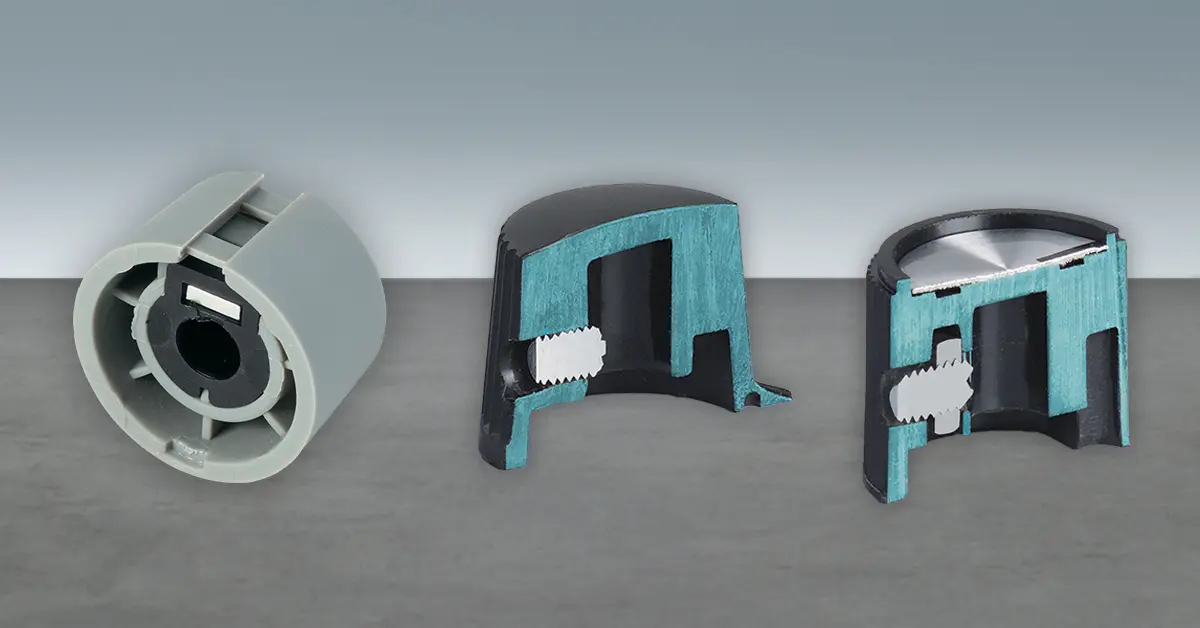

LATERAL SCREW FIXING KNOBS

This is the traditional approach: a set screw entering the knob body radially and bearing directly on to the flat or round face of the spindle. A cup-point profile is the usual choice, since it bites into the shaft surface and resists rotation – without the screw wandering off-centre. Our award-winning TOP-KNOBS range gives a typical hex-socket set screw (1.5 mm) with a maximum tightening torque of 40 to 65 Ncm (depending on knob size) across a body diameter range of ø16 mm to ø40 mm.

Lateral screw fixing offers a number of advantages. It’s mechanically simple and inexpensive to produce – and it can be re-tightened repeatedly without wearing out the clamping mechanism. And because the screw contacts the spindle directly rather than through an intermediate sleeve, it can be specified with generous torque margins on more traditional, heavier-duty knob bodies.

Set against that, the screw head is, by definition, on the outside of the knob, which is a cosmetic and safety consideration. Our design answer to this on ranges such as TOP-KNOBS is a separate arrow or marking disk that is clipped on to the knob afterwards, hiding the screw completely and removing any risk of accidental contact with a live shaft. That’s a sound detail to specify if you go this route but it does add an assembly step and a component.

You’ll also need side access to the knob for a hex key during assembly and any subsequent service. This is a constraint on densely packed panels, and a set screw biting into a single point on the shaft carries a higher risk of marring a soft-shaft potentiometer over repeated fitting and refitting than a collet’s distributed clamp.

Vibration is worth a design check too: a point-contact fixing is more prone to working loose under sustained mechanical vibration than a full-perimeter clamp, so a thread-locking compound is worth considering in vibration-heavy applications such as vehicle or plant equipment.

Where to use it: classic-styled instrument and control panels; equipment needing a metal-cap or insert-embellisher aesthetic; higher-torque manual controls; applications where thermal stability outweighs the cosmetic and assembly-access downsides of an external screw.

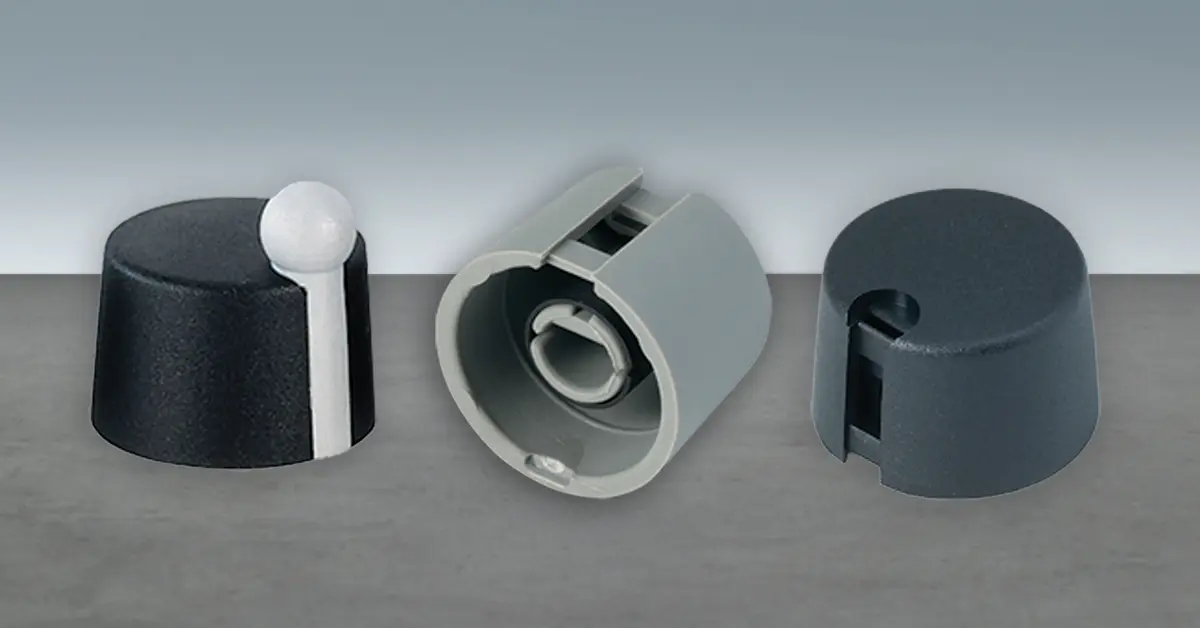

PUSH-ON FRICTION-FIT KNOBS

The simplest fixing of all: no screw, no collet – just a knob bore sized to grip the spindle by friction or a light interference fit, sometimes assisted by internal ribs or a serrated bore that bite slightly into the shaft surface. Assembly is a single push, front of panel, with no tool at all.

The appeal is obvious. It’s the lowest-cost option per unit, the fastest to assemble by hand or by automated pick-and-place, and there’s nothing to loosen off internally over time in the sense of a screw backing out. Push-on fixing also suits knobs that are genuinely never meant to come off again, such as sealed consumer appliance controls.

The limitation is equally obvious once you think about torque and tolerance. Retention depends entirely on tightness of fit, so it’s sensitive to moulding tolerance stack-up, to thermal expansion differences between the plastic knob and a metal spindle, and to repeated removal and refitting – all of which reduce grip over time.

Push-on fixing is not the choice for a knob that will see frequent adjustment under load, high ambient temperature swings, or any application where the knob coming loose has a safety or performance consequence. It’s also not ideal for indexed or pointer knobs on splined shafts if the marking has to land in exactly the same rotational position every time it’s fitted (though this is not an issue if the potentiometer has a flattened D-shaft and the knob pointer is designed to take account of this).

Where to use it: low-cost consumer electronics, single-fit assemblies with no expected rework, and simple rotary switches or basic level controls where precise torque capacity and long-term retention under stress are not the priority.

GETTING IT RIGHT FIRST TIME

None of these three systems is universally ‘better’. Each is a considered trade-off between torque capacity, assembly speed, cosmetic finish and cost; the right answer depends on your product’s duty cycle, environment and volume. If you’re specifying knobs for a new design and want to work through the torque, spindle and tolerance detail against your actual application, our technical team can talk you through it. Request a sample, download drawings/3D models and contact us.
