Accessories for enclosures
B7136062
CONTROL-KNOBS 36
Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.
Traffic white colour optic ring on the top surface
Supply1 knob (minimum components for 1 CONTROL-KNOB: 1 knob, 1 cover, 1 base if required)
2D PDF Drawing
3D PDF View
3D/2D download
3D/2D download
Generate Your PDF Datasheet for B7136062
Please select the product details you would like to include in the PDF.
Add to my basket
Accessory "screws"
A6207009
Round nut M7 x 0.75
For fixing the potentiometers at front panels.
Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.
Supply 1 round nut
A6207009
Round nut M7 x 0.75product added to your list
A6210009
Round nut M10 x 0.75
For fixing the potentiometers at front panels.
Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.
Supply 1 round nut
A6210009
Round nut M10 x 0.75product added to your list
A6295009
Round nut 3/8"-32G
For fixing the potentiometers at front panels.
Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.
Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.
Supply 1 round nut
A6295009
Round nut 3/8"-32Gproduct added to your list
A6300000
Spanner
For tightening the round nut. Suitable for round nuts M7 x 0.75, M10 x 0.75 and 3/8"-32G.
Supply 1 spanner
A6300000
Spannerproduct added to your list
Accessory
B7536108
Cover 36
Suitable for CONTROL-KNOBS 36. Simply push on.
Supply 1 cover
B7536108
Cover 36product added to your list
volcano
B7536109
Cover 36
Suitable for CONTROL-KNOBS 36. Simply push on.
Supply 1 cover
B7536109
Cover 36product added to your list
nero
B7536208
Base 36
Suitable for all CONTROL-KNOBS 36. Additional machining of front panel/enclosure front is required (hole for potentiometer spindle and slot for anti-rotation device).
Use:
- Mandatory for "CONTROL-KNOBS 36, optional illumination" for installing the LED illumination.
- On request, can also be used for all "CONTROL-KNOBS 36 without illumination". Here, the base provides additional space between the knob and the operating panel for an elegant floating appearance.
Use:
- Mandatory for "CONTROL-KNOBS 36, optional illumination" for installing the LED illumination.
- On request, can also be used for all "CONTROL-KNOBS 36 without illumination". Here, the base provides additional space between the knob and the operating panel for an elegant floating appearance.
Supply 1 base
B7536208
Base 36product added to your list
volcano
B7536209
Base 36
Suitable for all CONTROL-KNOBS 36. Additional machining of front panel/enclosure front is required (hole for potentiometer spindle and slot for anti-rotation device).
Use:
- Mandatory for "CONTROL-KNOBS 36, optional illumination" for installing the LED illumination.
- On request, can also be used for all "CONTROL-KNOBS 36 without illumination". Here, the base provides additional space between the knob and the operating panel for an elegant floating appearance.
Use:
- Mandatory for "CONTROL-KNOBS 36, optional illumination" for installing the LED illumination.
- On request, can also be used for all "CONTROL-KNOBS 36 without illumination". Here, the base provides additional space between the knob and the operating panel for an elegant floating appearance.
Supply 1 base
B7536209
Base 36product added to your list
nero
Customising options for B7136062
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Technical Data
-
3D-Models & Drawings / Info

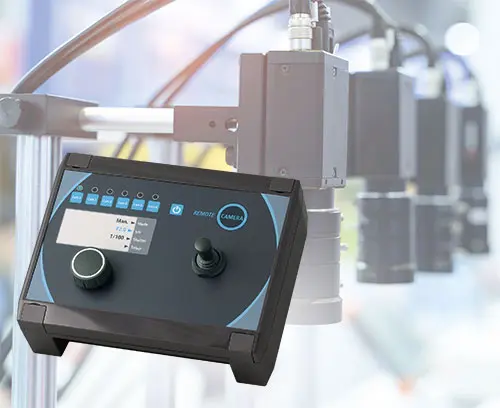

- Application Examples
- Purchasing Data
Material
Knob body
Outer shell
Colour
Outer shell
nero,
Knob body traffic white RAL 9016
Knob body traffic white RAL 9016
Standards
Diameter
36 mm
Height
14.7 mm
Bore hole
6 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 252 KB
- AutoCAD DWG-File 401 KB
- AutoCAD DXF-File 1,479 KB
- 3D PDF View (Acrobat Reader) (turn the product 360°, blind components out for inside view, view accessories...) 358 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00027317.x_t 3,326 KB
- 00027317.step 5,840 KB
- 00027317.sat 5,674 KB
Weight/1 part
13 g
Customs tariff number
(OKW product)
(OKW product)
84879090
Country of manufacture
Germany
Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for B7136062 and don't forget to request a quotation!
