Accessories for enclosures
B7536208

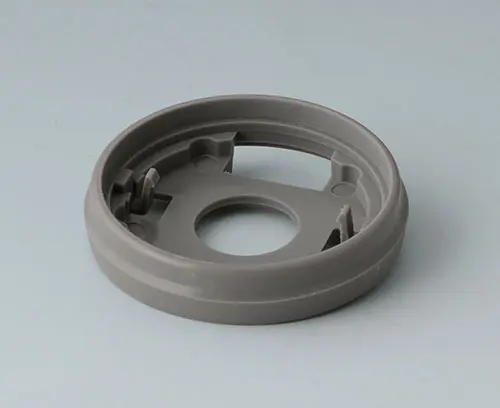

Base 36
Suitable for all CONTROL-KNOBS 36. Additional machining of front panel/enclosure front is required (hole for potentiometer spindle and slot for anti-rotation device).
Use:
- Mandatory for "CONTROL-KNOBS 36, optional illumination" for installing the LED illumination.
- On request, can also be used for all "CONTROL-KNOBS 36 without illumination". Here, the base provides additional space between the knob and the operating panel for an elegant floating appearance.
1 base
2D PDF Drawing
3D PDF View
3D/2D download
3D/2D download
Generate Your PDF Datasheet for B7536208
Please select the product details you would like to include in the PDF.
Add to my basket
System components to complete
B7136061
CONTROL-KNOBS 36, optional illumination
Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).
Version With optional illumination – translucent optic ring on the top surface
Supply 1 knob, (minimum components for 1 CONTROL-KNOB, with illumination: 1 knob, illuminated version, 1 cover, 1 base and 1 LED lighting kit)
B7136061
CONTROL-KNOBS 36, optional illuminationproduct added to your list
nero
36x14.7mm
Bore hole 6mm
B7136062
CONTROL-KNOBS 36
Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.
Version Traffic white colour optic ring on the top surface
Supply 1 knob (minimum components for 1 CONTROL-KNOB: 1 knob, 1 cover, 1 base if required)
B7136062
CONTROL-KNOBS 36product added to your list
nero
36x14.7mm
Bore hole 6mm
B7136063
CONTROL-KNOBS 36, optional illumination
Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).
Version With optional illumination – translucent optic ring on the top surface
Supply 1 knob, (minimum components for 1 CONTROL-KNOB, with illumination: 1 knob, illuminated version, 1 cover, 1 base and 1 LED lighting kit)
B7136063
CONTROL-KNOBS 36, optional illuminationproduct added to your list
volcano
36x14.7mm
Bore hole 6mm
B7136064
CONTROL-KNOBS 36
Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.
Version Traffic white colour optic ring on the top surface
Supply 1 knob (minimum components for 1 CONTROL-KNOB: 1 knob, 1 cover, 1 base if required)
B7136064
CONTROL-KNOBS 36product added to your list
volcano
36x14.7mm
Bore hole 6mm
B7136631
CONTROL-KNOBS 36, optional illumination
Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).
Version With optional illumination – translucent optic ring on the top surface
Supply 1 knob, (minimum components for 1 CONTROL-KNOB, with illumination: 1 knob, illuminated version, 1 cover, 1 base and 1 LED lighting kit)
B7136631
CONTROL-KNOBS 36, optional illuminationproduct added to your list
nero
36x14.7mm
Bore hole 1/4″
B7136632
CONTROL-KNOBS 36
Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.
Version Traffic white colour optic ring on the top surface
Supply 1 knob (minimum components for 1 CONTROL-KNOB: 1 knob, 1 cover, 1 base if required)
B7136632
CONTROL-KNOBS 36product added to your list
nero
36x14.7mm
Bore hole 1/4″
B7136633
CONTROL-KNOBS 36, optional illumination
Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).
Version With optional illumination – translucent optic ring on the top surface
Supply 1 knob, (minimum components for 1 CONTROL-KNOB, with illumination: 1 knob, illuminated version, 1 cover, 1 base and 1 LED lighting kit)
B7136633
CONTROL-KNOBS 36, optional illuminationproduct added to your list
volcano
36x14.7mm
Bore hole 1/4″
B7136634
CONTROL-KNOBS 36
Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.
Version Traffic white colour optic ring on the top surface
Supply 1 knob (minimum components for 1 CONTROL-KNOB: 1 knob, 1 cover, 1 base if required)
B7136634
CONTROL-KNOBS 36product added to your list
volcano
36x14.7mm
Bore hole 1/4″
B7236061
CONTROL-KNOBS 36, optional illumination
Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).
Version With optional illumination – translucent optic ring on the top surface and pointer line on the side
Supply 1 knob, (minimum components for 1 CONTROL-KNOB, with illumination: 1 knob, illuminated version, 1 cover, 1 base and 1 LED lighting kit)
B7236061
CONTROL-KNOBS 36, optional illuminationproduct added to your list
nero
36x14.7mm
Bore hole 6mm
B7236062
CONTROL-KNOBS 36
Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.
Version Traffic white colour optic ring on the top surface with pointer line on the side
Supply 1 knob (minimum components for 1 CONTROL-KNOB: 1 knob, 1 cover, 1 base if required)
B7236062
CONTROL-KNOBS 36product added to your list
nero
36x14.7mm
Bore hole 6mm
B7236063
CONTROL-KNOBS 36, optional illumination
Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).
Version With optional illumination – translucent optic ring on the top surface and pointer line on the side
Supply 1 knob, (minimum components for 1 CONTROL-KNOB, with illumination: 1 knob, illuminated version, 1 cover, 1 base and 1 LED lighting kit)
B7236063
CONTROL-KNOBS 36, optional illuminationproduct added to your list
volcano
36x14.7mm
Bore hole 6mm
B7236064
CONTROL-KNOBS 36
Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.
Version Traffic white colour optic ring on the top surface with pointer line on the side
Supply 1 knob (minimum components for 1 CONTROL-KNOB: 1 knob, 1 cover, 1 base if required)
B7236064
CONTROL-KNOBS 36product added to your list
volcano
36x14.7mm
Bore hole 6mm
B7236631
CONTROL-KNOBS 36, optional illumination
Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).
Version With optional illumination – translucent optic ring on the top surface and pointer line on the side
Supply 1 knob, (minimum components for 1 CONTROL-KNOB, with illumination: 1 knob, illuminated version, 1 cover, 1 base and 1 LED lighting kit)
B7236631
CONTROL-KNOBS 36, optional illuminationproduct added to your list
nero
36x14.7mm
Bore hole 1/4″
B7236632
CONTROL-KNOBS 36
Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.
Version Traffic white colour optic ring on the top surface with pointer line on the side
Supply 1 knob (minimum components for 1 CONTROL-KNOB: 1 knob, 1 cover, 1 base if required)
B7236632
CONTROL-KNOBS 36product added to your list
nero
36x14.7mm
Bore hole 1/4″
B7236633
CONTROL-KNOBS 36, optional illumination
Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).
Version With optional illumination – translucent optic ring on the top surface and pointer line on the side
Supply 1 knob, (minimum components for 1 CONTROL-KNOB, with illumination: 1 knob, illuminated version, 1 cover, 1 base and 1 LED lighting kit)
B7236633
CONTROL-KNOBS 36, optional illuminationproduct added to your list
volcano
36x14.7mm
Bore hole 1/4″
B7236634
CONTROL-KNOBS 36
Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.
Version Traffic white colour optic ring on the top surface with pointer line on the side
Supply 1 knob (minimum components for 1 CONTROL-KNOB: 1 knob, 1 cover, 1 base if required)
B7236634
CONTROL-KNOBS 36product added to your list
volcano
36x14.7mm
Bore hole 1/4″
Accessory
B7546001
LED illumination kit, 8 LEDs (RGB backlight)
Board D=27 mm with 8 LEDs (RGB backlight), without controller, SMD technology, connecting cable 120 mm long, 4-pin socket at the end, incl. connector.
Recommended for:STAR-KNOBS 33 / 41
- flush-fitting version: only in conjunction with the diamond knob
- surface-mounted version: only in conjunction with the diamond assembly kit
CONTROL-KNOBS 36 with optional illumination
- installation in the bases available as accessories
Supply 1 LED illumination kit (RGB backlight)
B7546001
LED illumination kit, 8 LEDs (RGB backlight)product added to your list
- Technical Data
-
3D-Models & Drawings / Info
- Purchasing Data
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 297 KB
- AutoCAD DWG-File 556 KB
- AutoCAD DXF-File 2,103 KB
- 3D PDF View (Acrobat Reader) (turn the product 360°, blind components out for inside view, view accessories...) 64 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00027316.x_t 361 KB
- 00027316.step 955 KB
- 00027316.sat 722 KB
Weight/1 part
3 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
