Accessories for enclosures

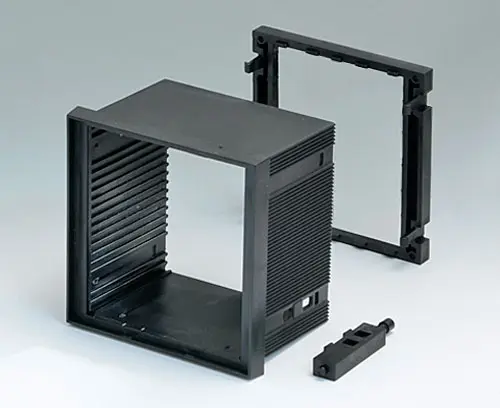

B6034011
DIN-MODULAR CASE TYPE A, Vers. I
Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. Does not correspond exactly to DIN IEC 61554.
VersionWith guide ridges for slide-in PCB mounting on 2 sides
Supply1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation
2D PDF Drawing
3D PDF View
3D/2D download
3D/2D download
Generate Your PDF Datasheet for B6034011
Please select the product details you would like to include in the PDF.
Add to my basket
Accessory to complete
B6134111
Front panel
Front panel for DIN-MODULAR CASE 96 x 96.
Supply 1 front panel
B6134111
Front panelproduct added to your list
matt anodised
90.6x90.6x1.5mm

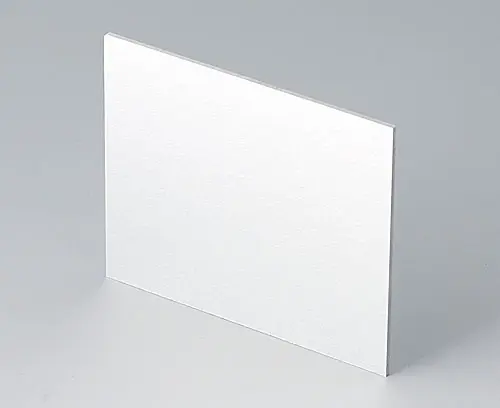

B6134112
Rear panel
Rear panel for DIN-MODULAR CASE 96 x 96.
Supply 1 rear panel
B6134112
Rear panelproduct added to your list
matt anodised
86.7x71.7x1.5mm

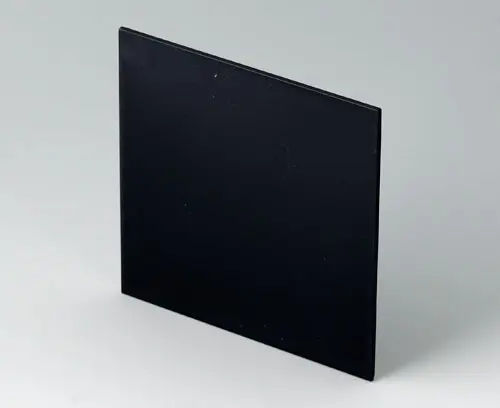

B6134221
Front panel
Front panel for DIN-MODULAR CASE 96 x 96.
Supply 1 front panel
B6134221
Front panelproduct added to your list
black RAL 9005
90.7x90.7x2mm

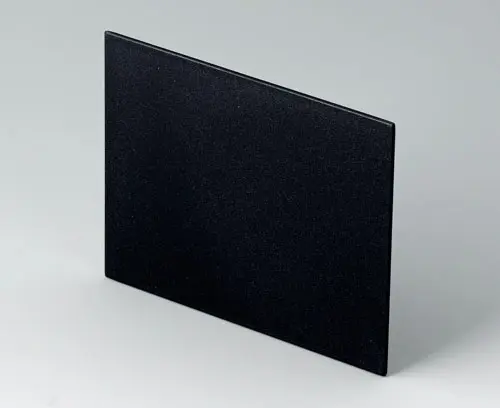

B6134222
Rear panel
Rear panel for DIN-MODULAR CASE 96 x 96.
Supply 1 rear panel
B6134222
Rear panelproduct added to your list
black RAL 9005
86.8x71.8x1.7mm

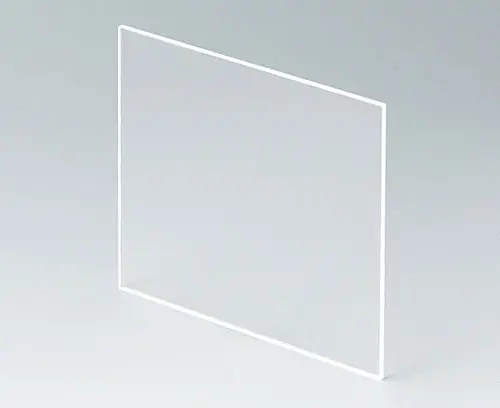

B6134331
Front panel
Front panel for DIN-MODULAR CASE 96 x 96.
Supply 1 front panel
B6134331
Front panelproduct added to your list
transparent
90.6x90.6x2.2mm

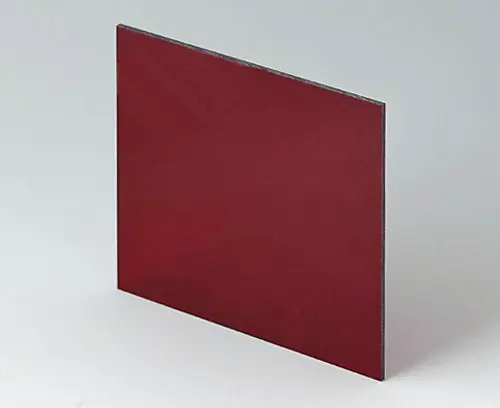

B6134341
Front panel
Front panel for DIN-MODULAR CASE 96 x 96.
Supply 1 front panel
B6134341
Front panelproduct added to your list
red transparent
90.6x90.6x2mm
Accessory "protection"

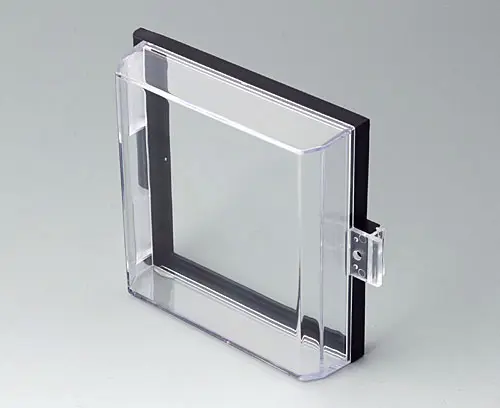

B6134533
Protection cover
Protection cover for DIN-MODULAR CASE 96 x 96.
Supply 1 protection cover
B6134533
Protection coverproduct added to your list
transparent
Customising options for B6034011
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Technical Data
-
3D-Models & Drawings / Info
- Purchasing Data
Width
96 mm
Height
96 mm
Depth
57 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 173 KB
- AutoCAD DWG-File 365 KB
- AutoCAD DXF-File 1,197 KB
- 3D PDF View (Acrobat Reader) (turn the product 360°, blind components out for inside view, view accessories...) 144 KB
Weight/1 part
90 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Italy
Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for B6034011 and don't forget to request a quotation!
