Accessories for enclosures
B6134112
Rear panel
Rear panel for DIN-MODULAR CASE 96 x 96.
Supply1 rear panel
Generate Your PDF Datasheet for B6134112
Please select the product details you would like to include in the PDF.
Add to my basket
B6034011
DIN-MODULAR CASE TYPE A, Vers. I
Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. Does not correspond exactly to DIN IEC 61554.
Version With guide ridges for slide-in PCB mounting on 2 sides
Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation
B6034011
DIN-MODULAR CASE TYPE A, Vers. Iproduct added to your list
black RAL 9005
96x96x57mm

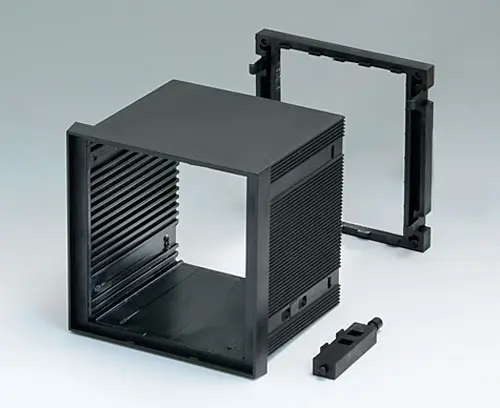

B6034021
DIN-MODULAR CASE TYPE A, Vers. I
Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. Does not correspond exactly to DIN IEC 61554.
Version With guide ridges for slide-in PCB mounting on 2 sides
Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation
B6034021
DIN-MODULAR CASE TYPE A, Vers. Iproduct added to your list
black RAL 9005
96x96x75mm
B6034031
DIN-MODULAR CASE TYPE A, Vers. I
Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. Does not correspond exactly to DIN IEC 61554.
Version With guide ridges for slide-in PCB mounting on 2 sides
Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation
B6034031
DIN-MODULAR CASE TYPE A, Vers. Iproduct added to your list
black RAL 9005
96x96x100mm

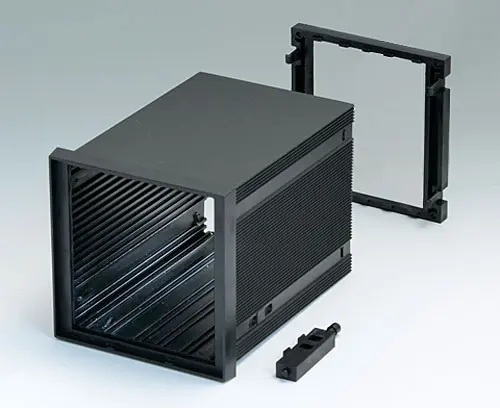

B6034062
DIN-MODULAR CASE TYPE A, Vers. II
Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. Does not correspond exactly to DIN IEC 61554.
Version With guide ridges for slide-in PCB mounting on 4 sides
Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation
B6034062
DIN-MODULAR CASE TYPE A, Vers. IIproduct added to your list
black RAL 9005
96x96x124mm

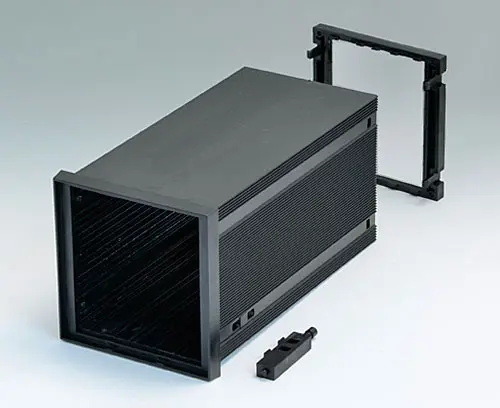

B6034102
DIN-MODULAR CASE TYPE A, Vers. II
Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. Does not correspond exactly to DIN IEC 61554.
Version With guide ridges for slide-in PCB mounting on 4 sides
Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation
B6034102
DIN-MODULAR CASE TYPE A, Vers. IIproduct added to your list
black RAL 9005
96x96x179mm
Customising options for B6134112
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
Width
86.7 mm
Height
71.7 mm
Thickness
1.5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
16 g
Customs tariff number
(OKW product)
(OKW product)
76069200
Country of manufacture
Italy
Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for B6134112 and don't forget to request a quotation!
