Handle bar E

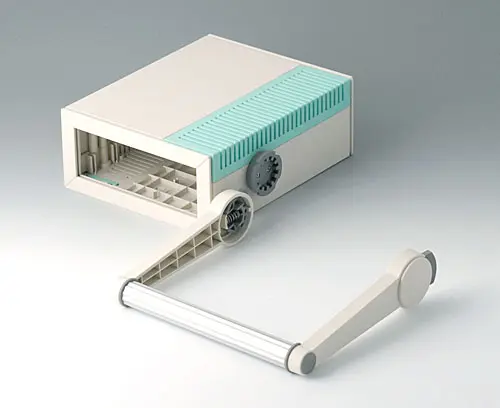

For canting and carrying the unit. To be assembled from the outside. Strong ratchet with 30° indexing. For combination with side panel with hole for handle.
Supply2 side arms, 1 al-profile, antislipping device, lid, assembly kit
3D/2D download
Generate Your PDF Datasheet for B2116507
Please select the product details you would like to include in the PDF.
Add to my basket
System components to complete
B2012007
L-shells E 220, without holes
Component as separate parts: L-shells without hole. Ideal for the instalation of Eurocards 100 x 220 mm or 100 x 160 mm. Side trims 220 (sep. article) necessary for covering the screw fixing.
Supply 2 L-shells, incl. assembly kit, 4 case feet
B2012007
L-shells E 220, without holesproduct added to your list
off-white RAL 9002
160x260x74mm
B2012107
L-shells E 220, with holes for handle
Component as separate parts: L-shells with hole for handle. Ideal for the instalation of Eurocards 100 x 220 mm or 100 x 160 mm. Side trims 220 (sep. article) necessary for covering the screw fixing.
Supply 2 L-shells, incl. assembly kit, 4 case feet
B2012107
L-shells E 220, with holes for handleproduct added to your list
off-white RAL 9002
160x260x74mm
B2013007
L-shells E 160, without holes
Component as separate parts: L-shells without hole. Ideal for the installation of Eurocards 100 x 160 mm. Side trims 220 (sep. article) necessary for covering the screw fixing.
Supply 2 L-shells, incl. assembly kit, 4 case feet
B2013007
L-shells E 160, without holesproduct added to your list
off-white RAL 9002
160x200x74mm
B2013107
L-shells E 160, with holes for handle
Component as separate parts: L-shells with hole for handle. Ideal for the installation of Eurocards 100 x 160 mm. Side trims 220 (sep. article) necessary for covering the screw fixing.
Supply 2 L-shells, incl. assembly kit, 4 case feet
B2013107
L-shells E 160, with holes for handleproduct added to your list
off-white RAL 9002
160x200x74mm
B2020005
Side trims 220, without ventilation
Side trims without ventilation. The trims will be slided laterally onto the L-shells and are self-locking.
Supply 2 side trims
B2020005
Side trims 220, without ventilationproduct added to your list
lagoon
B2020007
Side trims 220, without ventilation
Side trims without ventilation. The trims will be slided laterally onto the L-shells and are self-locking.
Supply 2 side trims
B2020007
Side trims 220, without ventilationproduct added to your list
off-white RAL 9002
B2021005
Side trims 220, with ventilation
Side trims with ventilation. The trims will be slided laterally onto the L-shells and are self-locking.
Supply 2 side trims
B2021005
Side trims 220, with ventilationproduct added to your list
lagoon
B2021007
Side trims 220, with ventilation
Side trims with ventilation. The trims will be slided laterally onto the L-shells and are self-locking.
Supply 2 side trims
B2021007
Side trims 220, with ventilationproduct added to your list
off-white RAL 9002
B2022005
Side trims 160, without ventilation
Side trims without ventilation. The trims will be slided laterally onto the L-shells and are self-locking.
Supply 2 side trims
B2022005
Side trims 160, without ventilationproduct added to your list
lagoon
B2022007
Side trims 160, without ventilation
Side trims without ventilation. The trims will be slided laterally onto the L-Shells and are self-locking.
Supply 2 side trims
B2022007
Side trims 160, without ventilationproduct added to your list
off-white RAL 9002
B2023005
Side trims 160, with ventilation
Side trims with ventilation. The trims will be slided laterally onto the L-Shells and are self-locking.
Supply 2 side trims
B2023005
Side trims 160, with ventilationproduct added to your list
lagoon
B2023007
Side trims 160, with ventilation
Side trims with ventilation. The trims will be slided laterally onto the L-Shells and are self-locking.
Supply 2 side trims
B2023007
Side trims 160, with ventilationproduct added to your list
off-white RAL 9002
B2030107
Side panels 220, with holes for handle
Side panels with hole for 50 mm additional height. Suitable for Meditec D220/E220.
Supply 2 side panels, set of screws
B2030107
Side panels 220, with holes for handleproduct added to your list
off-white RAL 9002
B2031107
Side panels 160, with holes for handle
Side panels with hole for 50 mm additional height. Suitable for Meditec D160/E160.
Supply 2 side panel, set of screws
B2031107
Side panels 160, with holes for handleproduct added to your list
off-white RAL 9002
B2212005
MEDITEC E 220, without handle bar
Complete case. Ideally suited to accommodate single-Eurocards 100 x 220 mm or 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour lagoon), assembly kit, 4 case-feet
B2212005
MEDITEC E 220, without handle barproduct added to your list
off-white RAL 9002
160x260x74mm
B2212007
MEDITEC E 220, without handle bar
Complete case. Ideally suited to accommodate single-Eurocards 100 x 220 mm or 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour off-white), assembly kit, 4 case-feet
B2212007
MEDITEC E 220, without handle barproduct added to your list
off-white RAL 9002
160x260x74mm
B2212015
MEDITEC E 220, without handle bar
Complete case. Ideally suited to accommodate single-Eurocards 100 x 220 mm or 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour lagoon), assembly kit, 4 case-feet
B2212015
MEDITEC E 220, without handle barproduct added to your list
off-white RAL 9002
160x260x74mm
B2212017
MEDITEC E 220, without handle bar
Complete case. Ideally suited to accommodate single-Eurocards 100 x 220 mm or 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour off-white), assembly kit, 4 case-feet
B2212017
MEDITEC E 220, without handle barproduct added to your list
off-white RAL 9002
160x260x74mm
B2213005
MEDITEC E 160, without handle bar
Complete case. Ideally suited to accommodate single-Eurocards 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour lagoon), assembly kit, 4 case-feet
B2213005
MEDITEC E 160, without handle barproduct added to your list
off-white RAL 9002
160x200x74mm
B2213007
MEDITEC E 160, without handle bar
Complete case. Ideally suited to accommodate single-Eurocards 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour off-white), assembly kit, 4 case-feet
B2213007
MEDITEC E 160, without handle barproduct added to your list
off-white RAL 9002
160x200x74mm
B2213015
MEDITEC E 160, without handle bar
Complete case. Ideally suited to accommodate single-Eurocards 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour lagoon), assembly kit, 4 case-feet
B2213015
MEDITEC E 160, without handle barproduct added to your list
off-white RAL 9002
160x200x74mm
B2213017
MEDITEC E 160, without handle bar
Complete case. Ideally suited to accommodate single-Eurocards 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour off-white), assembly kit and 4 case-feet
B2213017
MEDITEC E 160, without handle barproduct added to your list
off-white RAL 9002
160x200x74mm
Accessory to complete
B2116007
Sloping control panel E
Ergonomically sloped operation front. 2-part construction for easy access of components. Recessed area for membrane keyboards. Reading angle wall: 60°, desk top 30°.
Version E (for MEDITEC E160 or E220)
Supply 1 angle, 1 cover, assembly kit
B2116007
Sloping control panel Eproduct added to your list
off-white RAL 9002
B2116307
Front / rear panel E, flat
For case without side panels.
Supply 1 front panel
B2116307
Front / rear panel E, flatproduct added to your list
off-white RAL 9002
141.6x55.6x3mm
B2116407
Front / rear panel Z1
For cases with 1 side panel per side.
Supply 1 front panel Z1
B2116407
Front / rear panel Z1product added to your list
off-white RAL 9002
141.6x105.6x3mm
B2116707
Infill panel E
When using the MEDITEC-cases with 1 intermediate part each right and left hand (case height = 124 mm) and operating front. The front cover locks the access to the case's inside; usable on top of or under the operaring front alternatively.
Version E
Supply 1 front cover (for locking)
B2116707
Infill panel Eproduct added to your list
off-white RAL 9002
142x55x5mm
Accessory "screws"
A9199008
Set of screws
Screw kit for mounting PCBs. Diameter 2.5 x 6 mm, type PZ1.
Supply 4 screws
A9199008
Set of screwsproduct added to your list
Accessory
B2134012
Stacking elements
Stacking elements for secure sandwiching several devices. Screwless fixing in pre-shaped receivers.
Supply 4 stacking elements
B2134012
Stacking elementsproduct added to your list
volcano
Customising options for B2116507
