NET-BOX 140, Vers. I

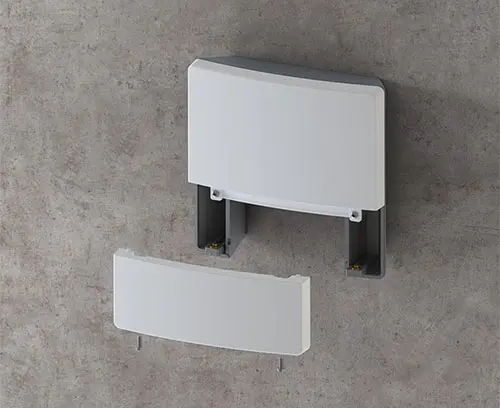

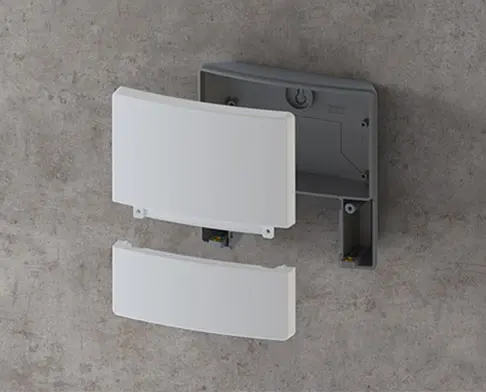

Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.
VersionBottom part without openings.
Supply1 bottom part and 1 top cover, 1 lid and 1 assembly kit
2D PDF Drawing
3D PDF View
3D/2D download
3D/2D download
Generate Your PDF Datasheet for B3214101
Please select the product details you would like to include in the PDF.
Add to my basket
Accessory "protection"
B3314159
Sealing kit 140
Application: for increasing the protection class, of NET-BOX140.
Supply 1 sealing kit
B3314159
Sealing kit 140product added to your list
black
Accessory "wall/holder"
A9325018
Pole/mast mounting bracket
For the secure and stable mounting of IP rated electronic enclosures to poles, masts, and pipes using cable ties or stainless steel screw bands, suitable for pole diameters from 30 mm. The bracket is attached to the rear of the enclosure (four drilled holes required) and is manufactured from UV resistant material.
Note:
Every application (environment, sealing requirements, enclosure size/version, mast diameter, etc.) is different. For this reason, no mounting screws, cable ties or stainless steel screw bands are supplied; only the mast/pipe bracket is included. However, on request, we can provide a wide range of solutions tailored precisely to the intended application.
Supply 1 pole/mast mounting bracket
A9325018
Pole/mast mounting bracketproduct added to your list
anthracite grey RAL 7016
100x100x20mm
Accessory "screws"
A0306031
Self-tapping screws 3 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0306031
Self-tapping screws 3 x 6 mm (PZ1)product added to your list
Accessory
A9207150
Anti-slide feet 6.5 x 2 mm
Rubber feet with self-adhesive foil facilitate a secure position.
Supply 2 rubber feet
A9207150
Anti-slide feet 6.5 x 2 mmproduct added to your list
B3314918
Infill cover 140
With the optional cover you also have the option of fitting a further PCB and visually closing the bottom part of the enclosure.
Supply 1 infill cover
B3314918
Infill cover 140product added to your list
lava
Customising options for B3214101
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Technical Data
-
3D-Models & Drawings / Info
- Application Examples
- Purchasing Data
Material
Protection class
Necessary accessories: sealing kit,
Colour
Top cover and lid
light grey RAL 7035,
Bottom part lava
Bottom part lava
Standards
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Width
140 mm
Height
140 mm
Depth
46.5 mm
PCB length, base
72 mm
PCB width, base
114 mm
PCB length, top
74 mm
PCB width, top
128 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 337 KB
- AutoCAD DWG-File 736 KB
- AutoCAD DXF-File 2,854 KB
- 3D PDF View (Acrobat Reader) (turn the product 360°, blind components out for inside view, view accessories...) 971 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00015130.x_t 2,478 KB
- 00015130.step 6,074 KB
- 00015130.sat 7,530 KB
Weight/1 part
204 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for B3214101 and don't forget to request a quotation!
