Accessories for enclosures
B3314918

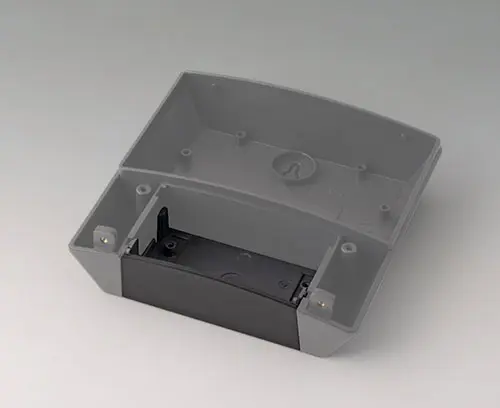

Infill cover 140
With the optional cover you also have the option of fitting a further PCB and visually closing the bottom part of the enclosure.
Supply1 infill cover
Generate Your PDF Datasheet for B3314918
Please select the product details you would like to include in the PDF.
Add to my basket
System components to complete
B3214101
NET-BOX 140, Vers. I
Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.
Version Bottom part without openings.
Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit
B3214101
NET-BOX 140, Vers. Iproduct added to your list
light grey RAL 7035
140x140x46.5mm
,
B3214201
NET-BOX 140, Vers. II
Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.
Version Bottom part with openings for concealed three-point wall mounting: 1 keyhole for central mounting and 2 holes to secure the enclosure on the bottom right and left.
Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit
B3214201
NET-BOX 140, Vers. IIproduct added to your list
light grey RAL 7035
140x140x46.5mm
Accessory "screws"
A0306031
Self-tapping screws 3 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0306031
Self-tapping screws 3 x 6 mm (PZ1)product added to your list
Customising options for B3314918
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
PCB length, base
44 mm
PCB width, base
78 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
26 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Customising service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customising options for B3314918 and don't forget to request a quotation!
