C6009161

Pressure equalisation element M6x0.75 Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 6.5 L/min - 0.25 bar; 16.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Pressure equalisation element M10x1 Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 19.5 L/min - 0.25 bar; 43.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

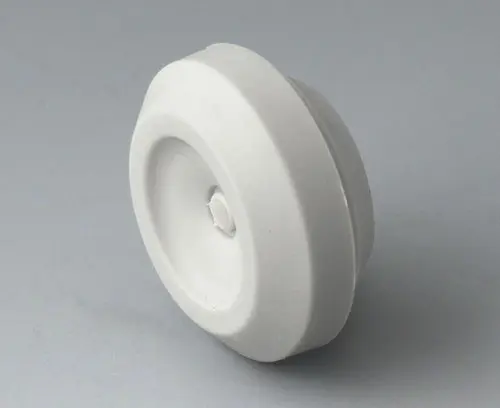

Cable grommet Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 0.5 - 3 mm and for cable diameters from 5 - 10 mm. Operating temperatures from -40°C to +100°C. Borehole ø 16.5 mm.

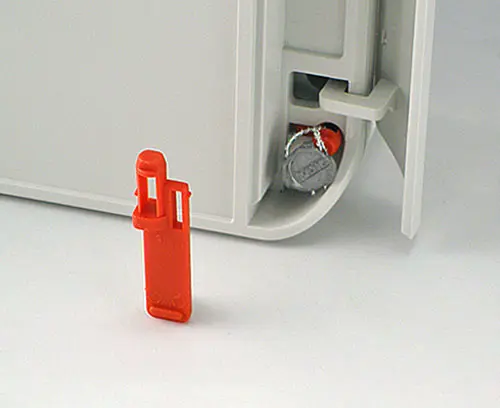

Security plug For use with lead tags.

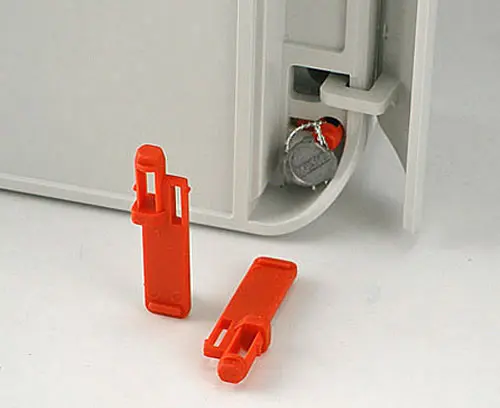

Set of security For use with lead tags.

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.

Self-tapping screws 3 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.

Self-tapping screw 3 x 8 mm (T10) Self-tapping screw with T10 Torx drive. For fastening components, boards and PCBs onto pillars.

Case feet When using the case for desktop applications.
